PNEG-1434 6", 8" and 10" Roof Augers 13
4. Assembly
Installing Intake Shaft

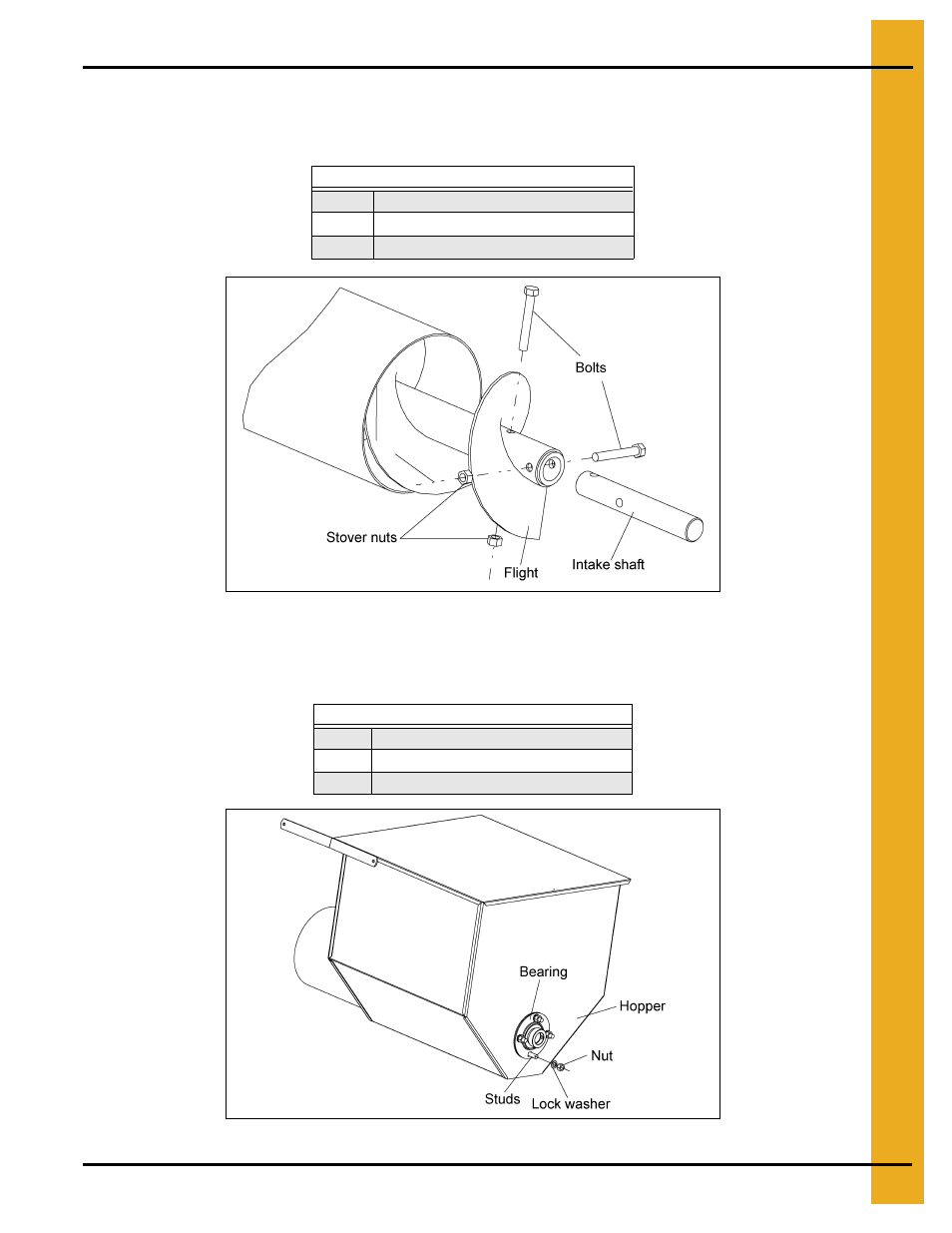

A. Begin by assembling the intake shaft to the flight using the required grade 8 bolts and stover nuts.
(See Chart below and See Figure 4A.)
Figure 4A
B. Next bolt the bearing with flangette to the studs on the hopper using the required lock washer
and nut. (See Chart below and See Figure 4B.)
Figure 4B
Flight Hardware
6" 3/8"-16 x 2" Grade 8 Hex Bolts
8" 7/16"-14 x 3" Grade 8 Hex Bolts
10" 1/2"-13 x 3-1/2" Grade 8 Hex Bolts
Hopper Bearing Nut
6" 5/16"-18 Hex Nut
8" 3/8"-16 Hex Nut
10" 1/2"-13 Hex Nut
