4. Assembly

PNEG-1434 6", 8" and 10" Roof Augers

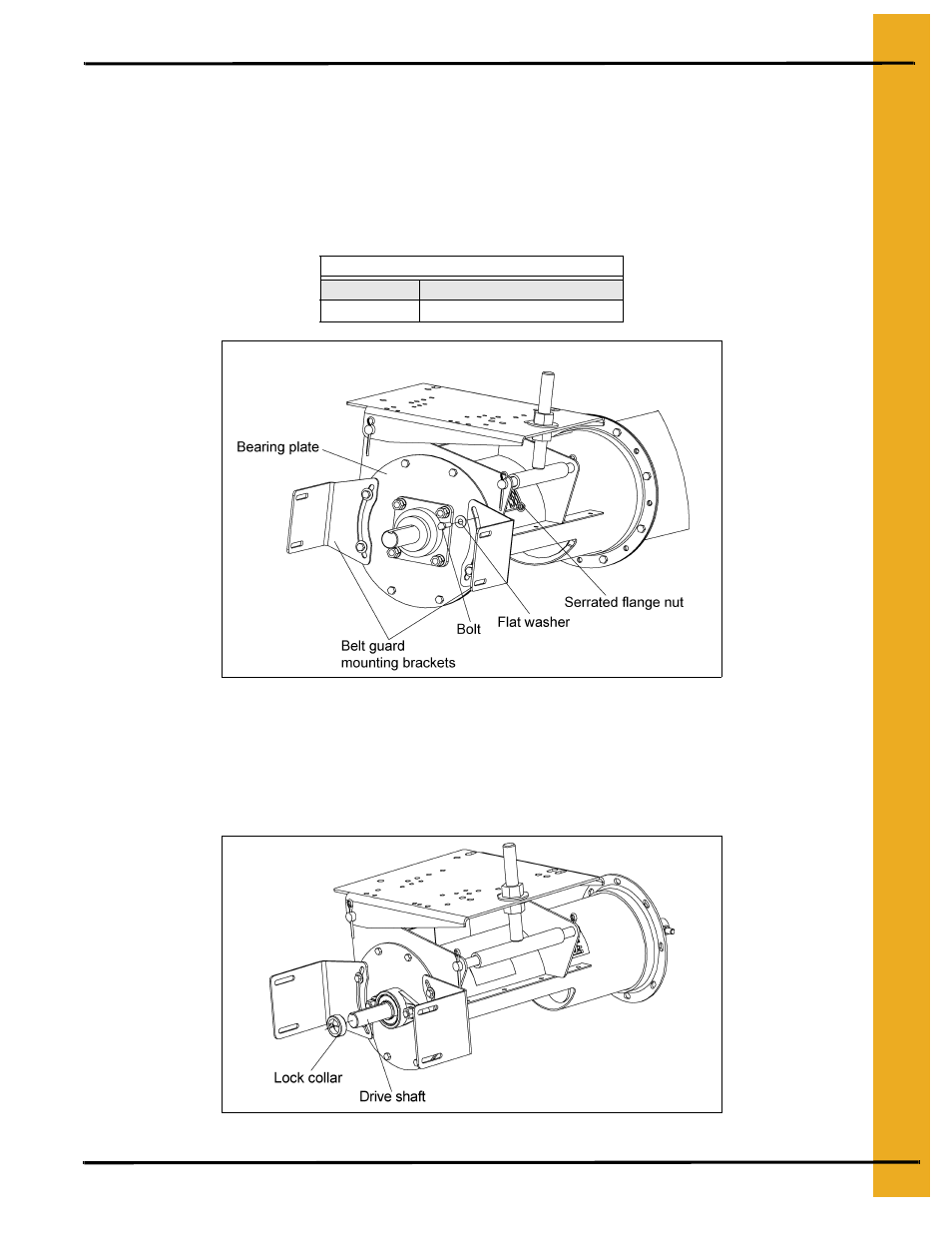

Installing the Belt Guard Brackets

A. Align the holes on the bearing plate with the slots on the belt guard mounting brackets.

B. Secure the brackets with proper bolts, flat washers, and serrated flange nuts.

and

NOTE: DO NOT tighten the bolts completely. The brackets will need to be rotated to align the slot in the

belt guard with the shafts on the motor and flight.

Figure 4M

Installing the Lock Collar

A. Slide the lock collar over the drive shaft, positioning it against the bearing. Do not tighten the lock

collar at this time as it will be tightened later in the assembly.

Figure 4N

Bearing Plate Bolts

6" and 8"

5/16"-18 x 1" Hex Bolt

10"

3/8"-16 x 1-1/4" Hex Bolt

for bolt size.)
