6. Control Boxes
84 PNEG-1404 Vision Series Model 2300 Portable Dryers

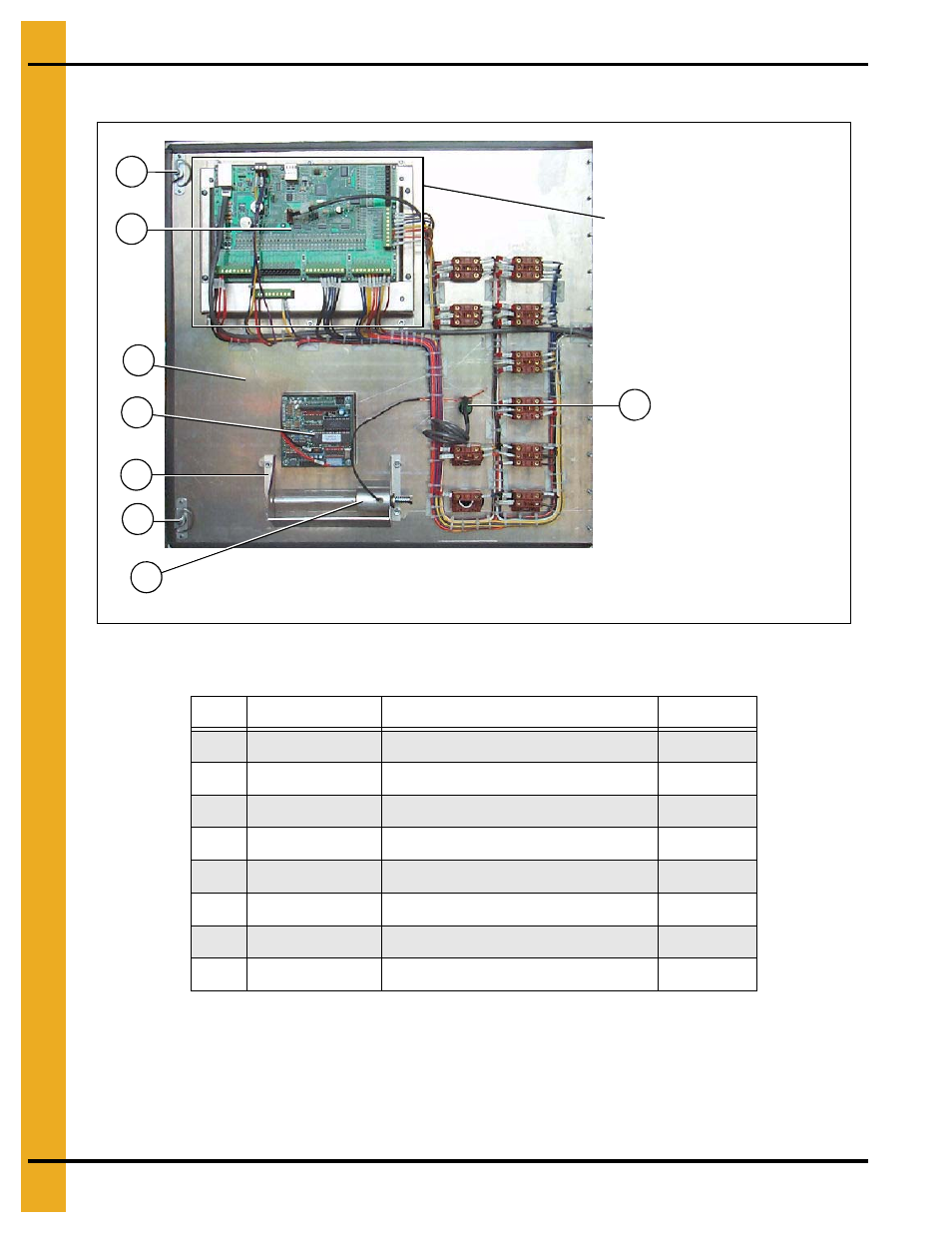

Control Box Switch Panel (Rear)
Figure 6D
Control Box Switch Panel (Rear) Parts List
Ref # Part # Description Circuit
1 TFH-2046 Spring Latch Southco w/ Black Knob Misc.
1a TF-1519 Latch, Southco Slotted Misc.
2 401-5794-5-1 Switch Mounting Plate 1 Fan Misc.
3 D03-0734PRNT GSI Moisture Control Printer Control
4 602E155BKT Take-Up Motor Support Bracket Misc.
5 602E155 Printer, Paper Take-Up Misc.
6 D03-0595 SCR Potentiometer 10K Control
7 D03-0723-C Touch Control Display I/O PCB Computer Control
A more detailed parts breakdown
of the display and computer
is shown
on Page 85 .
Vision control panel (rear)
1
1a
2
3
5
7
4
6
