2. Top Module
34 PNEG-1404 Vision Series Model 2300 Portable Dryers

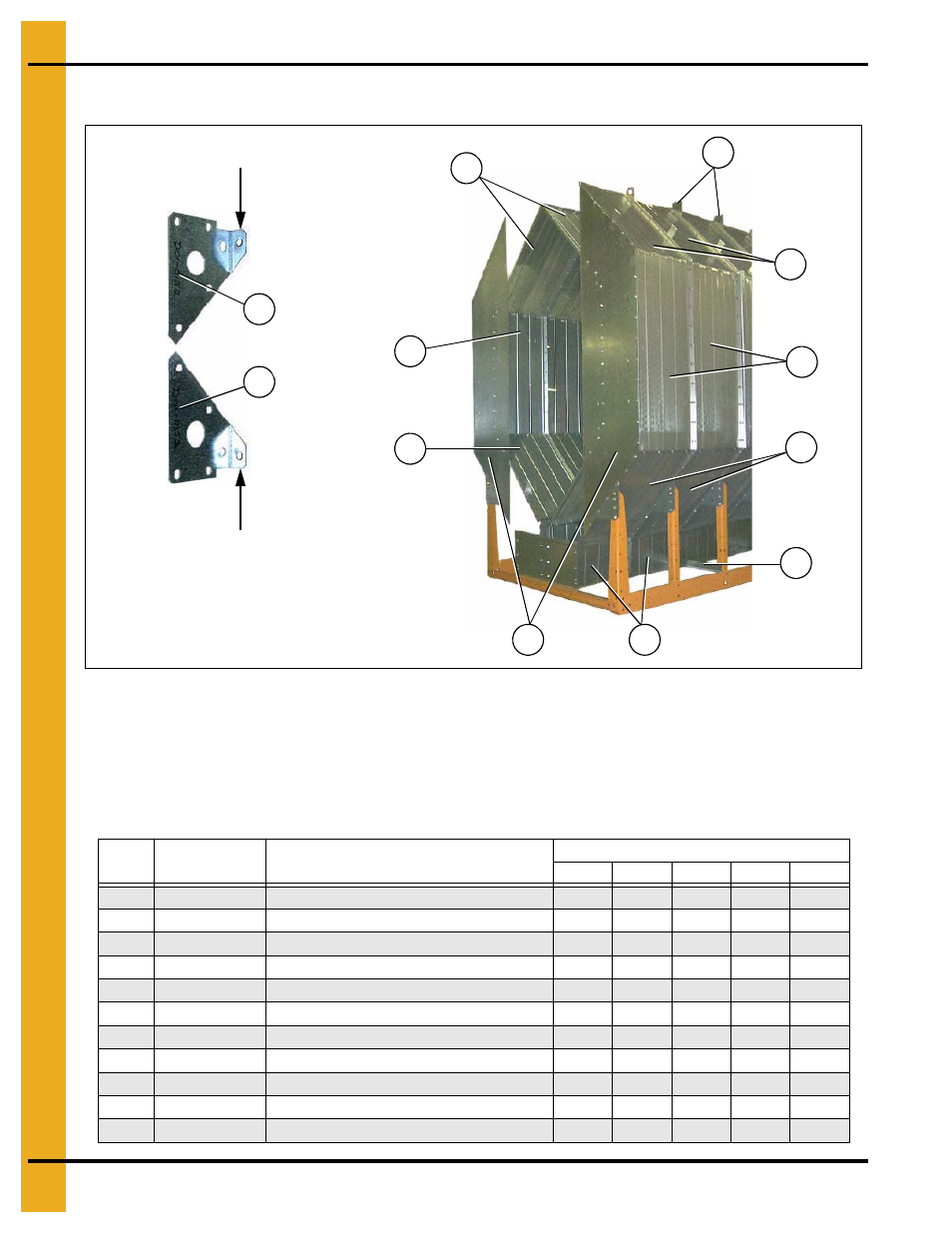

Inside (Plenum) Screens/Outside Screens
Figure 2E
* NOTE: Ref #4 is pointing to the top edge angle gusset. There are two (2) types of gusset on the dryer.
The photo left will help distinguish the difference between the two (2). The arrows are pointing to
a tab on the gusset that makes them different (tabs are “bent” up in photo). Ref #4a is used in
two (2) places only; 1) front right of dryer, 2) rear left of dryer, all others are Ref #4.
Inside (Plenum) Screens/Outside Screens Parts List
Ref # Part # Description
Qty
2314 2318 2320 2322 2326
1 D01-0126 Screen, Plenum Top, Gauge, 094 14 18 20 22 26
2 D31-0012 Screen, Plenum Wall, Gauge, 094 14 18 20 22 26
3 D01-0124 Screen, Plenum Bottom, Gauge, 094 14 18 20 22 26
4 D01-0152 L.H. Top Angle Gusset 12 16 18 20 24
4a D01-0153 R.H. Top Angle Gusset 2 2 2 2 2
5 D01-0127 Screen, Roof, Gauge, 094 14 18 20 22 26
6 D31-0013 Screen, Outside Wall, Gauge, 094 14 18 20 22 26
7 D01-0128 Screen, Hopper, Gauge, 094 14 18 20 22 26
8 D61-0019 Module Tie Brace 6 8 10 10 12
9 D61-0073 Screen, Connecting - Outer, Gauge, 094 14 18 20 22 24
10 D31-0307 Column End Panel 4 4 4 4 4
4
5
6
7
8
9 10
3
2
1
4a
4
*
