Chapter 7: Roof Assembly

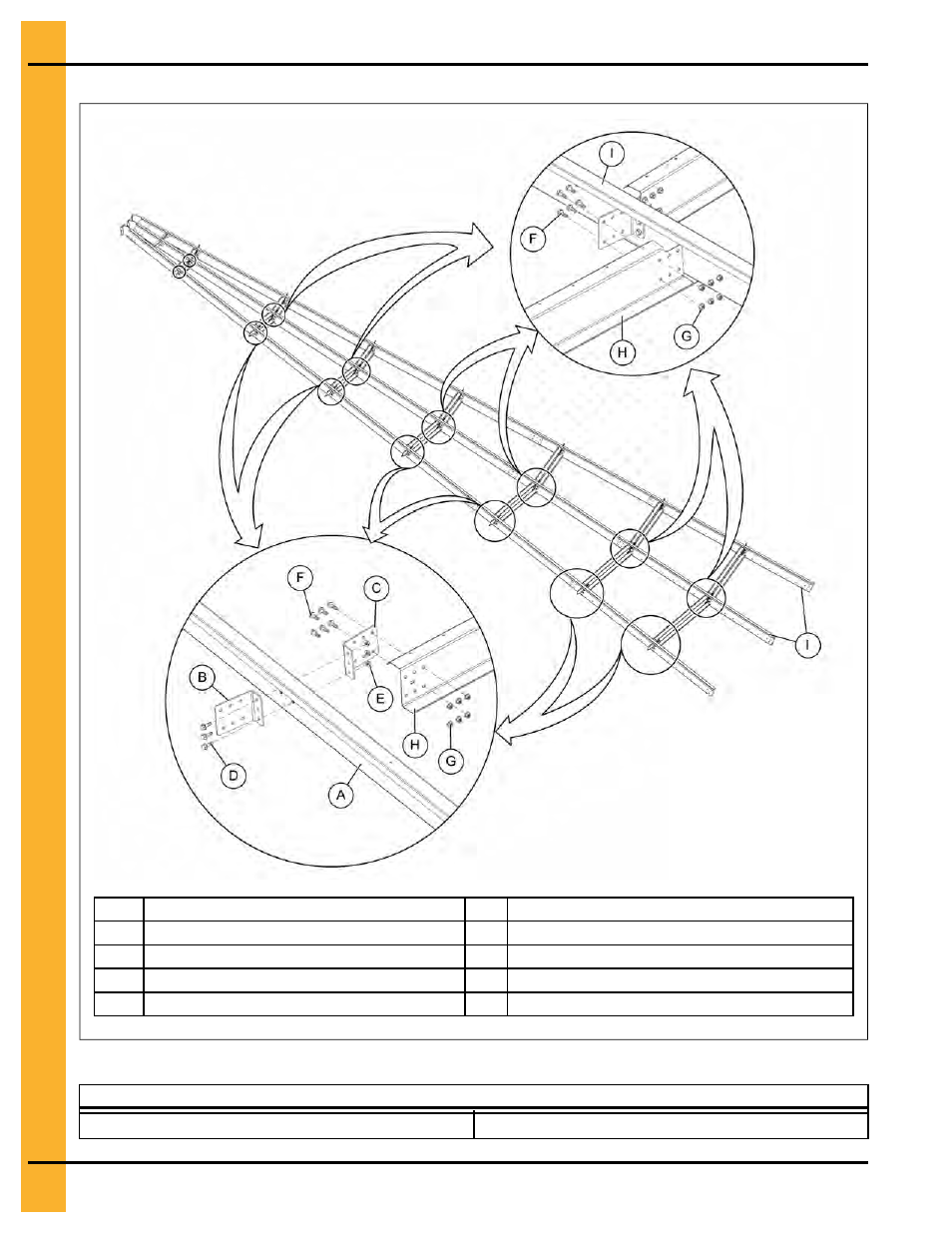

Figure 7-22 Double A-frame assembly exploded view
A Roof rafter (CTR-0446 and CTR-0452) F 1/2 x 1-3/4 in. flange bolt (S-10252)
B Left purlin clip (CTR-0099) G 1/2 in. flange nut (S-10253)
C Right purlin clip (CTR-0100) H Purlin
D 1/2 x 1-3/4 in. flange bolt (S-10252) I Assembled A-frame
E 1/2 in. flange nut (S-10253)
Weight of an Assembled Double A-frame
105 ft. Double A-frame
Approximate Weight 2060 lb (934 kg)
106 Pneg-4105A 105 Ft Diameter 40-Series Bin
