4. Inside Ladder Installation
PNEG-1802 Inside Ladder Instructions 47
Inside Ladder Standoff Bracket/Supports
Inside Ladder Standoff
Bracket Requirements
For the standoff brackets, field drill two (2)
3/8" diameter holes 18-3/4" apart directly in line
with the horizontal seam holes. Continue down the
sidewall with standoff brackets every 22". Refer
to

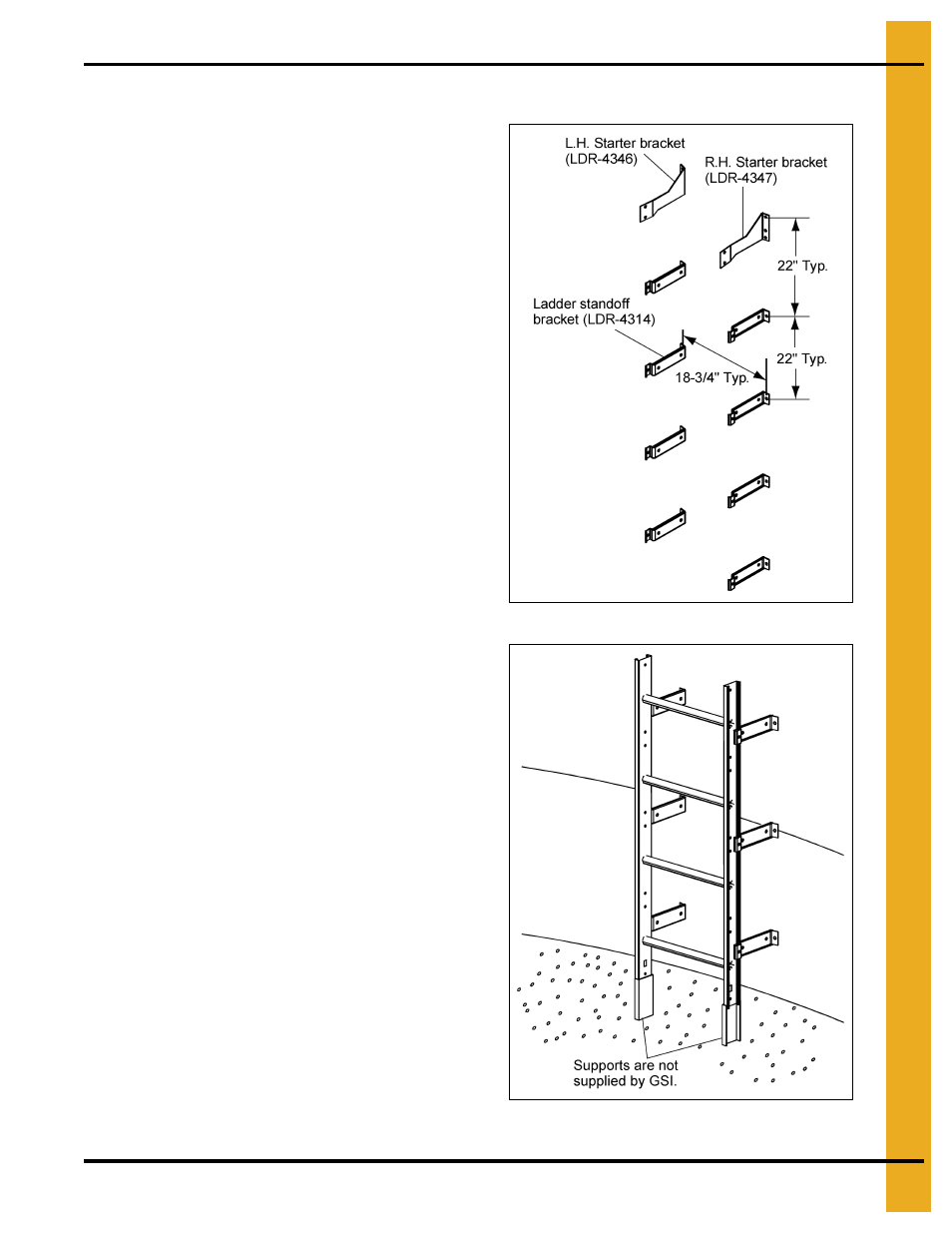

Figure 4AS .
Figure 4AS
Inside Ladder Supports
After completing the inside ladder, be sure to support
the bottom of the ladder to the concrete. Depending
on the actual installation, the amount of support
required may vary. Supports are not supplied by the
manufacturer. If a bin sweep is to be used in the grain
bin, other considerations may be necessary to assure
there is no interference with the equipment. Refer
to
Figure 4AT .
Figure 4AT
