4. Inside Ladder Installation
34
PNEG-1802 Inside Ladder Instructions

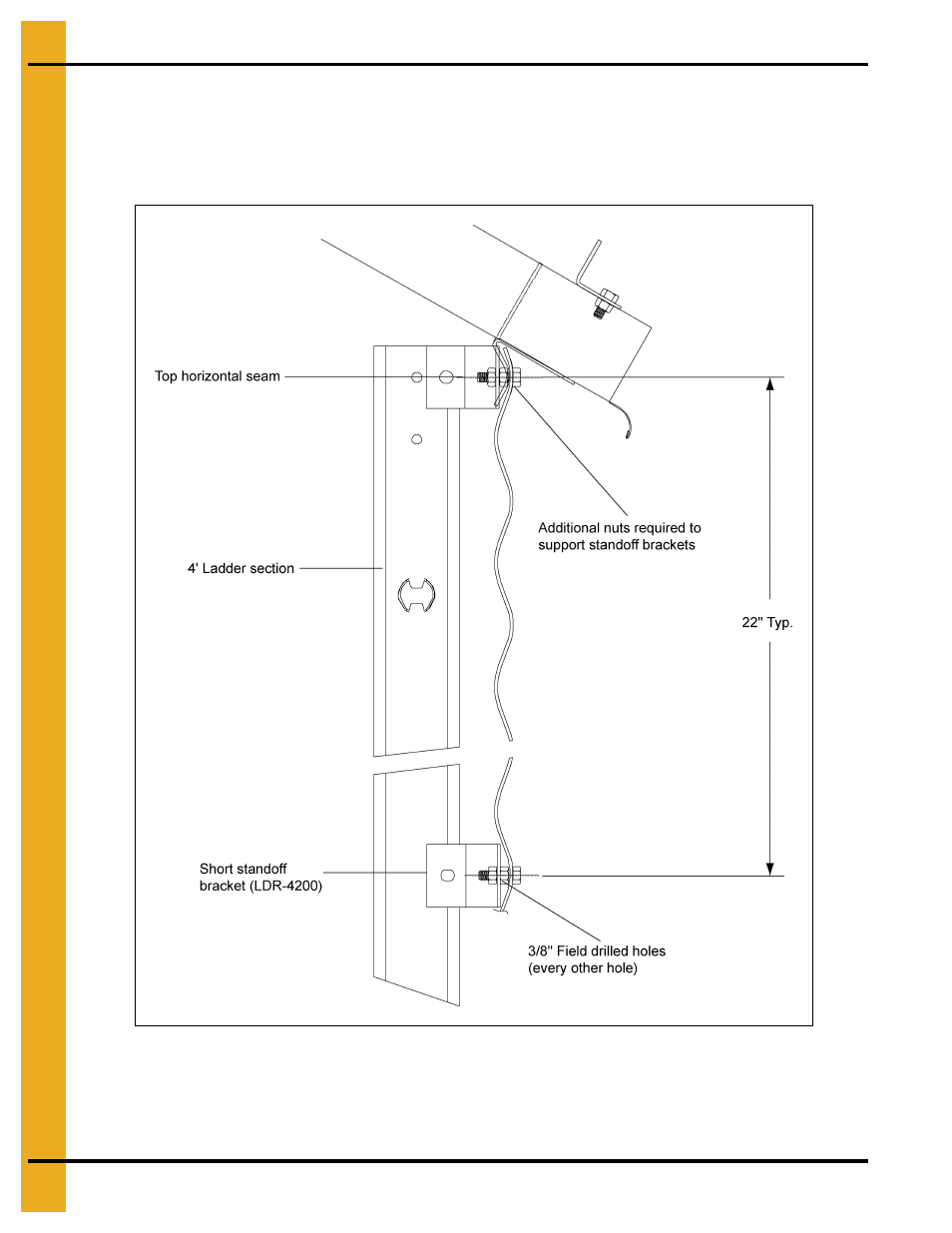

Inside Standoff Bracket and Ladder Placement
Refer to
and follow the correct dimensions as shown. The top standoff bracket should be in
line with the top horizontal seam. Check the 4' ladder section to make sure the ladder rung dimples are to
the top surface and attach to the standoff bracket. (See general detail information section on PNEG-1420.)
Now all standoff brackets must be installed every 22" and attached to each 4' section required.
Figure 4AC
