4. Inside Ladder Installation
44 PNEG-1802 Inside Ladder Instructions

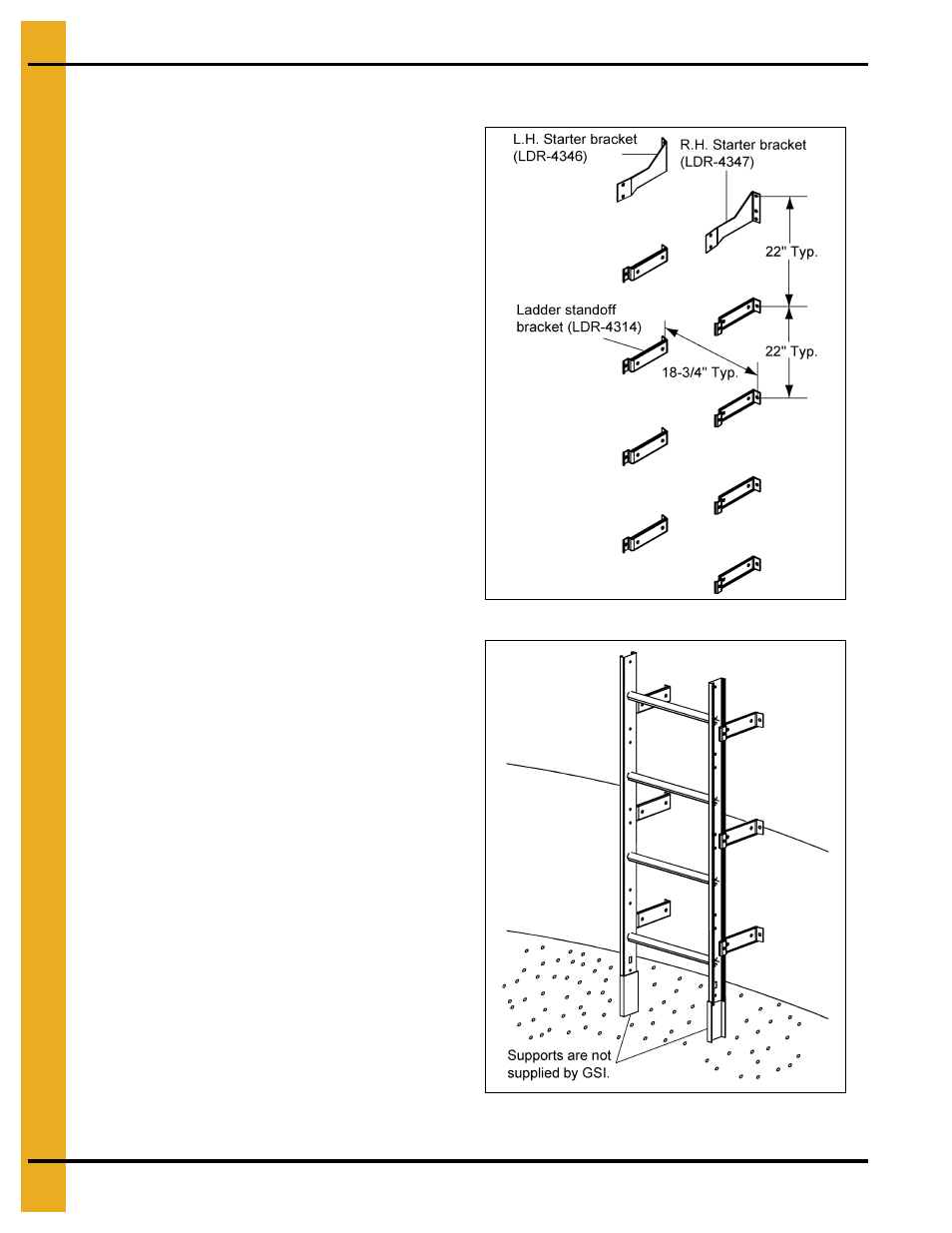

Inside Ladder Standoff Bracket/Supports
Inside Ladder Standoff
Bracket Requirements
For the standoff brackets, field drill two (2)
3/8" diameter holes 18-3/4" apart directly in line
with the horizontal seam holes. Continue down the
sidewall with standoff brackets every 22". Refer
to
Figure 4AO .
Figure 4AO
Inside Ladder Supports
After completing the inside ladder, be sure to
support the bottom of the ladder to the concrete.
Depending on the actual installation, the amount of
support required may vary. The supports are not
supplied by the manufacturer. If a bin sweep is to
be used in the grain bin, other considerations may
be necessary to assure there is no interference
with the equipment. Refer to
Figure 4AP .
Figure 4AP
