4. Inside Ladder Installation
20 PNEG-1802 Inside Ladder Instructions
Inside Ladder Standoff
Bracket Requirements
Field drilling will be necessary for the standoff
brackets located in the middle of the sidewall
sheet. Drill two (2) holes 3/8" diameter holes
directly in line with the horizontal seam holes
18-3/4" apart. Continue down the sidewall with
standoff brackets at every 16" spacing. Refer
to
Figure 4K .

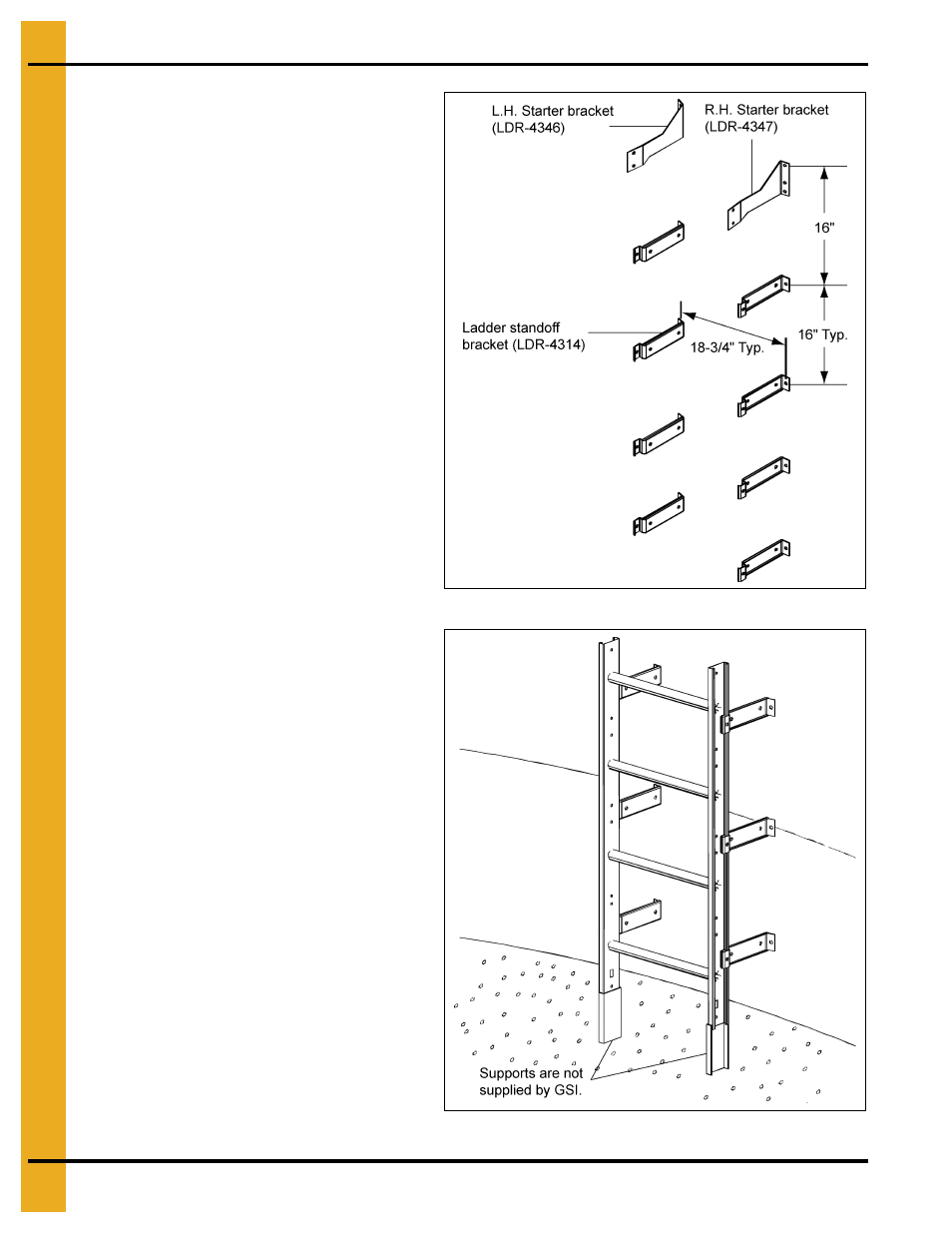

Figure 4K
Inside Ladder Supports
After completing the inside ladder, it will be
necessary to support the bottom of the ladder
to the concrete. Depending on the actual
installation, the amount of support may vary.
The supports are not supplied by the
manufacturer. If a bin sweep is to be used in
the grain bin, other considerations may be
necessary to assure there is no interference
with the equipment.
(See Figure 4L.)
Figure 4L
