4. Inside Ladder Installation
PNEG-1802 Inside Ladder Instructions 43
Inside Starter Bracket and Ladder Placement
Refer to Figure 4AN and follow the correct dimensions as shown. The ladder starter brackets must be
located in line with the horizontal seam. Check the 4' ladder section to make sure the ladder rung dimples
are to the top. Attach to the starter brackets using the hole located 1" from top of the ladder. It will also be
necessary to field drill a 3/8" hole on the ladder section for the starter bracket. Field drill this hole 2" below
the pre-drilled hole that is 1" below the top of the ladder.
(See Figure 4AN.) All standoff brackets must be
installed every 22" and attached to each 4' section required.
NOTE: Refer to general detail information section on PNEG-1451 for additional details for standoff bracket
to ladder assembly.

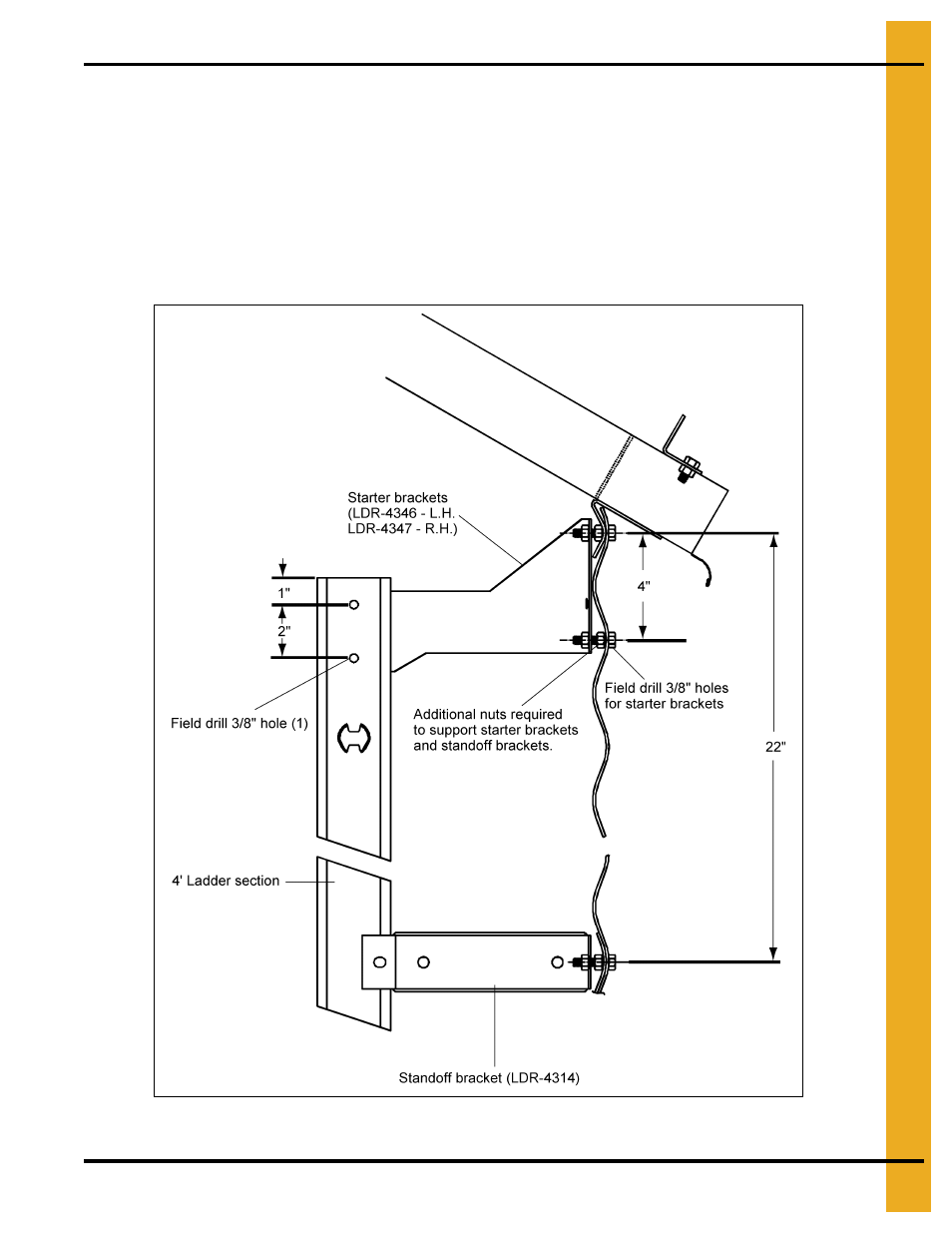

Figure 4AN Inside Starter Bracket and Ladder Placement
