4. Inside Ladder Installation
PNEG-1802 Inside Ladder Instructions 21
Inside Ladder Installation (for Stir-Ator Option)
Inside Ladder Placement
The inside ladder package for Stir-Ator option includes the ladders and double the amount of short
standoff brackets. Begin by positioning the ladder directly under the manhole roof panel as shown in
Figure 4M and install the top standoff bracket as shown in Figure 4N on Page 22 . Then, place the standoff
brackets every 16" vertically on the sidewall sheets using the horizontal seam holes for every other hole
location. Use 5/16" x 3/4" bin bolts to attach the standoff brackets to the sidewall of the grain bin.
NOTE: Refer to general detail information section on PNEG-1420 for additional details for standoff bracket
to ladder assembly.

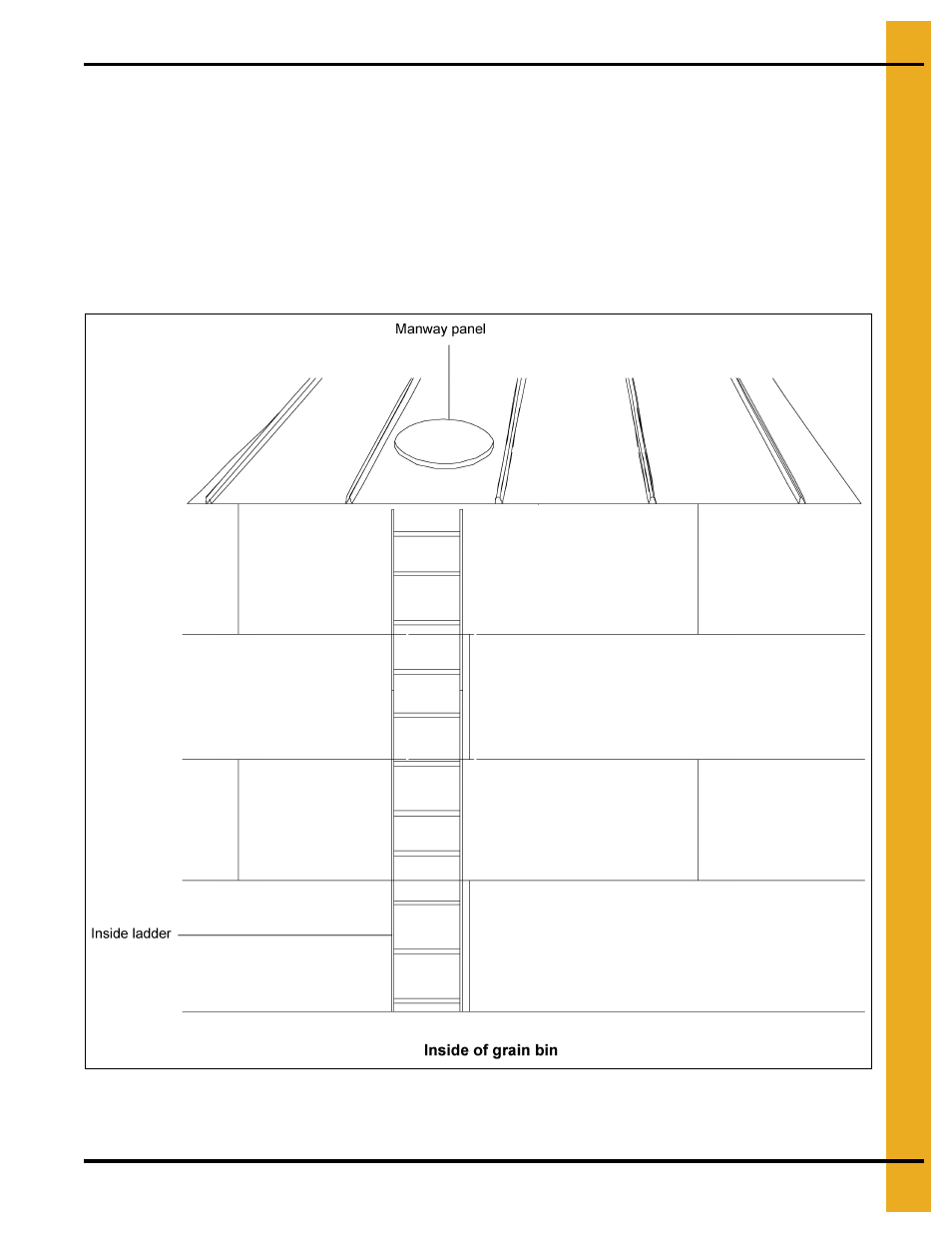

Figure 4M
