4. Inside Ladder Installation
36 PNEG-1802 Inside Ladder Instructions
2.66" Corrugated Commercial Hopper Tank 4-9 Rings
Inside Ladder Location
The inside ladder package includes the ladder, starter brackets and double the amount of standoff

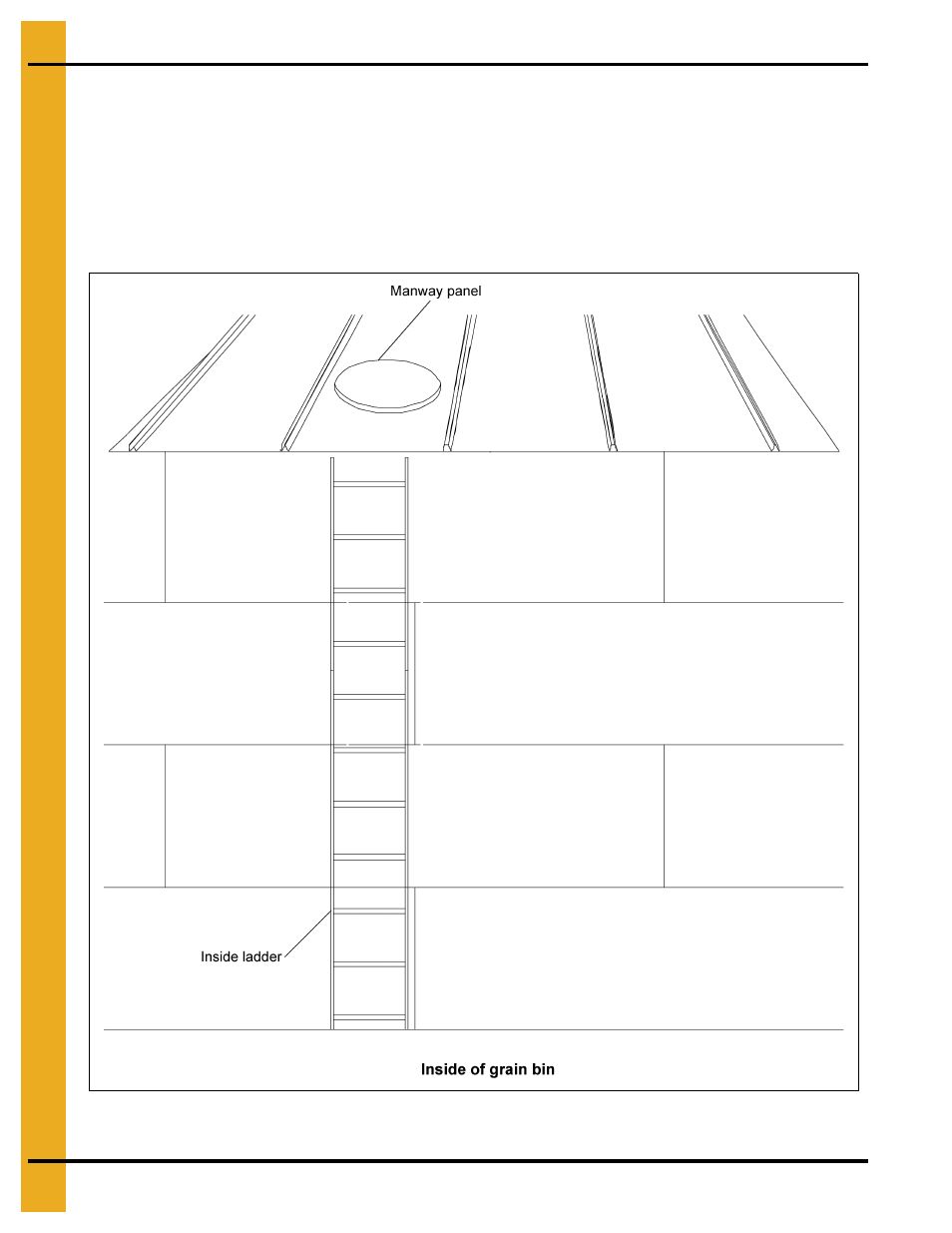

brackets. Position the ladder directly under the manhole roof panel as shown in
Figure 4AE and install the
starter brackets as shown in Figure 4AF on Page 37 . Place the standoff brackets every 16" vertically on
the sidewall sheets using the horizontal seam holes for every other hole location. Use 5/16" x 3/4" bin bolts
to attach the standoff brackets to the sidewall of the grain bin.
Figure 4AE
