7. Procedure

PNEG-1798 Tower and T-Series Dryers Vaporizer

7.3.6. Vaporizer piping (3/4" and 1-1/4") continues downward toward the window where the 2" burner

line exits the dryer. Make sure to anchor the piping at various locations to prevent piping from
moving or creating stress points on fittings due to the vertical hanging weight of this SCH 80 thick
walled pipe. U-bolts and uni-strut with clamps are normally used.

See Figure 7O,

Figure 7P below

and

Figure 7Q on Page 23

for various anchoring examples.

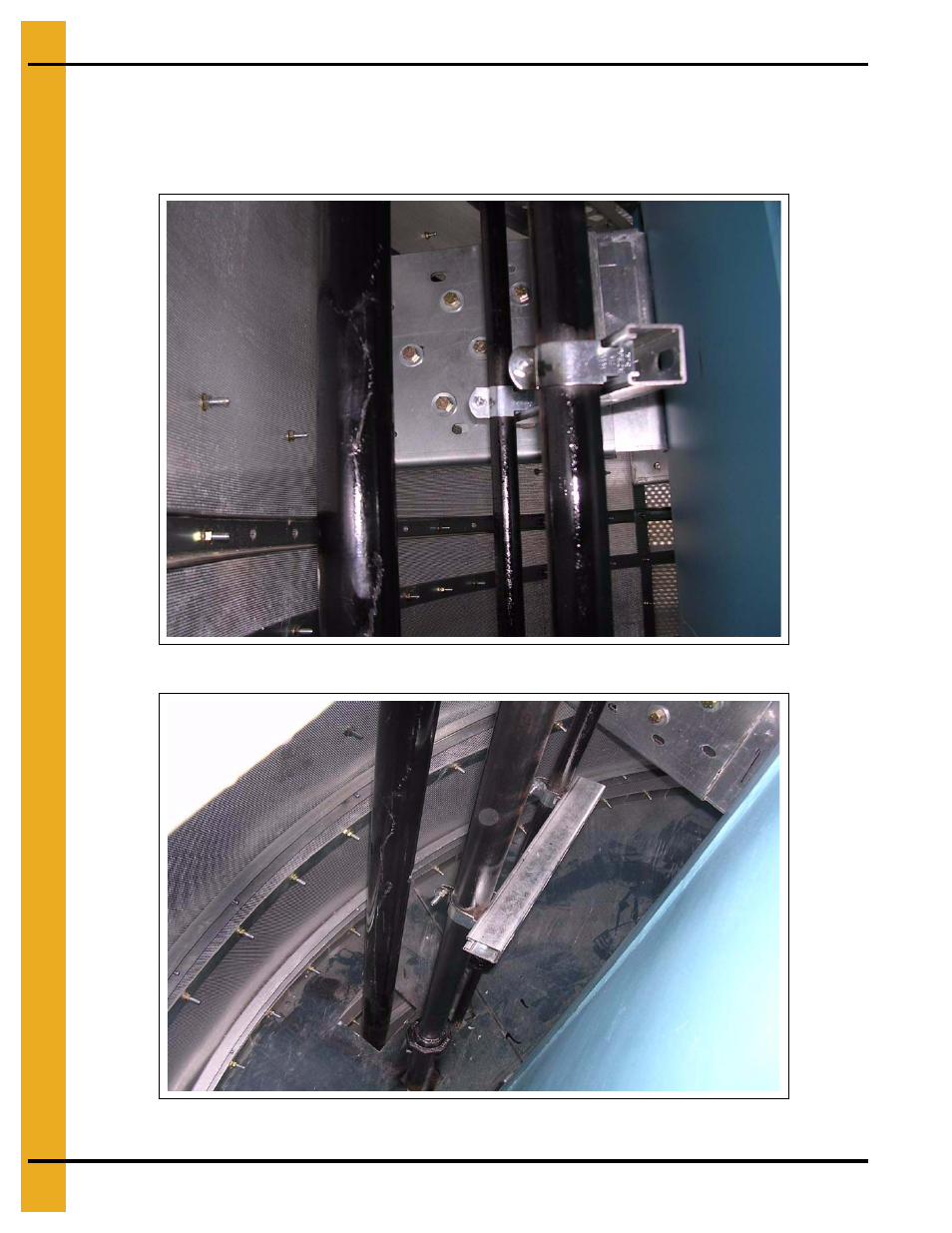

Figure 7O Uni-Strut and Clamps

Figure 7P
