Install the belt guard – Grain Systems Unload Augers PNEG-1583 User Manual
Page 23
4. Installation
PNEG-1583 10" Commercial Replacement Drive Kit 23
Install the Belt Guard
1. With the belts properly tensioned, remove the bottom belt guard cover.
2. Slip the belt guard down over the motor and drive sheaves, enclosing the drive belts.
3. Bolt the belt guard loosely to the belt guard brackets with four (4) 3/8'' x 1'' flange bolts.
4. Center the belt guard slot with the motor shaft and the auger drive shaft. Make sure the belt guard
DOES NOT contact the pulleys, belts, or bearing, and tighten the belt guard to the belt guard
mounting bracket(s).
5. Once the belt guard is secured, slide the bottom belt guard cover back into place and secure it
with the 3/8'' x 1'' flange bolt previously removed.

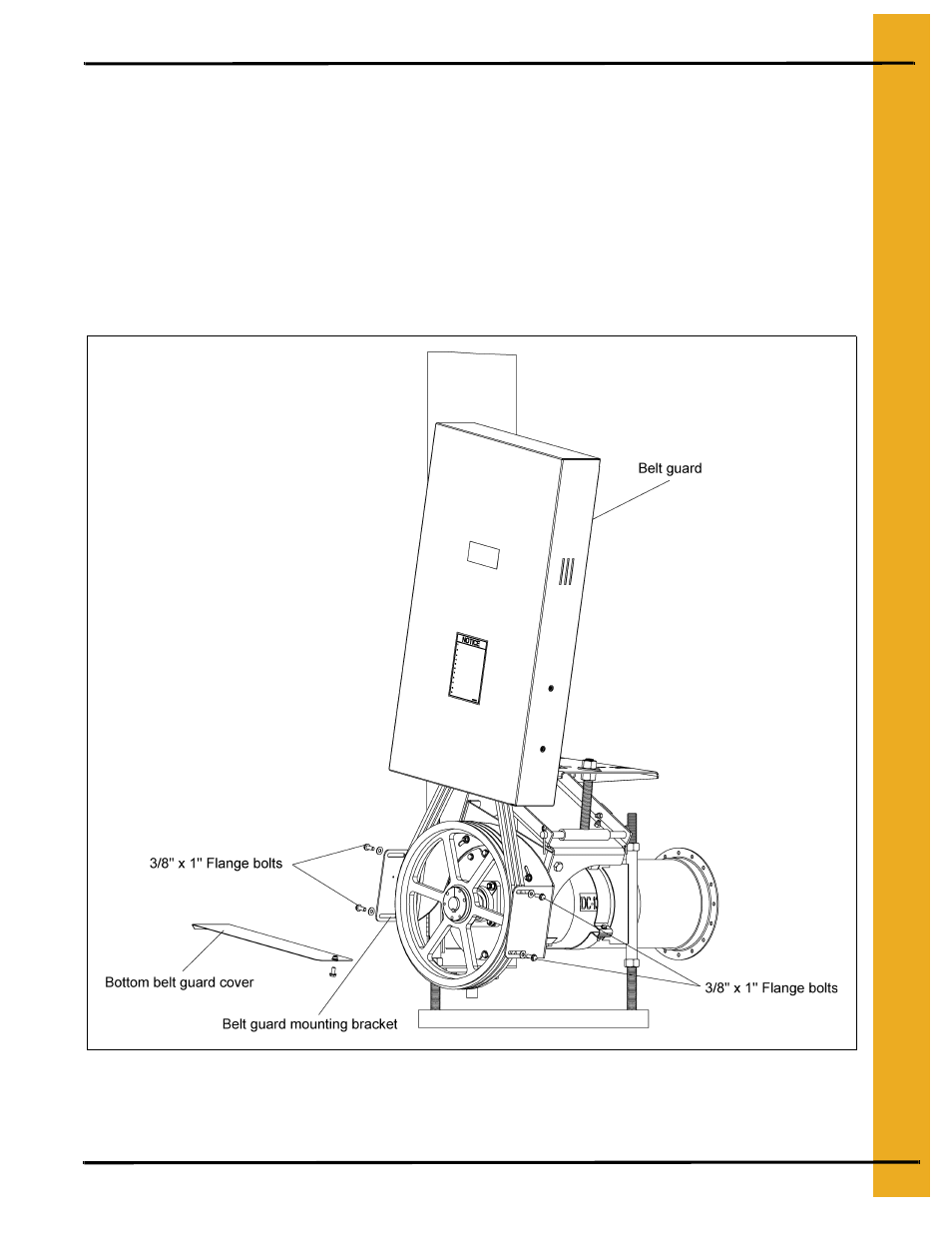

Figure 4V
