10" Commercial Replacement Drive Kit

4. Installation

5. Remove the motor mount assembly.

6. Unbolt the four (4) 1/2'' x 1'' hex bolts, lock washers, and hex nuts, and remove the existing belt

guard brackets and motor mount sides.

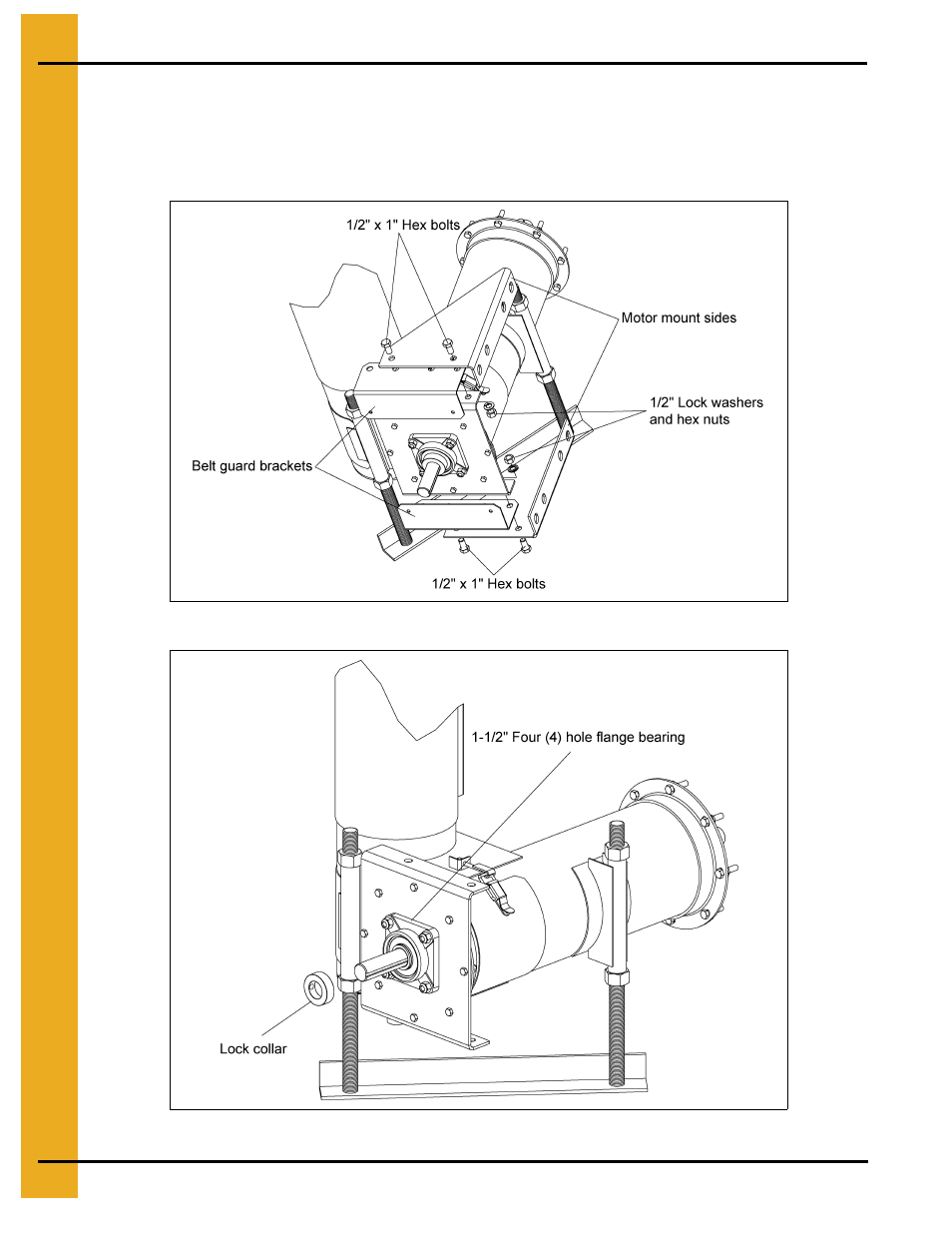

(See Figure 4B.)

7. Loosen and remove the lock collar on the 1-1/2'' four (4) hole flange bearing.

(See Figure 4C.)

Figure 4B

Figure 4C
