10" Commercial Replacement Drive Kit

4. Installation

Assemble the Motor Mount Plate to the New Head Plate

1. Position the motor mount plate over the new head plate so that the motor mount plate is almost

flush with the new head plate.

(See Figure 4F.)

2. Bolt the motor mount plate to the head plate using four (4) 5/8" x 1-1/2" hex bolts and

nylock nuts.

(See Figure 4G.)

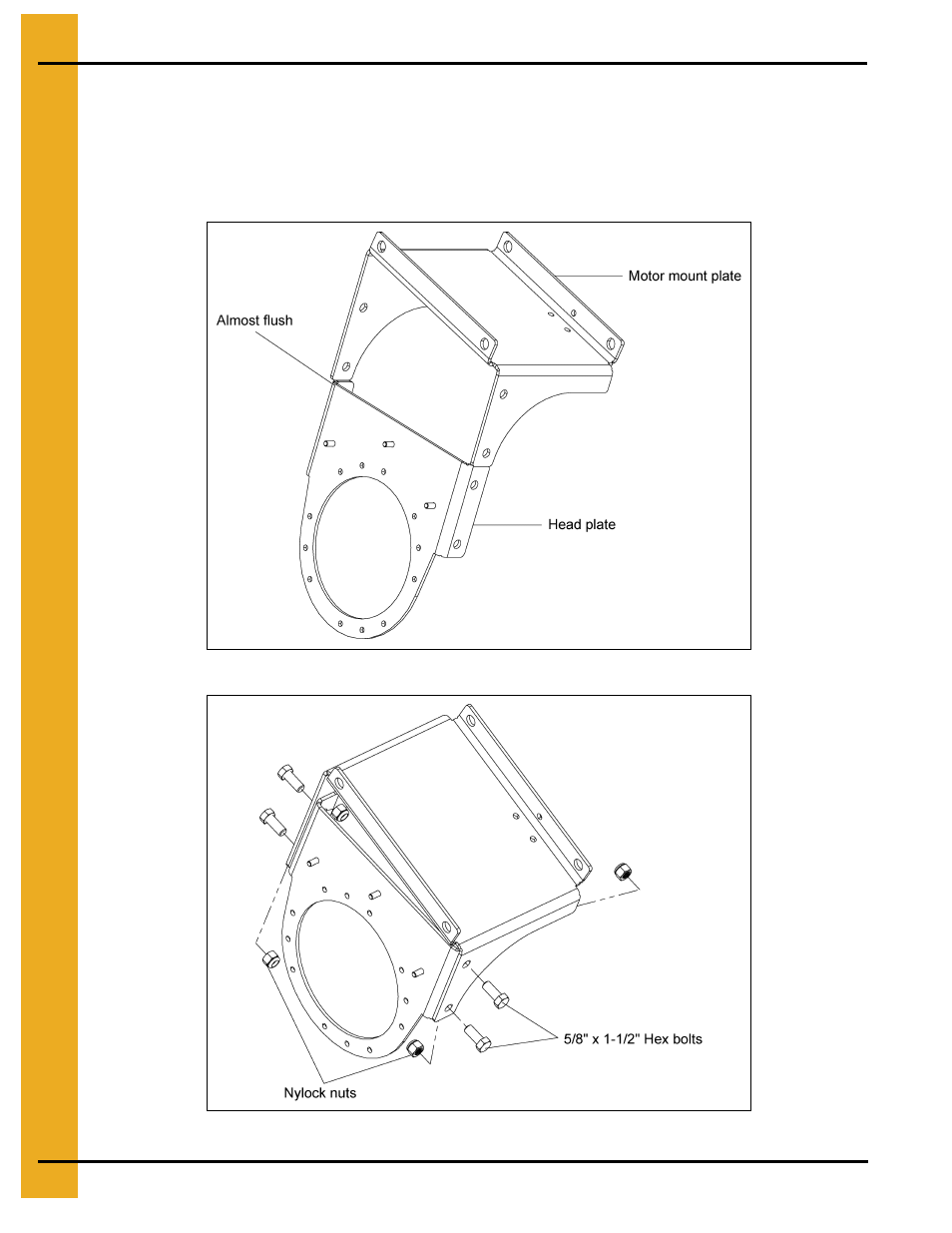

Figure 4F

Figure 4G
