4. Installation

PNEG-1583 10" Commercial Replacement Drive Kit 13

8. Remove the horizontal head plate from the vertical auger by removing the eight (8) 3/8'' x 1'' hex

bolts, flat washers, lock washers and hex nuts.

(See Figure 4D.)

9. Unbolt and remove the 1-1/2'' four (4) hole flange bearing. Where possible, this bearing will be

reused with the new horizontal drive parts.

(See Figure 4E.)

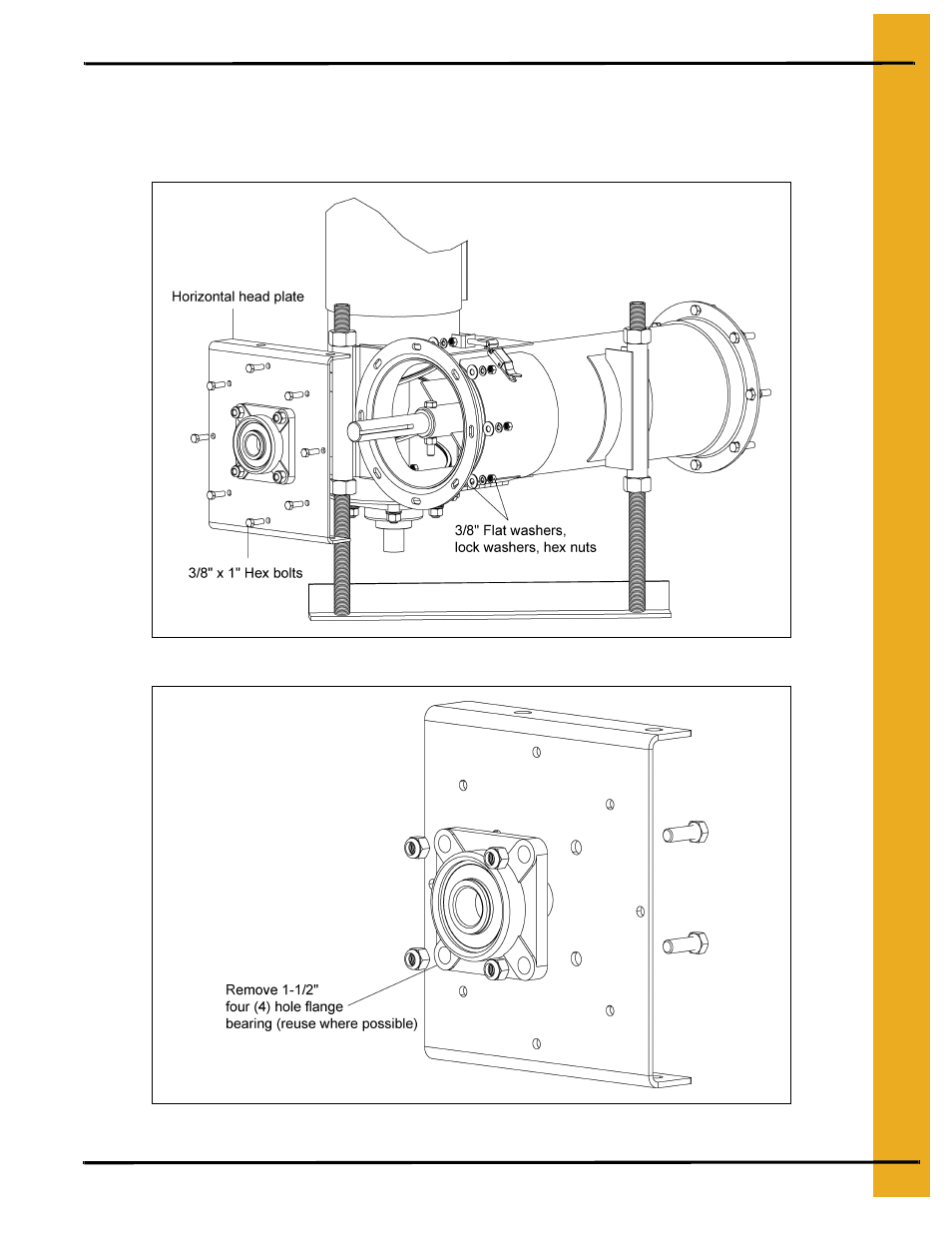

Figure 4D

Figure 4E
