20 PNEG-1583 10" Commercial Replacement Drive Kit
4. Installation
Install the Motor Plate
1. Thread one (1) of the motor mount adjustment nuts and one (1) motor mount adjustment washer
approximately 3/4 of the way down the motor mount adjuster’s threaded rod.
2. Once the nut and washer are in place, slip the motor plate over the adjuster and align its pivot
holes with the top pivot holes on the motor mount plate. (See Figure 4R.)

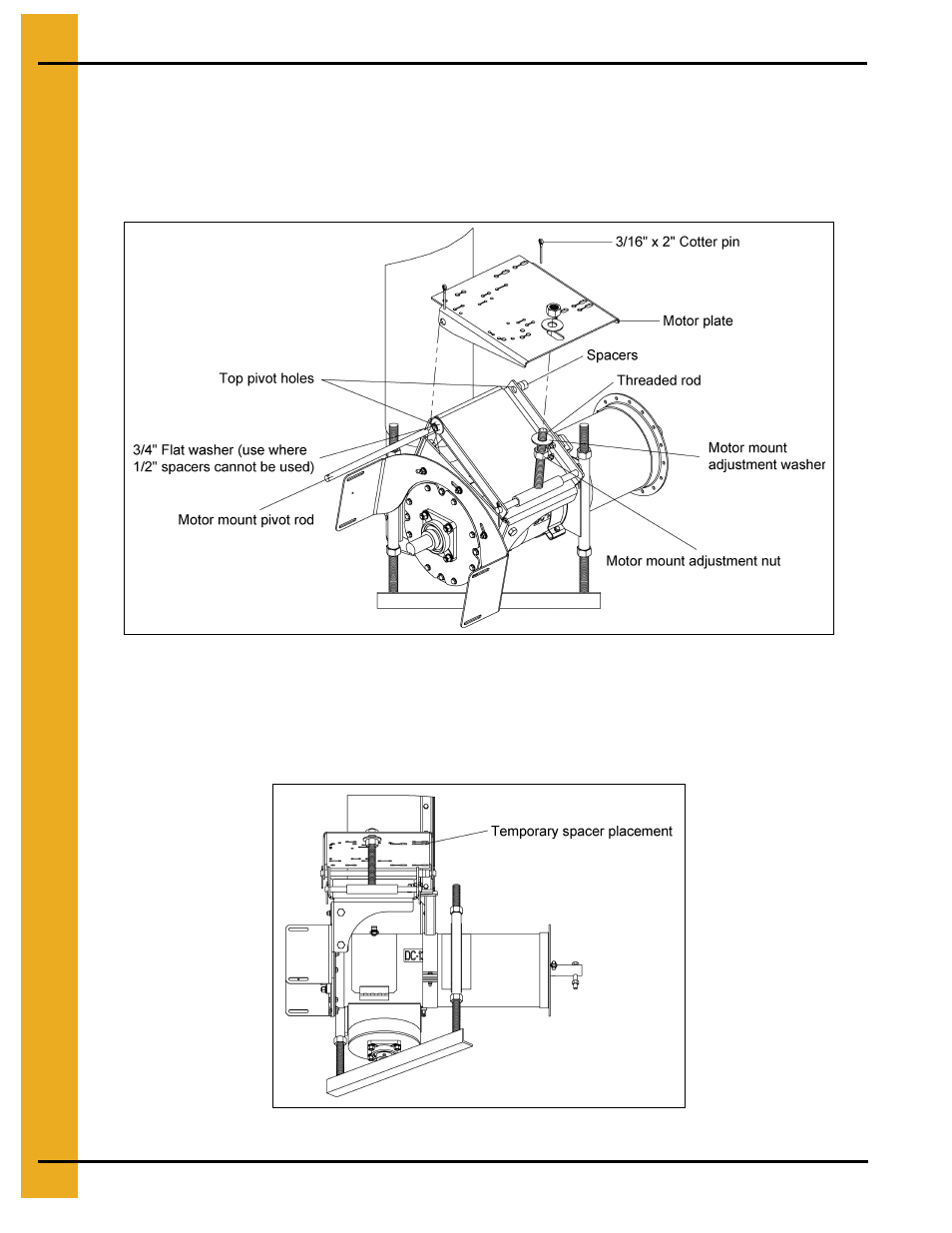

Figure 4R
3. Slide the motor mount pivot rod through the pivot holes on the motor plate and motor mount plate.
Insert the 3/4'' flat washer between the motor plate and the motor mount plate for the front pivot hole.
4. When the pivot rod begins to extend through the back pivot hole on the motor mount plate, install
the spacers BETWEEN it and the inner face of the motor plate. (See Figure 4S.)
Figure 4S
