4. Installation

PNEG-1583 10" Commercial Replacement Drive Kit 15

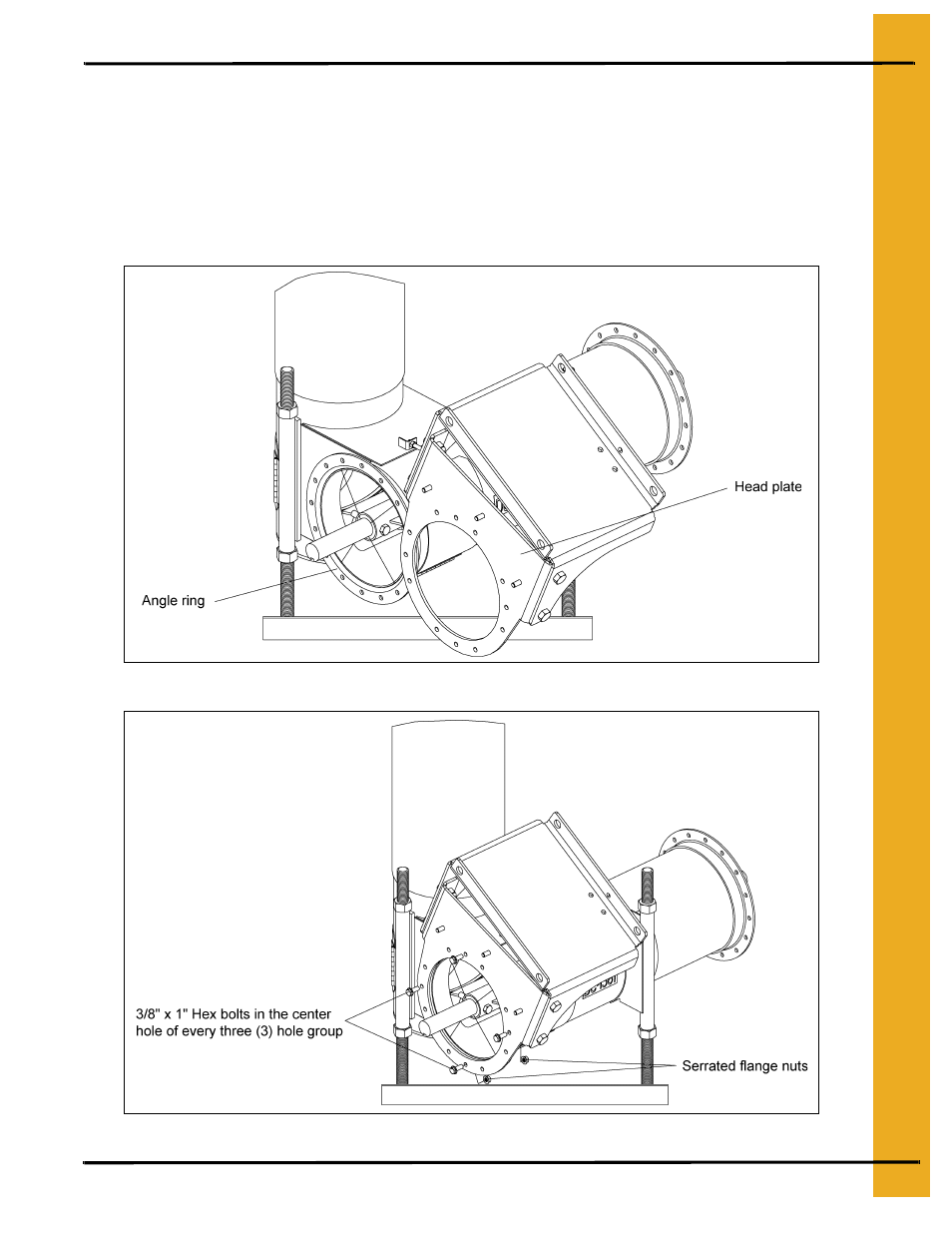

Install the Head Plate Assembly to the Auger

1. Place the head plate assembly against the angle ring on the horizontal tube.

2. Rotate the head plate assembly so that the side of the motor mount plate is as close as possible

to the vertical connecting band, while making sure that the mounting holes in the head plate still
align with the mounting holes in the angle ring.

(See Figure 4H.)

3. Bolt the head plate assembly to the angle ring on the horizontal tube using four (4) 3/8'' x 1''

hex bolts and serrated flange nuts. Use center hole in every three (3) hole group.

(See Figure 4I.)

Figure 4H

Figure 4I
