Rough Country 1120 - Manual

HIGH CLEARANCE SKID PLATE FOR
97-02 AUTOMATIC / 6CYL JEEP TJ
92112000
Please read Information below!!
This kit is intended for use on 97-02 TJ Jeep models equipped with 6cyl / Automatics only!!! For all other
models, part # 1126 will be used.
Motor mount kit Part # 1156 & 1 1/4” Body Lift Part # 1157 is needed to install this high clearance transfer
case skid plate. Failure to install these kits could result in damage to the vehicle created by lack of clearance
between the motor / transmission to the body. Rough Country insists installing these kits before the high
clearance skid plate is installed to gain clearance and avoid damage to components.
Please note if this skid plate is used with Rough Country’s Long arm kit, the skid plate will install with the
1/2” x 2 1/2” bolts supplied. If installing without the Rough Country Long arm kit, the 1/2” x 1 1/2” bolts will
be used.
Please read all the instructions before beginning the installation. Check the kit hardware against the kit contents. Be
sure you have all the needed parts and understand where they go. Also please review the tools needed list and
make sure you have needed tools. If you have any questions please call us at 800-222-7023.
TOOLS NEEDED:
13mm Socket / Wrench
3/4” Socket / Wrench OR
18mm Socket / Wrench
9/16” Socket
TORQUE SPECS:
Size Grade 5 Grade 8
3/8” 30 ft/lbs 35 ft/lbs
1/2” 65 ft/lbs 90 ft/lbs
9/16” 95 ft/lbs 130 ft/lbs
INSTALLATION INSTRUCTIONS

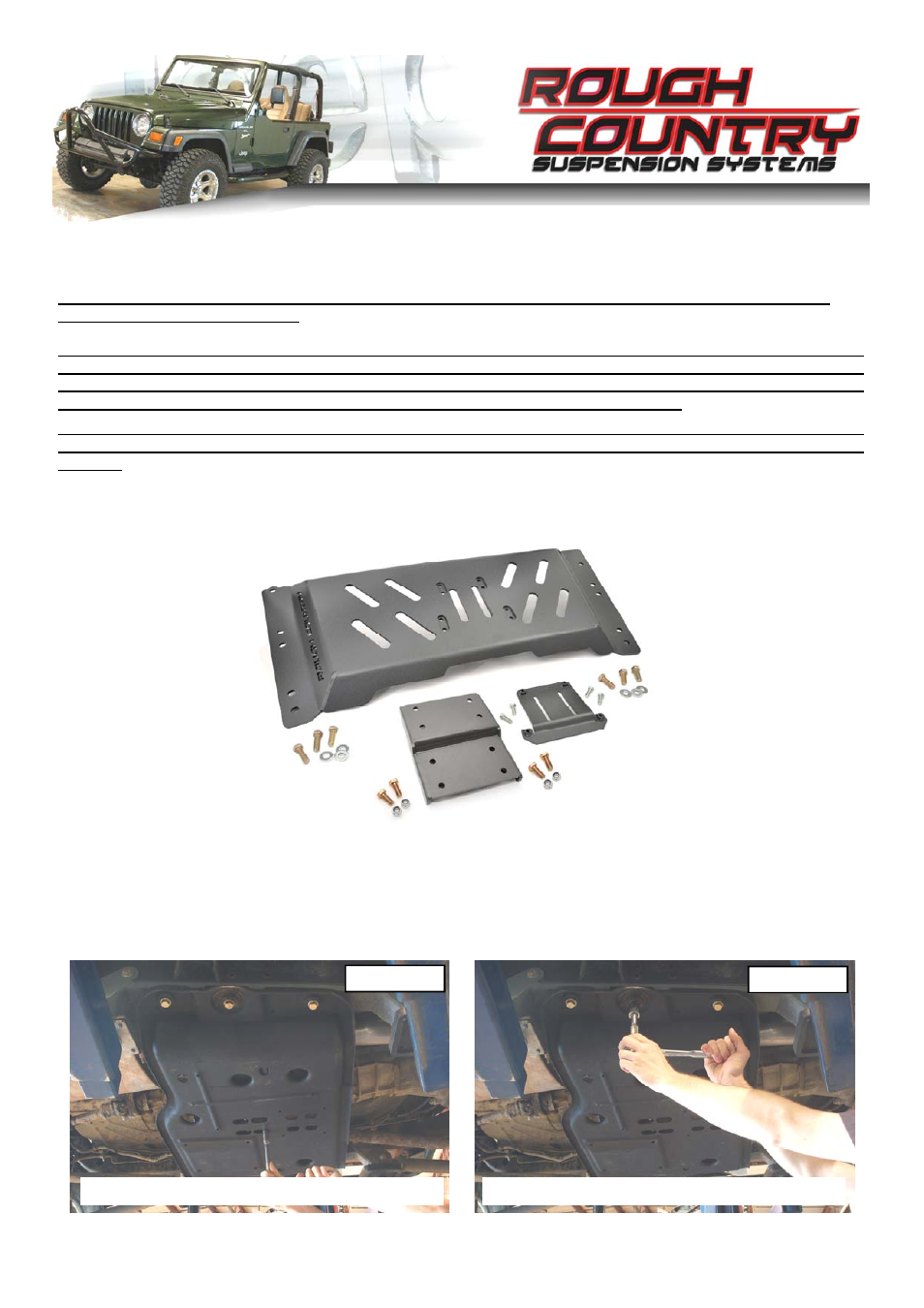

PHOTO 1 PHOTO 2
REMOVE THE TRANSMISSION NUTS REMOVE THE FRAME RAIL BOLTS
1. After the motor mount kit and 1 1/4” Body lift is installed, proceed to high clearance skid plate installation.
2. Remove the transmission hardware that secures the transmission to the stock skid plate. See Photo 1. Retain the
stock hardware.
3. Make sure to support the transmission and transfer case with a floor jack or jack stand.
4. Remove the skid plate from the frame rail as shown in Photo 2 using a 3/4” wrench
5. Lower the transfer case skid plate down and remove from the vehicle.
KIT CONTENTS:
1-Skid Plate
1-Transmission Mount
1-Skid Plate Bracket
1-Bag Containing:
4-3/8” x 1” Bolts
6-1/2” x 1 1/2” Bolts
6-1/2’ x 2 1/2” Bolts
6-1/2” Flat Washers
4-7/16” x 1” Bolts
4-7/16” Lock Nuts
