97-06 JEEP TJ 2” REAR BUMPSTOP EXTENSION
Thank you for choosing Rough Country for all your suspension needs.
Rough Country recommends a certified technician install this system. In addition to these instructions, profes-
sional knowledge of disassemble/reassembly procedures as well as post installation checks must be known.
Attempts to install this system without this knowledge and expertise may jeopardize the integrity and/or operat-
ing safety of the vehicle.
Please read instructions before beginning installation. Check the kit hardware against the parts list on this page.
Be sure you have all needed parts and know where they go. Also please review tools needed list and make
sure you have needed tools.
Kit Contents
2-Bumpstop Spacers
1-Poly Bag Containing:
2-10mm 80mm bolts
2-10mm Washers
92109300
Tools Needed
Jack
Jack Stands
15mm Socket / Wrench
18mm Socket / Wrench
Torque Specs
Size Grade 5 Grade 8
5/16” 15 ft/lbs 20 ft/lbs
3/8” 30 ft/lbs 35 ft/lbs
7/16” 45 ft/lbs 60 ft/lbs
1/2” 65 ft/lbs 90 ft/lbs
9/16” 95 ft/lbs 130 ft/lbs
5/8” 135 ft/lbs 175 ft/lbs
3/4” 185 ft/lbs 280 ft/lbs
Installation Instructions
1. Jack up the rear of the vehicle and support the vehicle with jack stands, so that the rear wheels are off the
ground. Chock front wheels.
2. Remove the rear tires/wheels , using a 19mm deep well socket
3. Using a 17mm wrench and 17mm socket, remove the lower sway bar bolt. Retain hardware for later use.
4. Remove the factory shock absorbers if installed using a 18mm & 15mm Socket /wrench.
5. Push down on the axle to allow enough room for stock coil spring to be removed. Remove the stock coil
spring.

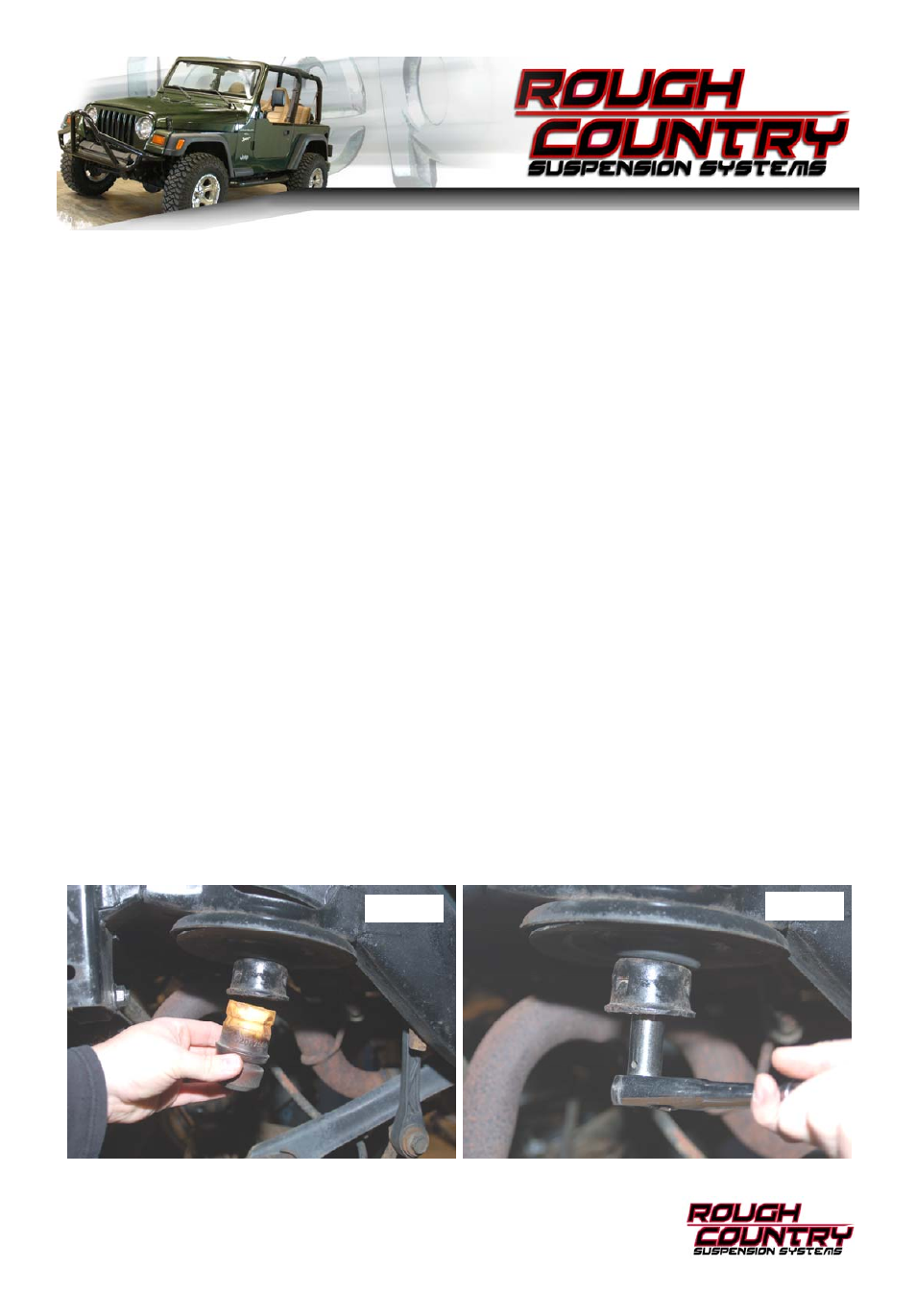

6. Remove the factory bump stop from the metal bump stop cup. See Photo 1.
7. Using a 15mm socket unbolt the bump stop cup. See Photo 2.
8. Install the coil spring spacer over the bump stop pocket and up into the mount, with the lip of the spacer
pointing down.
Photo 1 Photo 2
