Rough Country 208 - Manual (Page 2)

1264Box1
Front Cross Member
Rear Cross Member
1264Box3
Dr Knuckle
Pass Knuckle
1208Box1
Front Strut Spacers
Driver Diff Bracket
Pass Diff Bracket
Skid Plate
Sway Bar Drop Bracket
CV Spacers
Front Brake Line Brackets
3/8 Stud Bag
1264Bag1
1264Bag2
1208Box2
Rear 3” Spring Spacers
Rear Spacer Washers
Driver Rear Shock Bracket
Pass Rear Shock Bracket
Sway Bar Links
Track Bar Bracket
201SBag
1208Bag2

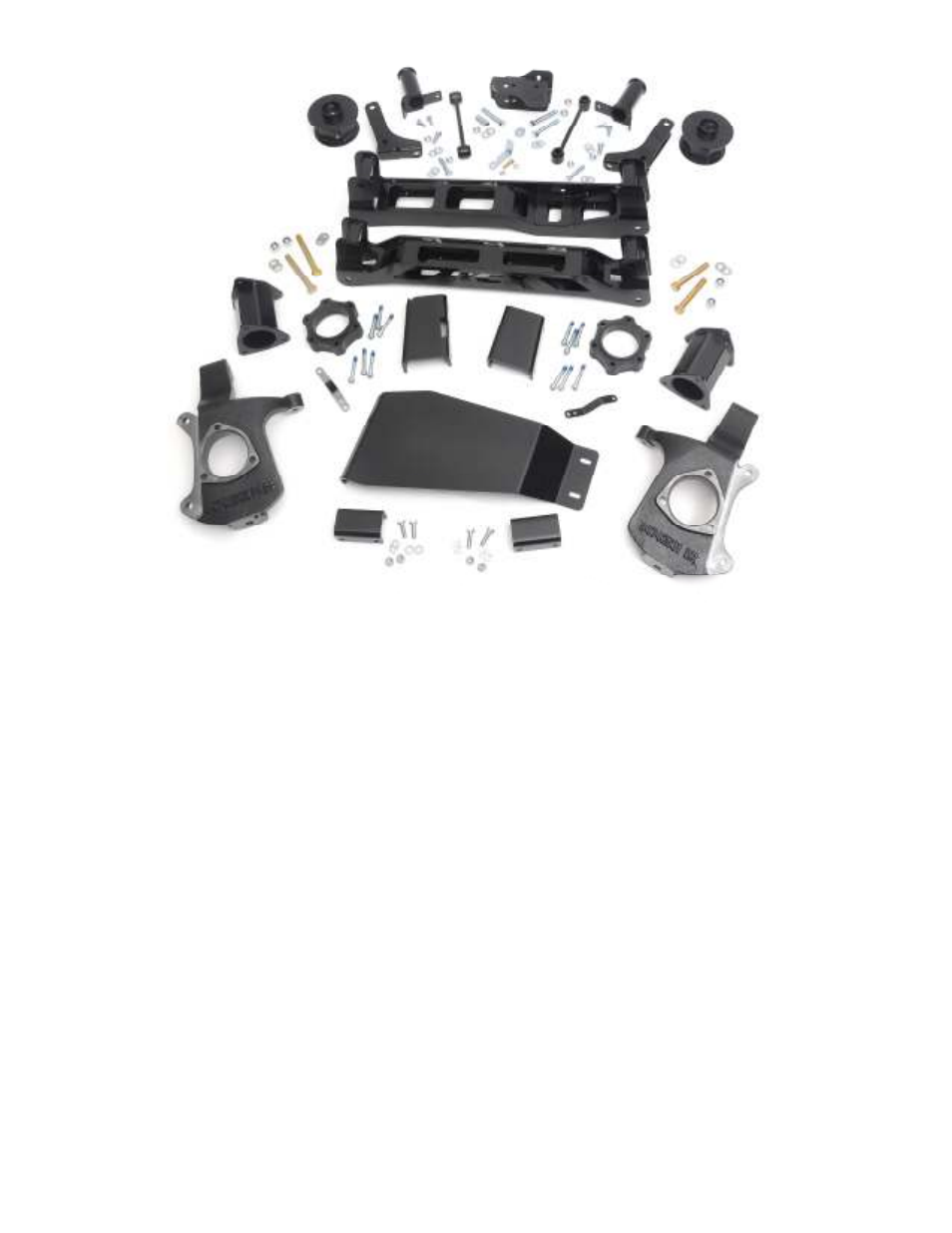

KIT COMPONENTS
Skid Plate Installation
3/8” x 1” Bolt (4)
3/8” Lock Washer (4)
3/8” Flat Washer (4)
Rear Spring Spacer
3/8” x 3 3/4” Bolt (2)
3/8” Flangelock
Spring Spacer Washers
Rear Shock Brackets
5/8” x 1.5” Bolt (2)
5/8” Lock Nut (2)
5/8” Washers(4)
14mm x 75mm Bolts (2)
14mm Nylocks (2)
14mm Washers (4)
Rear Sway Bar Links
12mm x 65mm Bolts (2)
12mm Flangelocks (2)
12mm Washers (2)
Sleeves (4)
Brake Line
8mm x 60mm Bolt
Spacer Sleeve
Track Bar Bracket
Sleeve .562 x .750 x 1.75
9/16” x 3 1/2” Bolt
9/16” Lock Nut
9/16” Washer (2)
7/16” x 1” Bolt (2)
7/16” Nylock (2)
7/16” Washers (4)
Front Cross Member
5/8” X 4 1/2” Bolt (2)
5/8” Nuts (2)
5/8” Flat Washers (4)
Rear Cross Member
5/8” x 5 1/2”Bolt (2)
5/8” Lock Nuts (2)
5/8” Flat Washers (4)
Front CV Axle Spacers
10mm x 65mm SHCS Bolt (12)
Driver Side Diff. Drop Bracket
12mm x 35mm Bolt (2)
12mm Flange Nut (2)
12mm Washer (2)
Pas Side Differential Brkt
12mm x 45mm Bolt (2)
12mm Flange Nut (2)
12mm Washer (2)
Lower Strut to Ctrl Arm Mt
10mm x 55mm Bolt (4)
10mm Lock Nuts (4)
10mm Washers (8)
Sway Bar Bracket
10mm x 35mm Bolt (4)
10mm Lock Nuts (4)
10mm Lock Washer (4)
10mm Washers (8)
Frt & Rr Brake Line Brackets
5/16” x 3/4” Bolt (4)
5/16” Nylon Lock Nut (4)
5/16” Washer (8)
This kit is packaged in 4 boxes. Please confirm that you have all the needed parts and know where they go prior to begin-
ning installation.
