15. Assemble the new shocks. Part 650328 hydro / 650380 Nitro with bushings /sleeves. Install the shock into the fac-
tory location using the stock hardware. Tighten using a 15mm and 18mm socket. Tighten the upper to 25 ft/lbs and
the lower to 55 ft/lbs.
16. Install the new track bar bracket into the stock frame mount on the passengers side. Using the 7/16” x 1” bolt,
washer and nut from 1687bag2, using a 16mm socket and wrench. Bolt the new bracket to the mount. Insert the
sleeve from 1687bag2 into the new bracket and insert the 12mm x 65mm bolt, washer through the bracket and
sleeve where the track bar was bolted stock. Tighten using a 19mm wrench and socket. Flip the track bar from end
to end and install into the new bracket and axle bracket with the stock track bar bolts.. Using a T55 and 18mm
wrench torque to 50ft/lbs. See PHOTO 5 & 6.
17. Install the tires/wheels and lug nuts. Using a 13/16” deep well socket. Lower the vehicle to the ground.
18. Tighten the lower control arms to 130ft/lbs using a 21mm socket and wrench.
19. Thoroughly grease all zerk fittings in the suspension links

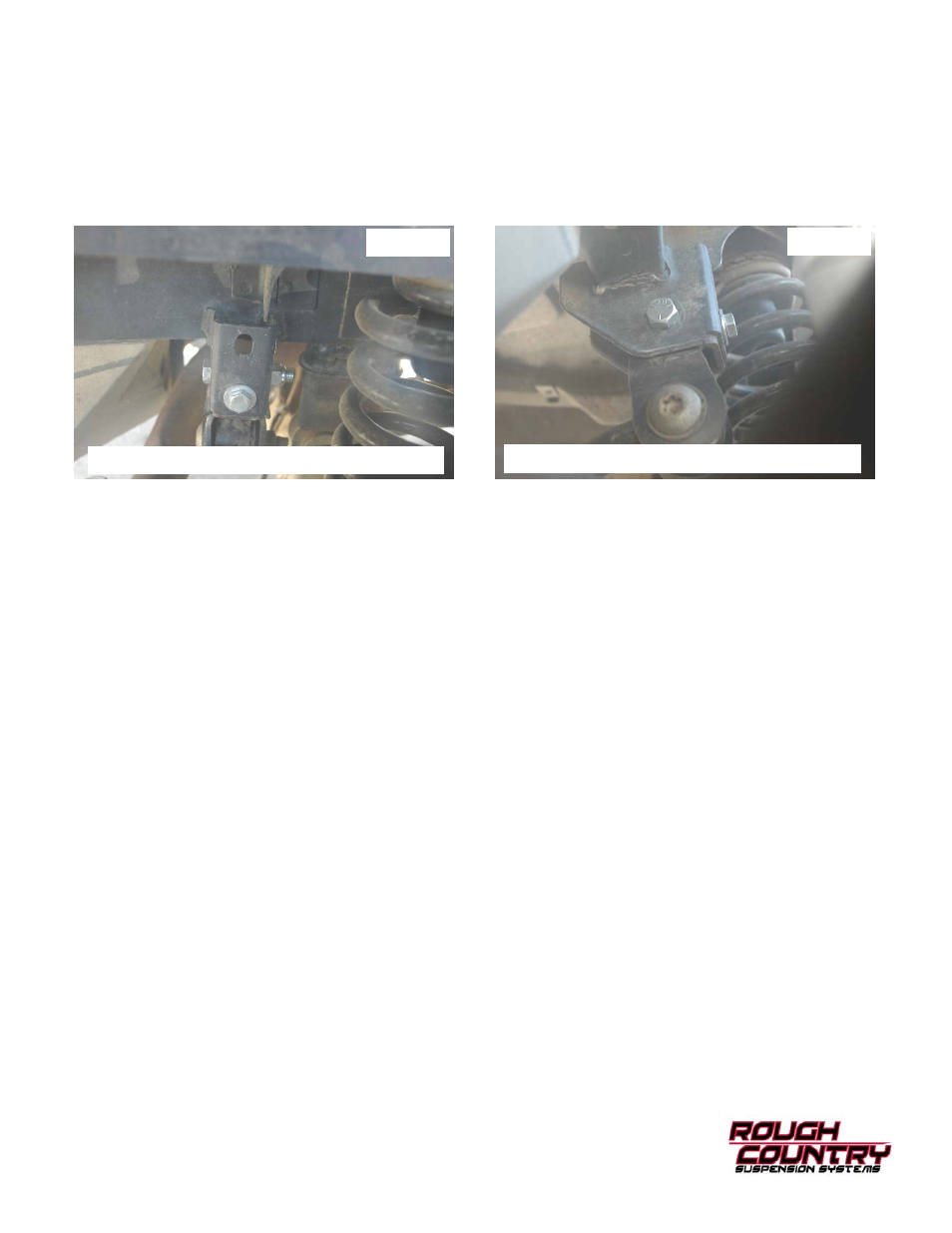

PHOTO 5 PHOTO 6
INSTALL THE TRACK ROD BRACKET INSTALL TRACK ROD IN BRACKET
