Rough Country 577.20 User Manual
Page 11
REAR INSTALLATION
1. Chock the front tires and jack the rear the rear end up. Put jack stand under the frame rail and lower truck onto jack
stands.
2. Remove tires and wheels.
3. Remove rear shocks from the upper and lower mount using 18mm and a 15mm wrench. See Photo 1 & 2.
4. Using a jack support the rear end on one side and remove U-bolts using a 21mm socket. See Photo 3. Retain the
factory block.
5. Remove the e-brake cable from the factory e-brake bracket.
6. Remove the stock driver side emergency brake cable bracket if so equipped using 10mm wrench,1” 1/16 and a
15/16 wrench. See Photo 4. Disconnect the e-brake cable from the main cable and discard stock bracket if so
equipped.

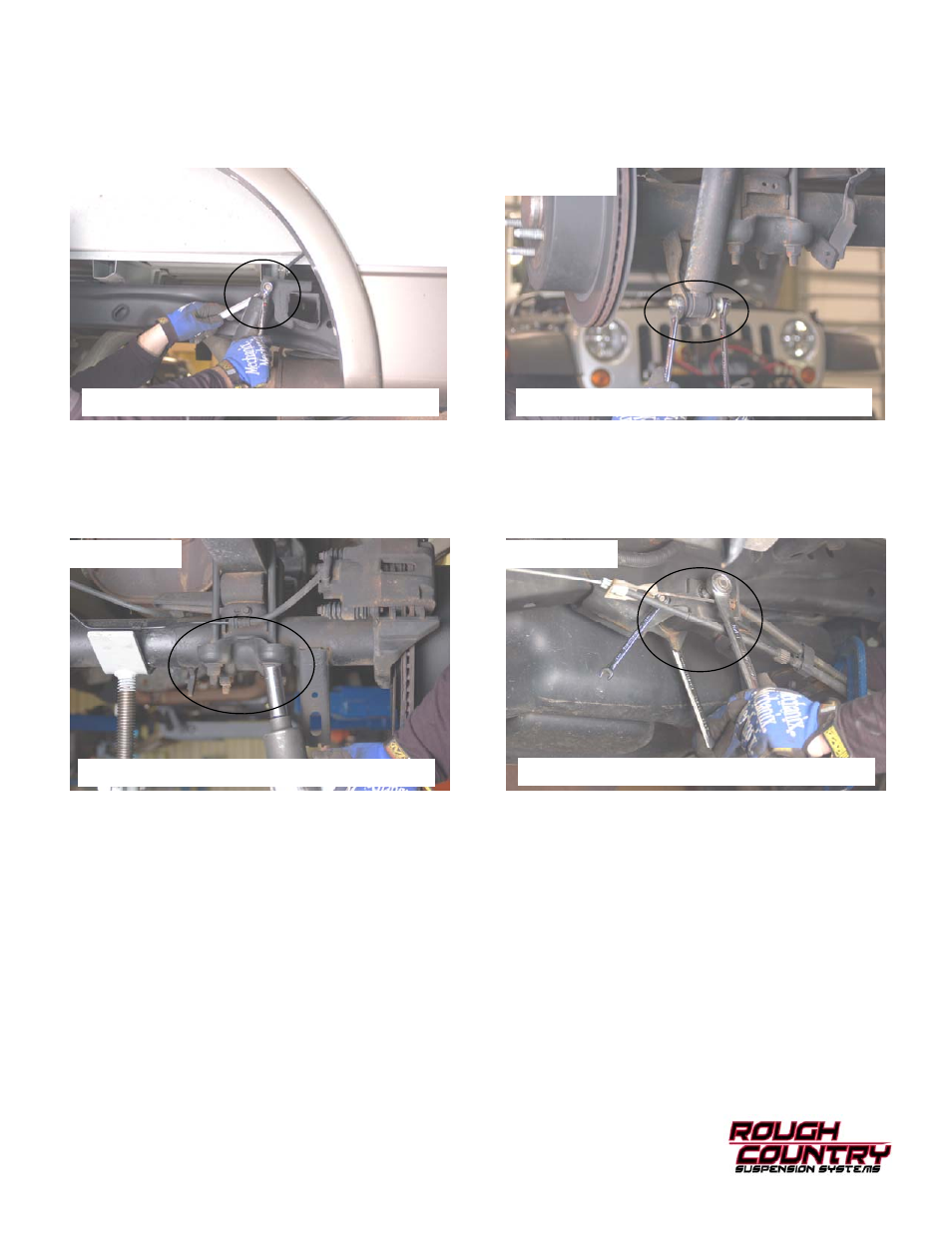

PHOTO 1
PHOTO 2
PHOTO 3
PHOTO 4
Remove the shock from the upper mount
Remove the shock from the lower mount
Remove the stock u-bolts
Remove the e-brake cable bracket
