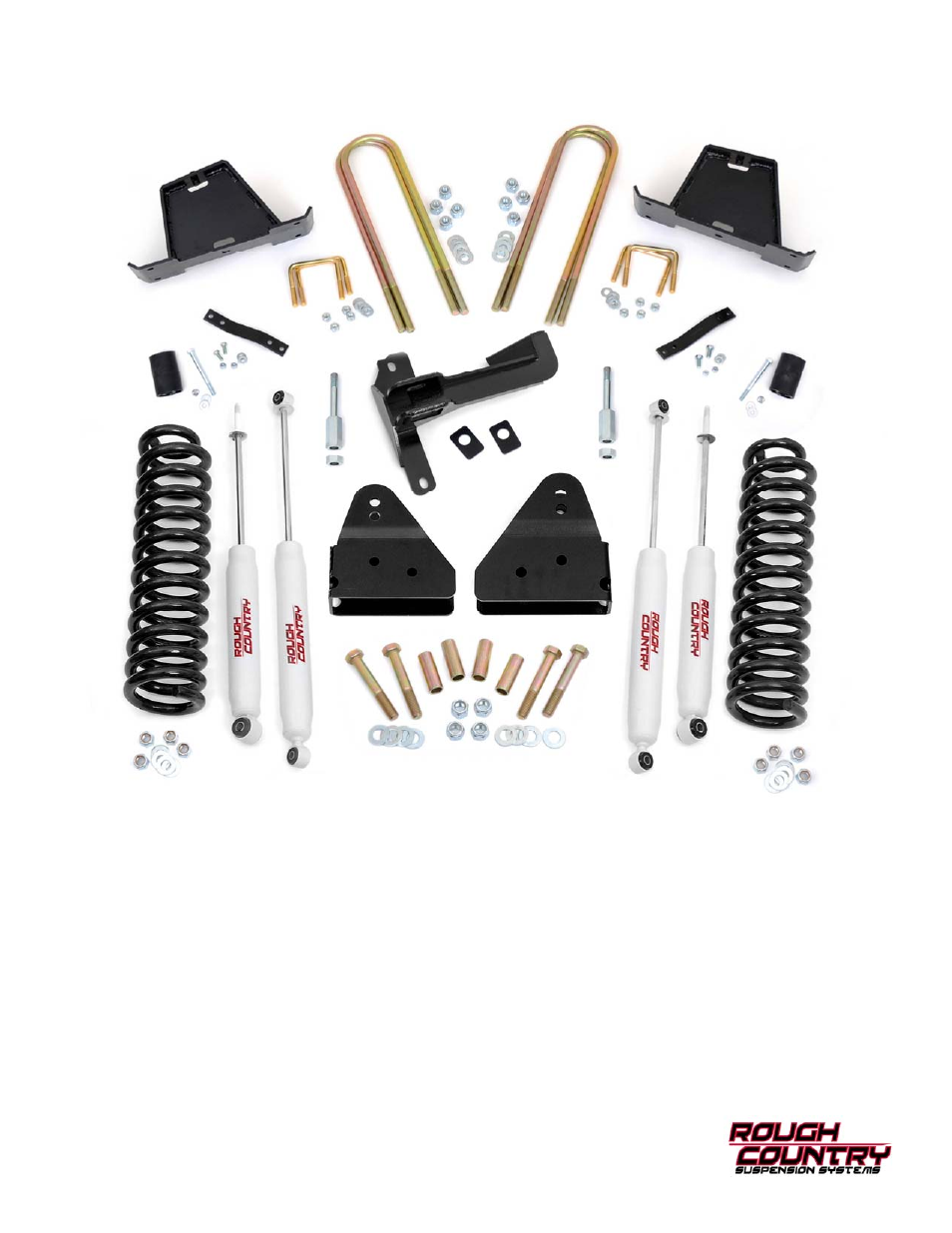

KIT CONTENTS
Coil Springs
Track Rod Bracket
Brake Line Brackets
Front Sway Bar Exts
Front Shocks
Rear Shocks
Rear U-Bolts
Radius Arm Brackets
Rear Lift Blocks
Bump-stop
Extensions
Kit Contents :
Part # 9296 Front Coil Spring (2)
Radius Arm Bracket (2)
Track Rod Bracket
Sway Bar Link Ext (2)
Fr Brake Line Bracket (2)
Fr Bump Stop Ext (2)
FR Rough Country Shock (2)
RR Rough Country Shock (2)
Rear Block (2)
Fabbed Block Shims (4)
U-bolts (4)
Hardware List
For Radius Arm Bracket:
4-3/4” x 5” Bolt
8-3/4” Flat Washer
4-3/4” Nut
4-Crush Sleeves
For Fr Brake Line Bracket
2-5/16” x 3/4” Bolt
2-5/16” Nut
4-5/16” Flat Washer
2-1/4” x 3/4” Nut
2-1/4” Nut
4-1/4” Flat Washer
For Fr Bump Stop
8mm x 95mm Bolt
2-Washer
For Rear Block
4-7/16” x 3” U-bolt
8-7/16” Nut
4-5/8” x 3 5/8” x 16” U-bolt
8-5/8” Nut
8-5/8” Flat Washer
For Front Sway Bar Link:
2-14mm
Jam Nuts
