Rough Country 1010 User Manual
Page 2

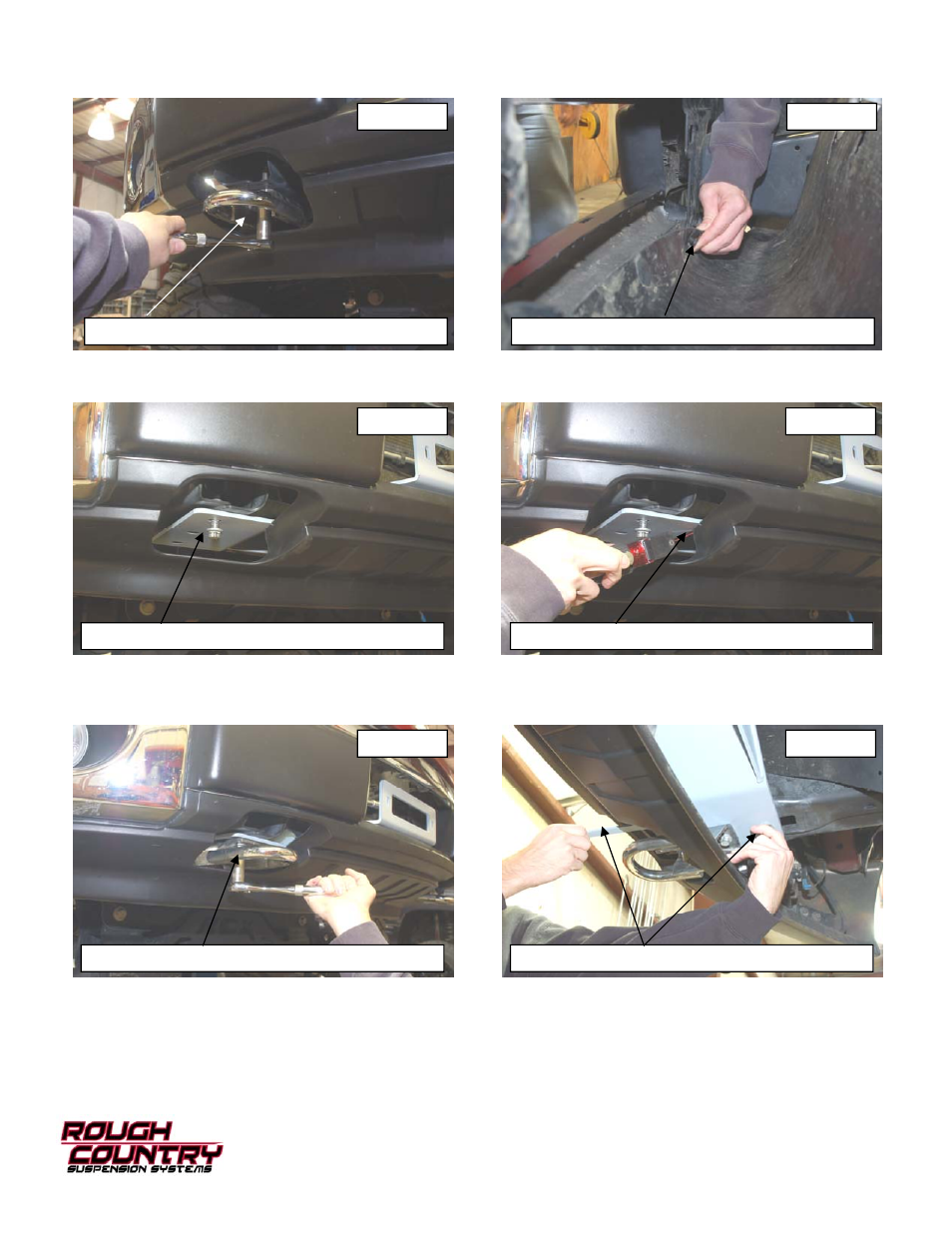

1. Remove the tow hooks using a 15mm socket. Retain the hardware for reuse. See Photo 1.
2. Remove the rubber lower shield by removing the push in retainers from inside the bumper. See Photo 2.
3. Place winch plate in place and hold in place with the tow hook bolts. See Photo 3.
4. Trim the plastic as needed to install the plate. See Photo 4.
5. Reinstall the tow hooks with the factory hardware. See Photo 5.
6. Place the supplied flag nut in the frame as shown in Photo 6 and install the supplied 1/2” X 1 1/2” bolts and flat
washers. Tighten using a 3/4” wrench.
PHOTO 1
PHOTO 2
PHOTO 3
PHOTO 4
PHOTO 5
PHOTO 6
REMOVE TOW HOOKS
REMOVE THE LOWER RUBBER SHIELD
PLACE WINCH PLATE ON MOUNTS
TRIM PLASTIC AS NEEDED
REINSTALL THE TOW HOOKS
INSTALL FLAG NUT AND 1/2” X 1 1/2 BOLT
