For example:
Copy the EDID from the display connected to OUTPUT1 to INPUT8.

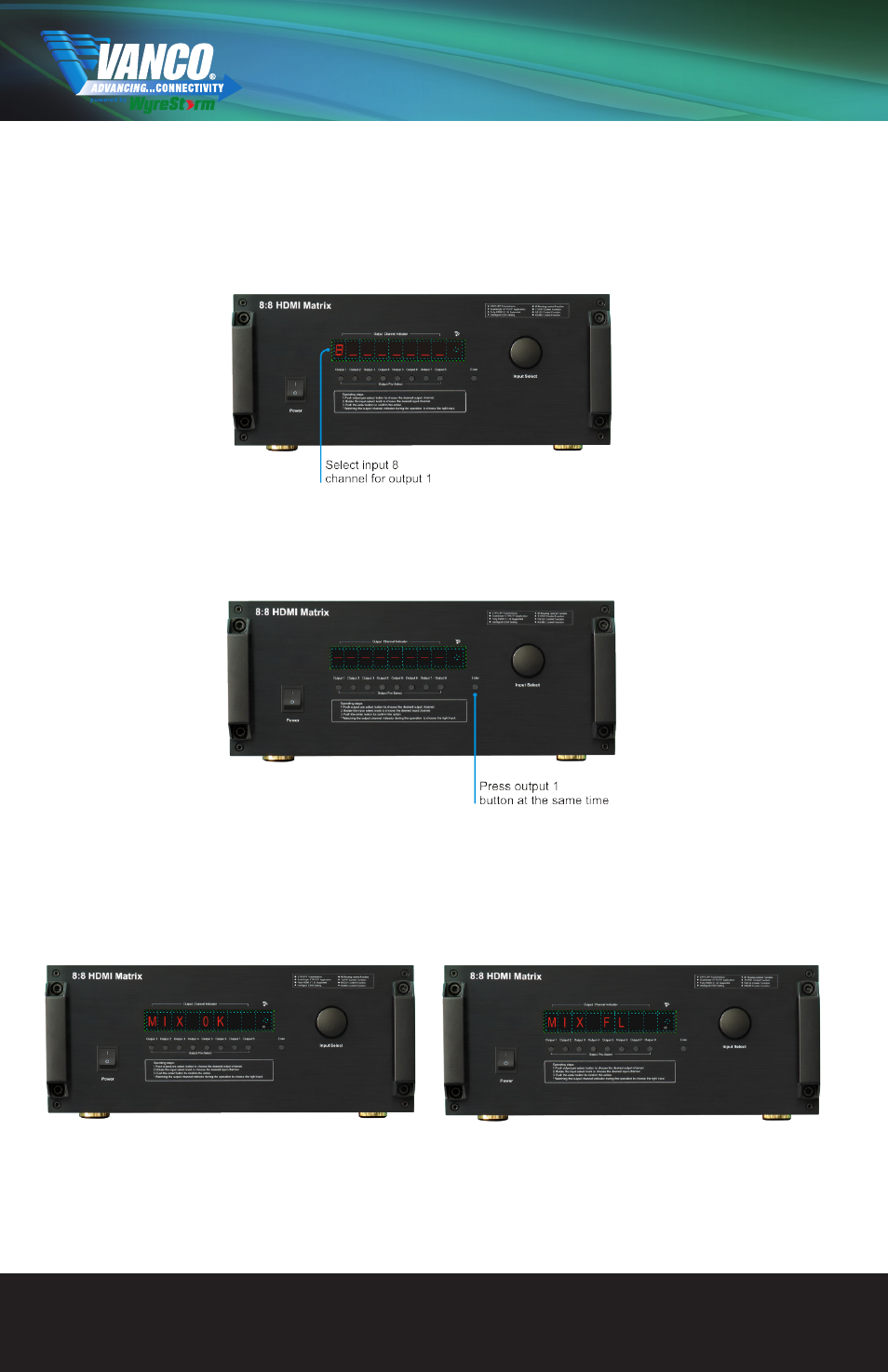

1. Connect the display to OUTPUT1 of unit. Power on unit and the display.
2. Switch the matrix to connect OUTPUT1 to INPUT8.
3. Press down ‘ENTER’ and ‘OUTPUT_1’ simultaneously, after two seconds will see the LEDs show
‘-‘circularly. (This means the matrix is performing EDID COPY). Release the buttons, the unit will finish the
remaining work.
4. If the EDID COPY succeeds, the LEDs will show ‘MIX OK’; otherwise the LEDs will display ‘MIX FL’. If it fails
push the ‘ENTER’ button or wait for 3 seconds for the unit to go back to normal working condition.
