5. Control Code
Outport1 <“08” >“09”
1“00” 2“01” 3“02” 4“03” 5“04” 6“05” 7“06” 8“07”
Outport2 < “18” > “19”
1 “10” 2 “11” 3 “12” 4 “13” 5“14” 6“15” 7“16” 8“17”
Outport3 < “28” > “29”
1 “20” 2 “21” 3 “22” 4 “23” 5“24” 6“25” 7“26” 8“27”
Outport4 < “38” > “39”
1 “30” 2 “31” 3 “32” 4 “33” 5“34” 6“35” 7“36” 8“37”
Outport5 <“48” >“49”
1“40” 2“41” 3“42” 4“43” 5“44” 6“45” 7“46” 8“47”
Outport6 < “58” > “59”
1 “50” 2 “51” 3“ 52” 4 “53” 5“54” 6“55” 7“56” 8“57”
Outport7 < “68” > “69”
1 “60” 2 “61” 3“62” 4 “63” 5“64” 6“65” 7“66” 8“67”
Outport8 < “78” > “79”
1 “70” 2 “71” 3 “72” 4 “73” 5“74” 6“75” 7“76” 8“77”
When you send a control command to the 280709, if succeedssful, it will feedback current output port

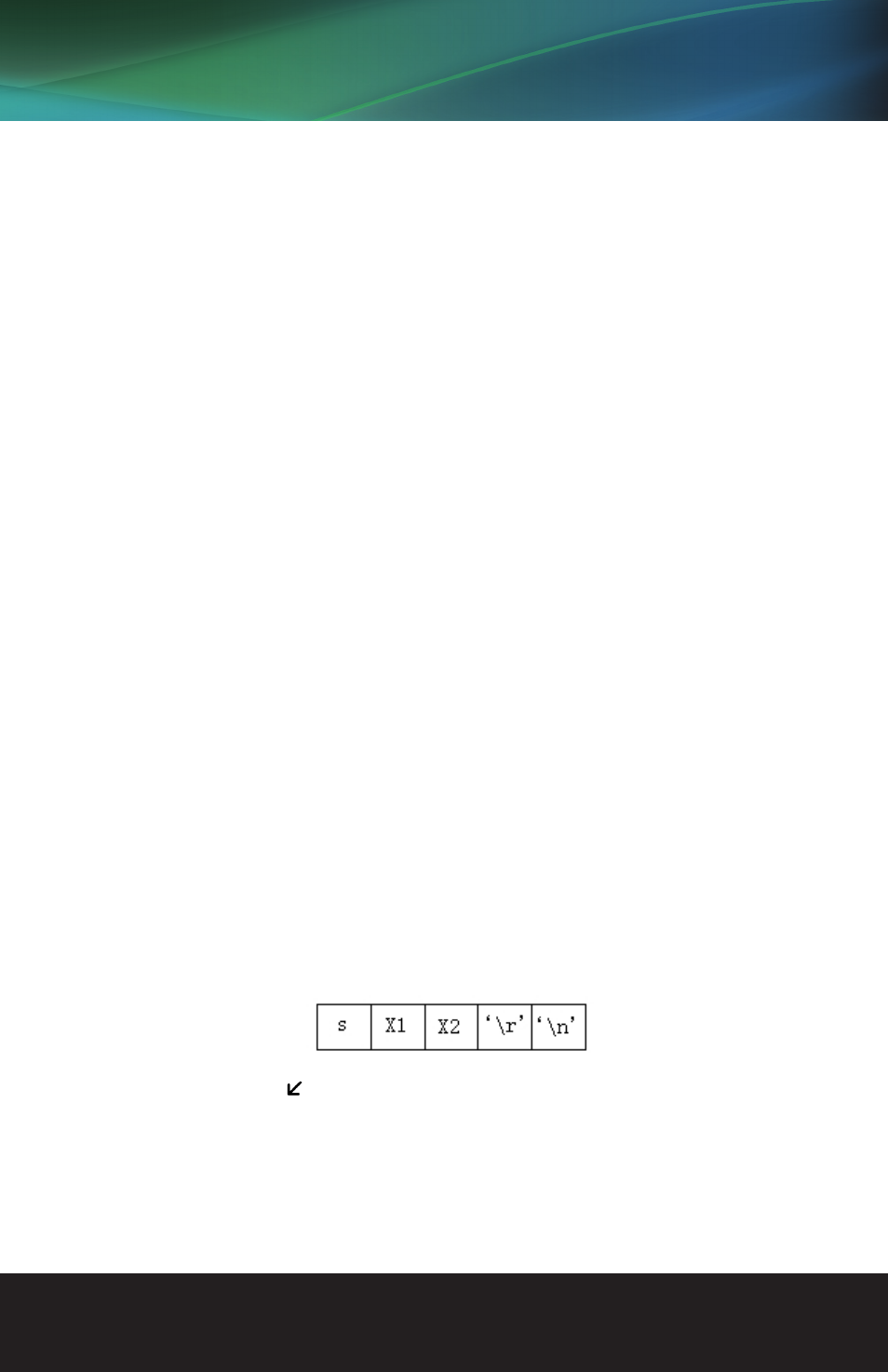

status to show which input port is selected. The return status format is as follows:
For example, if you send “cir 44 ” to 280709,if successful, it will feedback “s55”, meaning OutPut5
selects InPut5.
