Toner Cable TRR-72 Heavy Duty Relay Rack User Manual
Trr series, Heavy duty relay rack

Specifications Subject To Change Without Notice
Rev 0
5-13
© Toner Cable Equipment, Inc.
TRR Series
Heavy Duty Relay Rack
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l

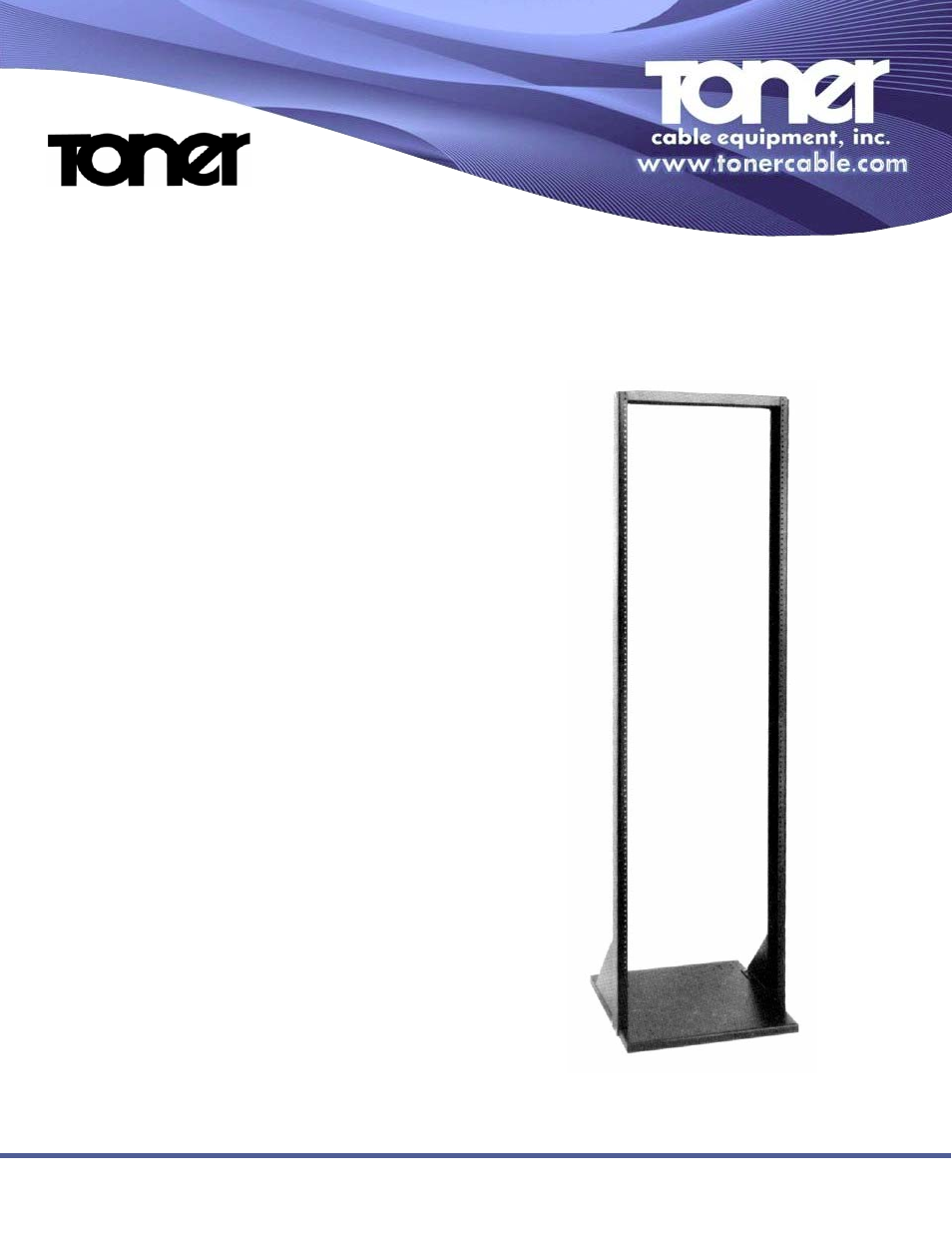

Toner introduces their TRR Series relay rack, made of 12 gauge, cold rolled steel. By utilizing heavier
steel and larger bracing, we have minimized the “sway” associated with relay racks. Each rack is
shipped knocked down in two cartons to minimize shipping cost. The racks are finished with a satin
black paint to match today’s equipment.
-FEATURES-
•
Choose from:
72” - TRR-72
84” - TRR-84
•
68
1
/
4”
Rack Space (39 RU)
80
1
/
4
” Rack Space (45 RU)
•
Satin Black Finish
•
19” Panel Mount Spacing
•
Shipping Weight: 41 pounds
•
UPS Shippable
•
Shipped Knocked Down in Two Cartons
•
20” x 20” Base with 12” Braces with Holes
for Mounting CA-3 Casters
•
Made of No. 12 Gauge Cold Rolled Steel
•
Tapped 10-32 on EIA Spacing (5/8” -
5/
8” -
1/
2”)
•
Drilled Base with CA-3 Caster
-OPTIONS-
•
5/
8” x
5/
8” Screws,
Part Number SFSW10-32
•
13/4” Blank Panels Black,
Part Number ARP-119-571
•
CA-3 Caster Set, 4 Swivel Ball Bearing
Casters with 3” Plastic Wheels, 225 Pound
Load Rating
