Toner Cable MEC MPEG2 Encoder User Manual

Mpeg-2 encoder, Features, Specifications

background image

Features

2RU Modular design with low power consumption

Analog composite video input in NTSC/PAL format

4:2:0 MP@ML video compression from 2.5 to 15 Mbps

Analog stereo audio input

MPEG-1 layer2 or Dobly® Digital (AC3) audio compression

ISO/IEC 13818-1 PAT and PMT tables with Single Program transport
stream (SPTS) output transport stream

Local control via front panel display and keys

Remote control via supplied utility

Specifications Subject To Change Without Notice

Rev 05-12

©Toner Cable Equipment, Inc.

MEC

MPEG-2 Encoder

969 Horsham Road

l

Horsham, Pennsylvania 19044 USA

l

Phone: 215-675-2053 Fax: 215-675-7543

l

[email protected]

VIDEO INPUT

Input interface
Signal Composite

(NTSC/PAL)

Connector

RCA Jack (Yellow)

Level

1 Vp-p, 75Ω Unbalanced

ENCODING

Type MPEG-2

MP@ML

Supported Resolution

720 x 480 (NTSC)

720 x 576 (PAL)

Frame Rate

29.97 (NTSC)

25 (PAL)

AUDIO INPUT

Input Interface
Signal Stereo
Connector

RCA Jack (Red, White)

Level 2Vrms

max.

ENCODING

Type

MPEG-1 Layer 2 or Dolby Digital (AC3)

Sampling Rate

32/44.1/48 KHz

Mode

MPEG-1 Layer 2: Stereo/Joint Stereo/

Dual Channel /Single Channel

Bit Rate

MPEG-1 Layer 2: 32 to 384 Kbps

Dolby Digital (AC3): 128 to 448 Kbps

OUTPUT

Output Interface

DVB-ASI

Connector

BNC

Level

800 mVpp Nominal, 75Ω

MULTIPLEX

Type

ISO/IEC 13818-1 PAT and PMT tables with

Single Program Transport Stream (SPTS)

Bit Rate

Up to 19.2 Mbps

CONTROL

Local Operation 8x2 LCD Display & Five front control keys

REMOTE OPERATION

Connector

(PC) RS232 (UNIT) RJ-11

Interface Supplied

Utility

Power Consumption

12V/0.486A

5V/0.760A

MECHANICAL

Dimension 2” (W) x 3.5” (D) x 10” (H),(52.8 x 88 x 254 mm)
Weight

1.6 lbs (0.726 kg) approx

Ordering Information
MEC

MPEG-2 Encoder

Specifications

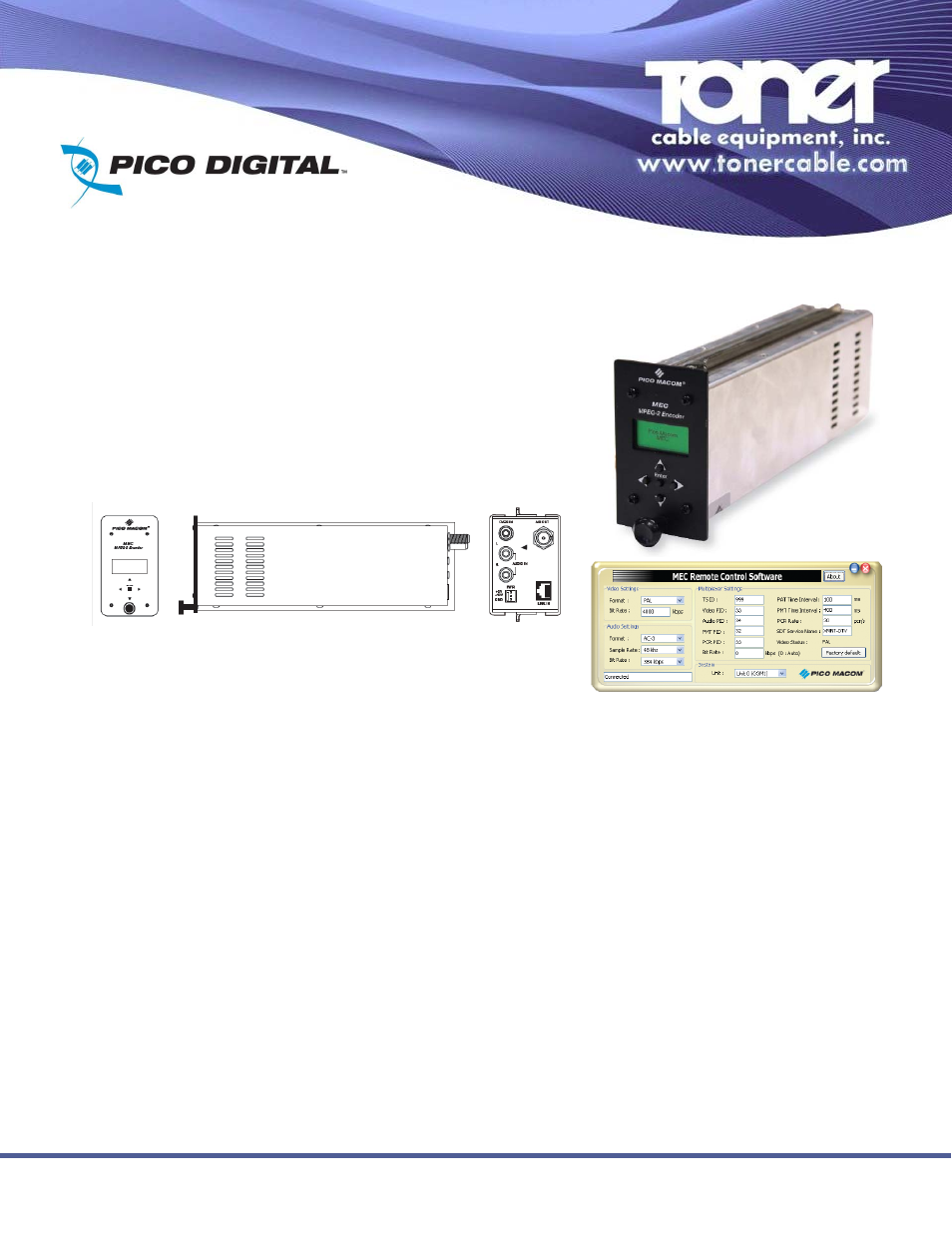

Front View

Rear View

Side View

MEC Remote Control Software
