APM-215
Audio Monitor
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l

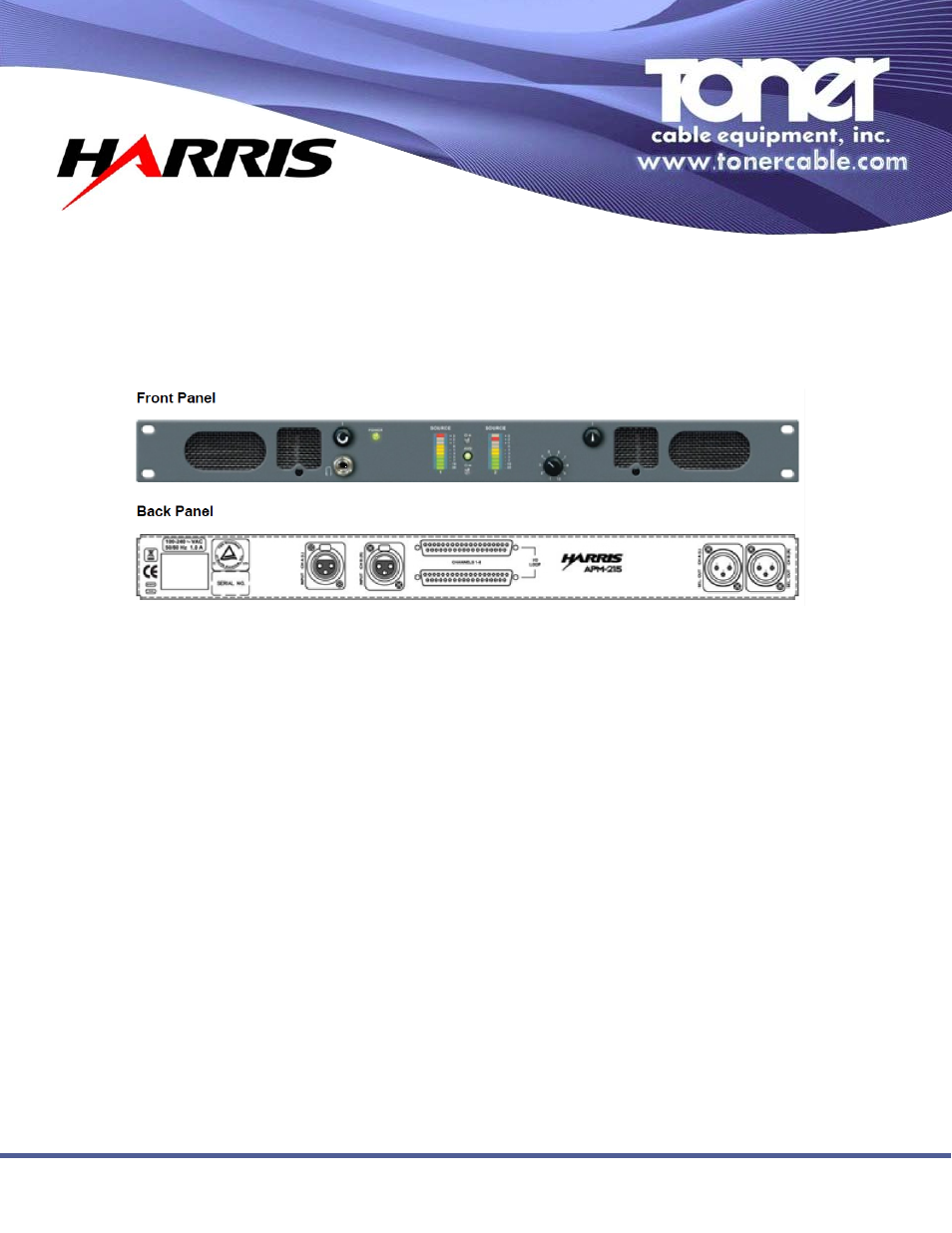

The APM-215 monitor’s high-quality audio and low distortion are attained using a two-way speaker sys-
tem with a wide volume control range with balance adjustment. Front-panel, direct-input mode switching
allows the selection of stereo monitoring for up to 10 different channels. Two 10-segment, color LED
bargraph meters are provided, as well as a phase indication LED. A front-panel headphone jack mutes
the speaker output for isolated listening requirements.
Shielding permits use adjacent to waveform or picture monitors without magnetic interference, making
the APM-215 ideally suited for use in remote vans, editing suites, VTR monitor bridges or any system
that requires high-quality, professional aural monitoring of stereo audio signals.
Features
•
Ten analog inputs, balanced
•
Two XLR input connectors, 50k ohms, balanced
•
Eight inputs via looping 37-pin D-sub connectors, 40k ohms, balanced
•
Direct connection adapter cable for easy installation with VTM Series, TVM Series,
VTM-2000, or VTM-2400
•
Two 10-segment color bar graphs with selectable response (peak and average)
•
Four input reference level selections (-6, 0, +4, +8 dBv)
•
98 dB SPL at two feet
•
Excellent high frequency response for positive detection of background whine and noise
•
Indication of phase/polarity problems
•
Stereo headphone jack, ¼ in.
•
Magnetic shielding for unrestricted installation location
•
1RU (1.75 in.) rackmountable
The APM-215 stereo audio program monitor provides superior audio fidelity from a sleek 1RU package.
Designed for ease of integration with Harris® Videotek® state-of-the-art test and measurement instru-
ments (including VTM Series™ multiformat monitors and TVM Series™ multiformat signal analyzers) via
a looping input connection and provided 37-pin audio adapter cable, the APM-215 is an ideal multipur-
pose monitor.
