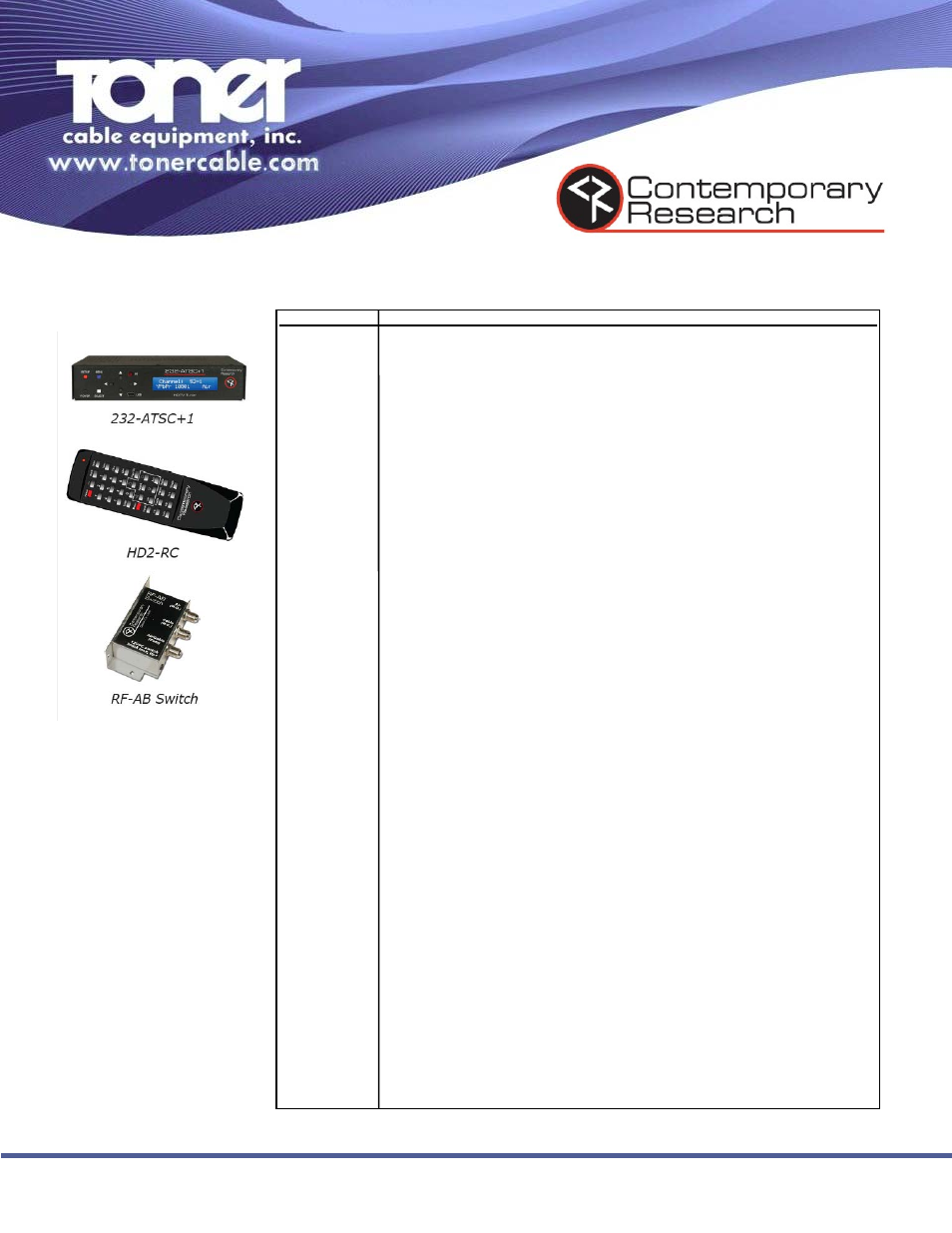

Specifications
232-ATSC+1 HDTV Tuner
Feature
Type
Universal NTSC, digital ATSC and clear QAM Tuner
Physical 8.5” [216mm] wide x 1.75” [44mm] height (1RU) x 8.0” [203mm] deep
2.25 lbs [1 kg]
1RU Rack mounting for one or two units side-by-side (RK1, RK2)
RoHS compliant and energy-efficiency meets new California standards
Tuning Cable/RF input, switchable with optional RF-AB RF A-B Switch
Type: ATSC, NTSC and Clear QAM
DTV Standards: (1080i/720p/480p/480i)
Aspect Ratio: Adjustable, variety of modes for widescreen 16:9 and normal
4:3 broadcasts
Captioning: Analog and Digital, set by program or customized for size, font,
and attributes
Favorites: Favorite channel menu
Lock: Parental option for channels and/or rating
Front Panel Power, Menu, Setup and Select buttons
Up and Down (Channel Up and Down) buttons
Left and Right (Volume Up and Down) buttons
Text Display, white text on blue LCD, channel and setup information
IR Sensor
Mini USB Port for control and drag-and-drop firmware updates
Back Panel
RF Input Air/Cable, ‘F’, female, 75 ohm impedance, -10 to 25 dBmV typical
Supports dual Cable and Air tuning with optional RF-AB RF A-B Switch
New digital RF tuning for improved sensitivity
HD Outputs HDMI and switchable RGB/Component outputs operate simultaneously
Component: RCA Pr, Pb, Y outputs (1080i/720p/480p/480i)
RGB: RGBHV DB-15 female (1080i/720p/480p)
HDMI: HDMI receptacle (1080i/720p/480p), version 1.3, PCM digital audio, HDCP
Digital Audio S/PDIF: Coax and TOSlink optical output, Dolby 5.1, PCM,
or PCM variable
AV Outputs Simultaneous with HD output
Composite Video: RCA female jack
Audio L and R: 2 stereo RCA female jacks, variable level
Control Ethernet, Web page: RJ-45 10/100 Ethernet connector
RS-232: DB-9 male, RS-232 data link to control system
300 to 19,200 baud (9600 default), 8 data bits, no parity, 1 stop bit
IR: 3.5 mm stereo input for external IR sensor or wired IR,
discrete codes available
Air/Cable 3.5 mm output to operate the RF-AB RF A-B Switch
Power 2.1mm coaxial jack (inside center conductor positive)
1 A maximum, 11 to 14 VDC, 12 VDC typical
Includes HD2-RC IR Remote
Switching power supply, 1.5 A 12 VDC, option for 4A supply for up to 3 tuners
Options RK1 Single Rack Kit, 1RU
RK2 Dual Rack Kit, 1RU, locking tab to connect enclosures externally, or remove
one enclosure to lock units together
RF-AB RF A-B Switch, self-terminating, closure controlled
CC-COM RS-232 Null Modem Cable
IR-RXC External IR Receiver
