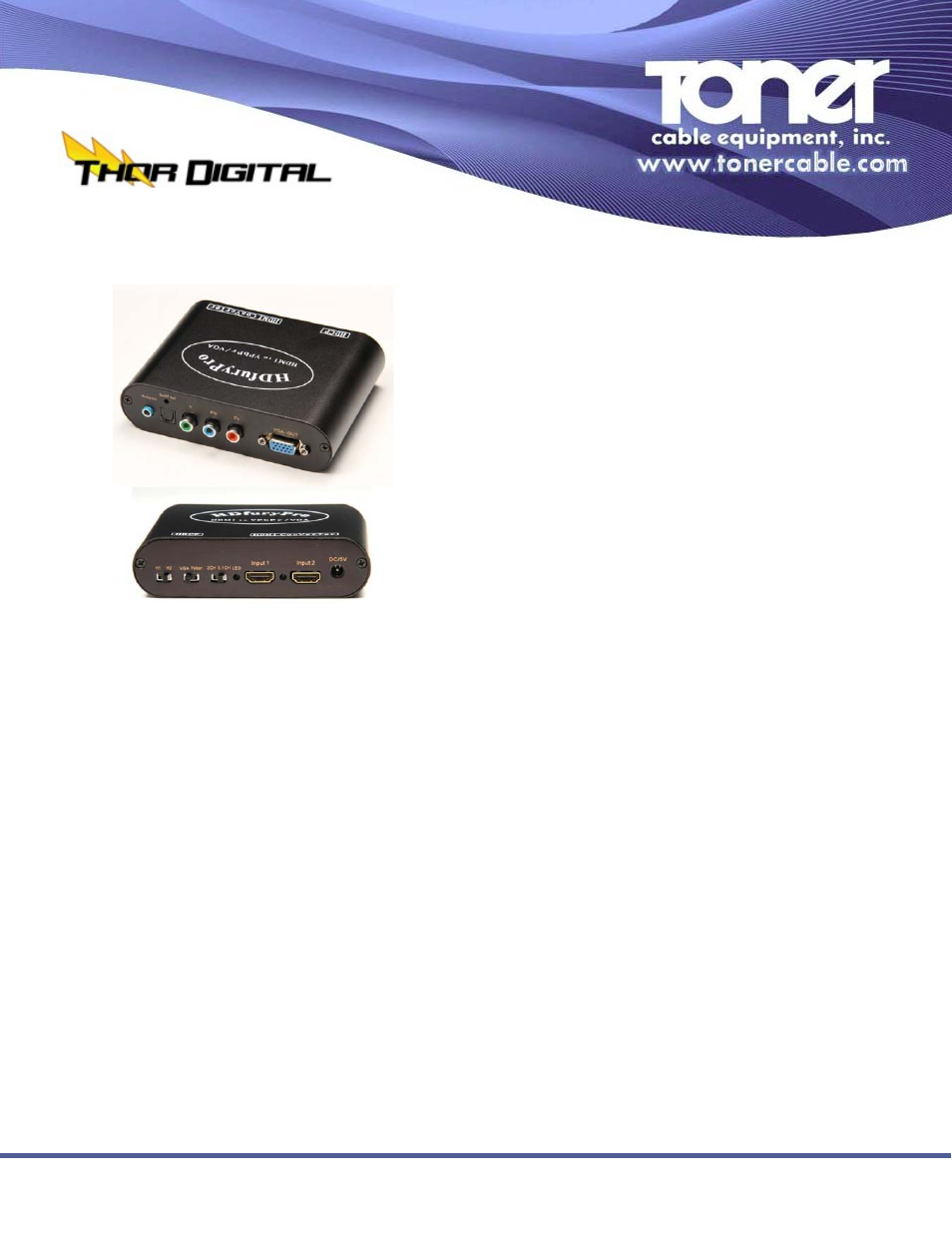

HDV668
2 HDMI to YPBPR/VGA Converter
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
HDV668 2HDMI to YPBPR/VGA
Converter
This 2 input HDMI to YPbPr/VBA switch converter is
designed for TV or projector with component video or
PC with VGA video inputs. This unit has two indepen-
dent HDMI inputs to avoid the frequent swaps of video
sources. It adopts the newest highly integrated video
processing ICs to convert high-definition HDMI A/V
signal to high-resolution VGA signal or high-definition
YPbPr component video signal and provides the
2CH/5.1CH stereo and sound capabilities for your dis-
play devices (TVs, projectors, monitors) and A/V
receiver. Pure signal processing through hardware, a
great compact gadget of high quality; no need to
install drivers, portable, flexible, plug and play.
Specifications Subject To Change Without Notice Rev 08-13 ©Toner Cable Equipment, Inc.
Features
• Newest High Definition HDMI digital processing
chip
• Converts HDMI signal to VGA signal or component
video signal
• Support 5.1CH high-definition digital audio signal at
SPDIF output
• Support analog 2CH stereo at the 3.5mm L/R audio
output
• Support two HDMI video input (HDMI1 and HDMI2).
• Support multi-channel analog video output (VGA or
YPbPr)
• Support multi-channel audio output (5.1CH with
SPDIF optical and 2CH stereo)
Specifications
• Input Ports 2xHDMI
• Output Ports 1xYPbPr, 1xVGA, 1xSPDIF,
1x3.5mm Phone Jack
• Power Supply DV 5V/1A
• Dimensions (mm) 130(D)x80(W)x33(H)mm
• Chassis Material Aluminum
• Operating Temperature 0°~40°C
• Video input/output resolutions
480i,576i,480p,576p,720p50/60Hz,
1080i50/60Hz,1080p50/60Hz
• Audio Output 2CH L/R Stereo and
5.1CH SPDIF optical audio
