Toner Cable SCVS Series Indoor L Style Splitter User Manual
Sxrs & scvs series
Specifications Subject To Change Without Notice
Rev 09-11
©Toner Cable Equipment, Inc.
SXRS & SCVS Series
Indoor 5-1000 MHz Splitters
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
SCVS Ordering Information
Model Stock
#
Description
SCVS-2
1902
Splitter, 2 Way Solder Back, 5-1000 MHz, L Style
SCVS-3
1903
Splitter, 3 Way Solder Back, 5-1000 MHz, L Style
SCVS-4
1904
Splitter, 4 Way Solder Back, 5-1000 MHz, L Style
SCVS-6
1906
Splitter, 6 Way Solder Back, 5-1000 MHz, L Style
SCVS-8
1908
Splitter, 8 Way Solder Back, 5-1000 MHz, L Style
SXRS Ordering Information
SXRS-2
1922
Splitter, 2 Way Solder Back, 5-1000 MHz, In-Line Style
SXRS-3
1923
Splitter, 3 Way Solder Back, 5-1000 MHz, In-Line Style
SXRS-4
1924
Splitter, 4 Way Solder Back, 5-1000 MHz, In-Line Style
SXRS-8
1928
Splitter, 8 Way Solder Back, 5-1000 MHz, L Style
Features
• Superior Performance to 1000 MHz
• 2, 3, 4, 6 (SCVS only), and 8 way
models
• Die Cast Housing
• RFI Shielding 120 dB
• Built-In Ground Block
Specifications
Electrical
SCVS-2/
SCVS-3/
SCVS-4/
SCVS-6
SCVS-8/

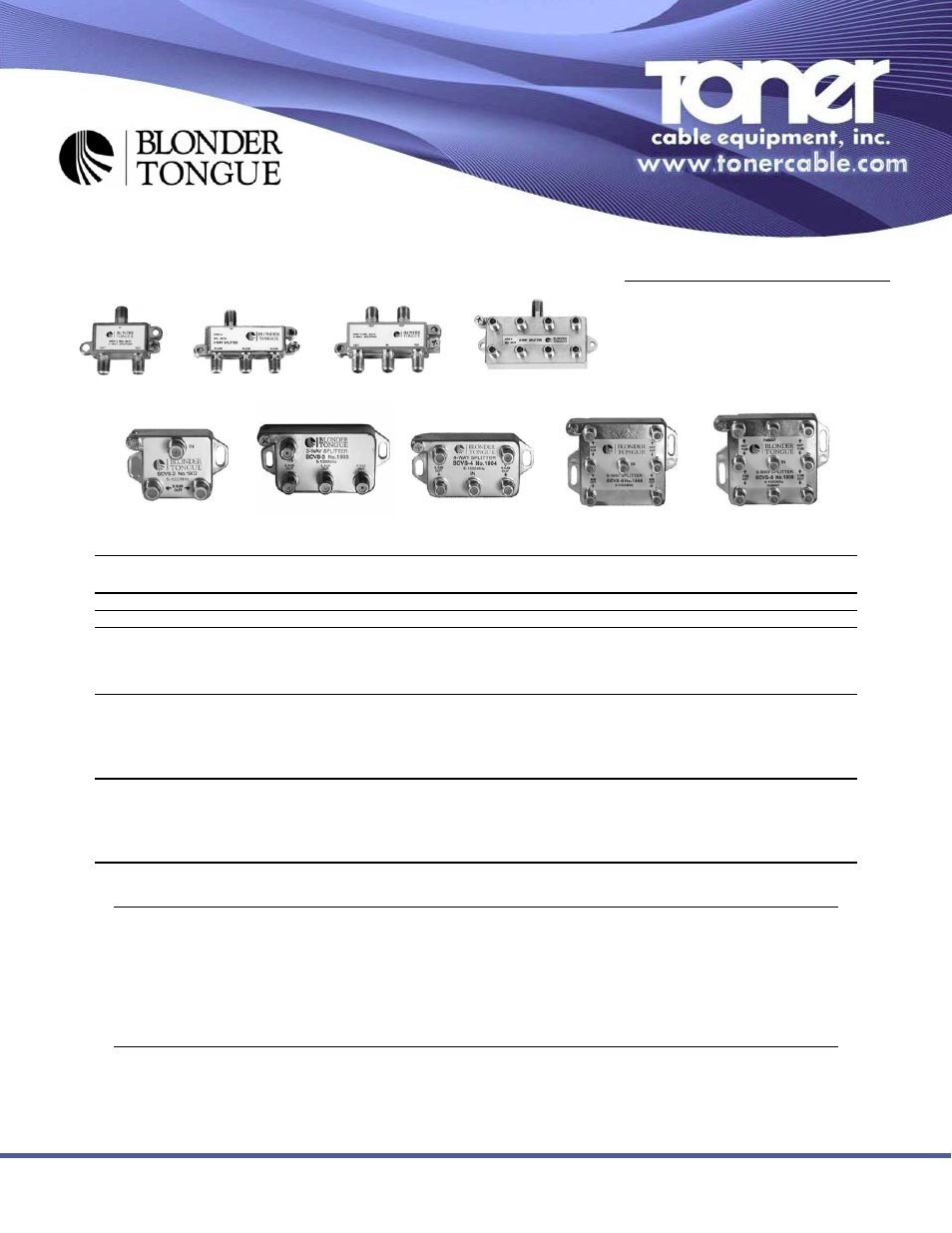

SXRS-2
SXRS-3
SXRS-4
SXRS-8
Number of Outputs
2
3
4
6
8
Frequency Range (MHz):
5-1000
5-1000
5-1000
5-1000
5-1000
Splitter Loss (dB) (max):
5-500 MHz:
3.6
6.1
7.0
9.5
10.5
500-860 MHz:
3.8
6.2
7.5
10.0
11.5
860-1000 MHz:
4.2
6.8
8.0
11.0
12.0
Input Return Loss (dB) (min):
5-40 MHz:
16
16
16
16
16
40-500 MHz:
22
20
20
18
20
500-860 MHz:
20
20
18
18
18
860-1000 MHz:
18
16
16
18
16
Isolation Between Outputs (dB) (min):
5-40 MHz:
22
22
22
25
22
40-500 MHz:
26
25
25
28
25
500-860 MHz:
26
25
25
23
25
860-1000 MHz:
24
21
22
21
21
SXRS-2
SXRS-3
SXRS-4
SXRS-8
SCVS-2
SCVS-3
SCVS-4
SCVS-6
SCVS-8
