iBa Series Fiber Optic Links
215-675-2053 800-523-5947 215-675-7543 [email protected] http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA
WiBa Series Fiber Optic Links
Applications
 TVRO
 Broadcast
 Earth Stations
 Headends
 VSAT
 GPS
 Wireless
Features
 10 MHz - 2700 MHz
 50
Ω and 75Ω Versions
 1310 nm

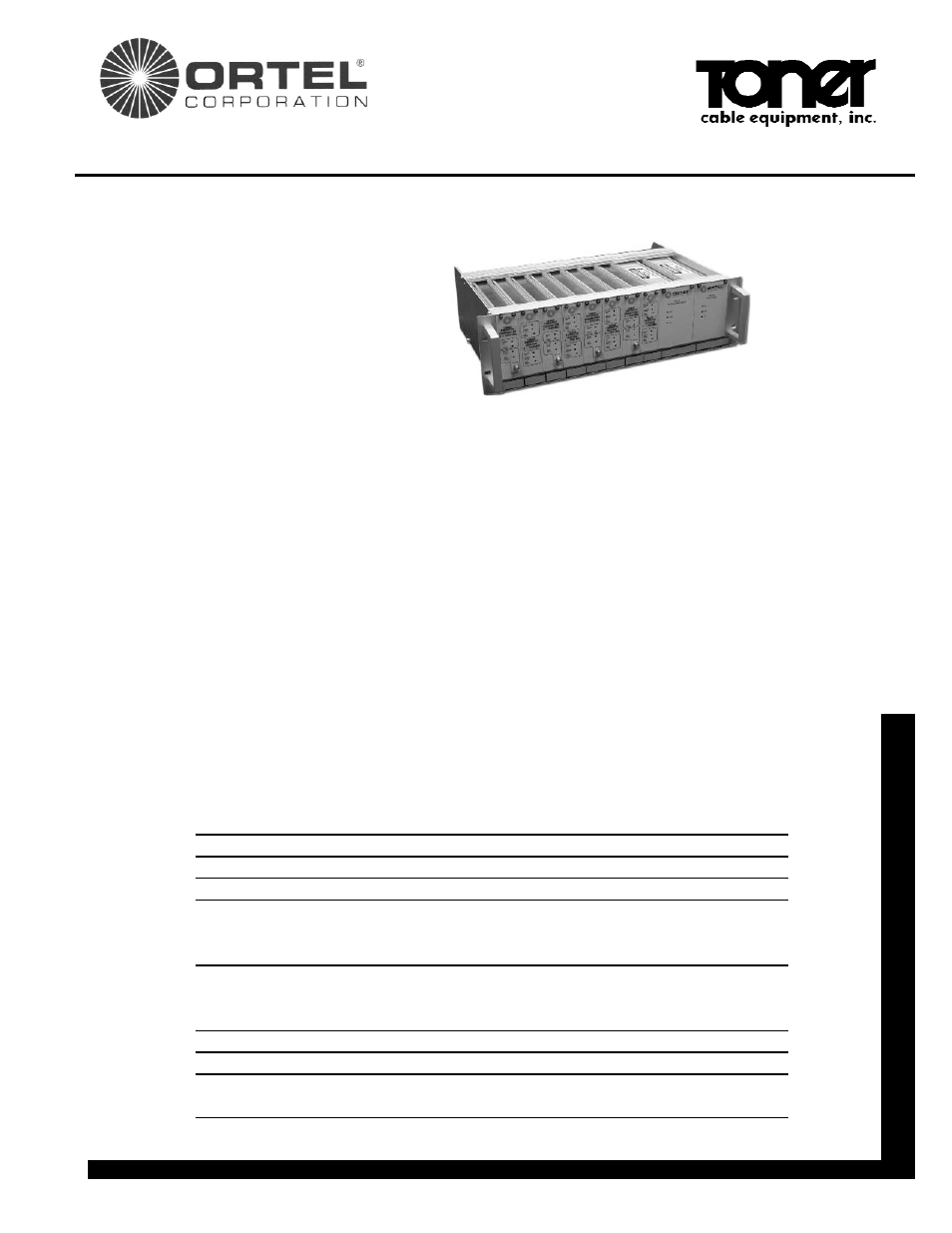

 8 Transmitters per Chassis
 16 Receivers per Chassis
 Small OEM Package Option
The Ortel Wide Bandwidth (WiBa) fiber-optic inter-facility links (IFL) are a high-perfor-
mance, cost-effective alternative to coaxial cable for 5 MHz to 2700 MHz communi-
cation applications.
Ortel’s fiber-optic IFL’s function as a transparent link in satellite broadcast and televi-
sion applications. These IFL’s overcome the limitations of copper systems by
enabling longer transmission distance while retaining the highest level of signal quali-
ty.
In addition, Ortel’s fiber optics provides several other significant network advantages,
including simplified network design, ease of installation, and immunity from EMI/RFI
and lighting. They fit in Ortel’s widely used System 10000 chassis.
Units
Parameter 1301 Standard Output 1305 High Output
Wavelength 1310 ± 10 1310 ± 10 nm
Optical Output 2 9 dBm
Link Gain@ 1 dB Optical Loss, 1 GHz
Un-amplified TX >-12 - dB
Amplified TX (Max Gain) >15 - dB
Link Gain @ 8 dB Optical Loss, 1 GHz
Un-amplified TX - >-12 dB
Amplified TX (Max Gain) - >15 dB
Optical Distance 0 to 20 0 to 40 Km
Temperature Range 0 -- 50 °C
Frequency Range
75 Ω 5 to 2500 5 to 2500 MHz
50 Ω 5 to 2700 5 to 2700 MHz
WiBa Series Fiber Optic Links
with Cooled Laser
