Toner Cable XGVS-16 1 GHz 16 Way Digital Drop Splitter User Manual
Xgvs-16, 16 port 1 ghz splitter, Specifications

969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
Specifications Subject To Change Without Notice
Rev
06-13
© Toner Cable Equipment, Inc.
Frequency
5-10 MHz
10-30 MHz
30-40 MHz
450-750 MHz
750-1000 MHz
Insertion Loss
±0.5 dB
15.0 dB
15.0 dB
15.5 dB
16.0 dB
16.5 dB
Return Loss
(minimum)
18.0 dB
18.0 dB
20.0 dB
20.0 dB
22.0 dB
Port to Port
Isolation
30.0 dB
32.0 dB
30.0 dB
27.5 dB
24.5 dB
(minimum)
SPECIFICATIONS
100 dB RFI Shielding
State-of-the-art Design
Aluminum Die-cast Housing and Back
Integral 90° Mounting Brackets
Plated Brass “F” Connectors
Integral Ground Block
Bandwidth: 5-1000 MHz
Baked Acrylic Anti-corrosive Finish
Featuring our Surface Mount Technology

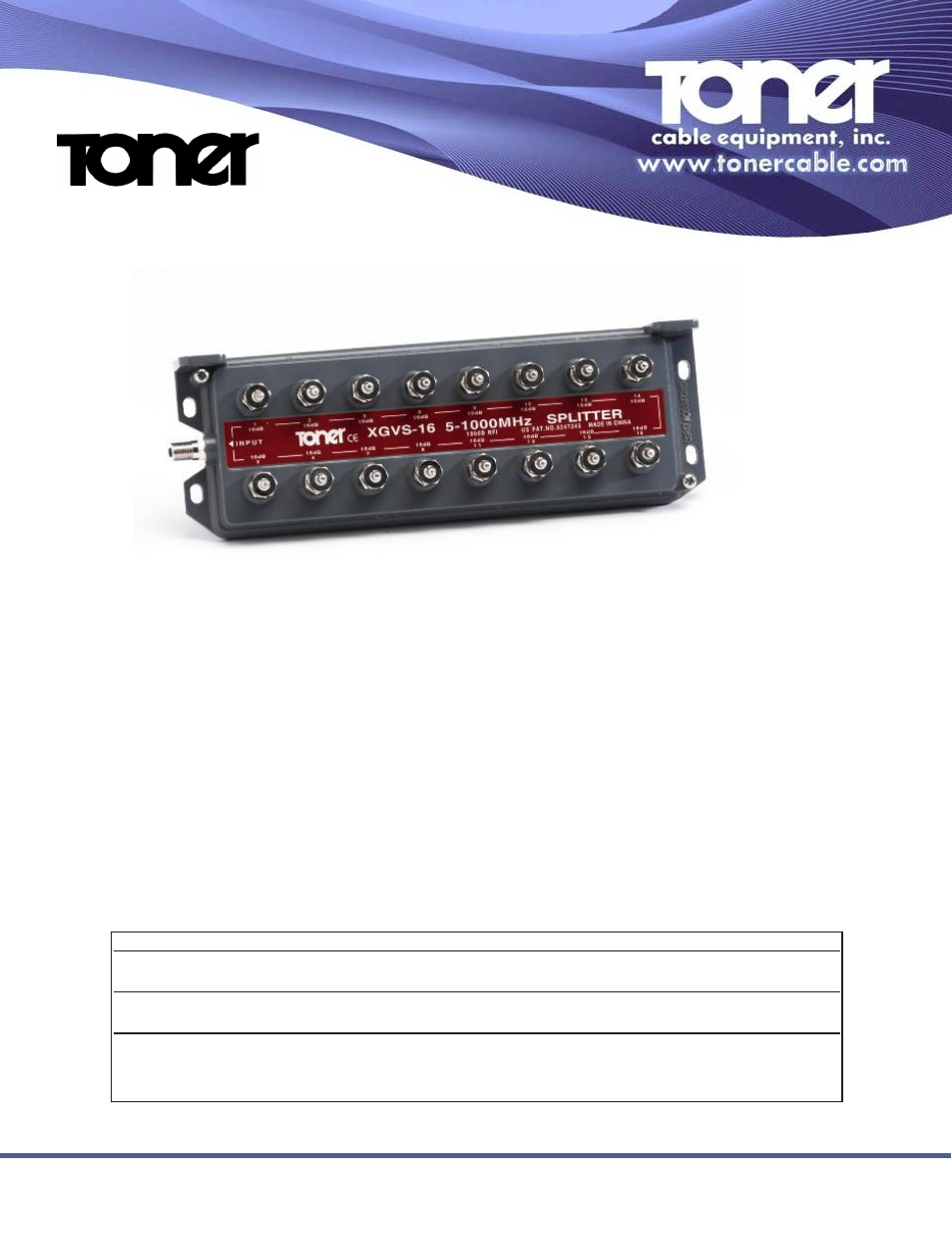

XGVS-16
16 Port 1 GHz Splitter
