Specifications Subject To Change Without Notice

Rev 05-11

©Toner Cable Equipment, Inc.

969 Horsham Road

l

Horsham, Pennsylvania 19044 USA

l

Phone: 215-675-2053 Fax: 215-675-7543

l

[email protected]

Min

Typ

Max

Units

Frequency Range

48

1,000

MHz

Frequency Response

-1.0

+1.0

dB

Input Impedance

75

Ohms

Input Return Loss

16

dB

Input Level (+3to+6dBm)

+18

dBmV/ch

Input Level (+8to+15dBm)

+19

dBmV/ch

CSO

63

dBc

CTB

65

dBc

Input Adjustment Range (1)

4

dB

RF Test Point (2)

+10

dBmV/Ch

Specifications

OTOT-1000C

Standalone or 1RU 19” EIA Rack-Mount 1310 nm Optical Transmitter

Min Typ

Max

Units

Weight

1.5

lbs

0.68

kg

Dimensions(WxHxD)

5.5x1.6x7.5

in

140x41x191

mm

Min Typ

Max

Units

Power Supply Voltage

+90

+240

V

Power Supply Frequency

50

60

Hz

Power Consumption

10

W

Operating Temp. Range

-10

+55

°C

Humidity (RH Non Con.)

5

95

%

Cooling Forced

Air

Fan

Field-replaceable

Power Connector

IEC 320 w/5x2.0 0.5A

Slo-Blo Fuse

NOTES:
1) To +22 dBmV/carrier.
2) Set for 77 analog channels, full QAM digital loading.

Transmitter Interfaces
RF Input Connector

F-type.

Optical Output Connector

SC/APC std, FC/APC opt,
front or rear panel.

Optical Power Test Jack

0.1V/mW

Laser Current Test Jack

1V/50mA

NOTES:

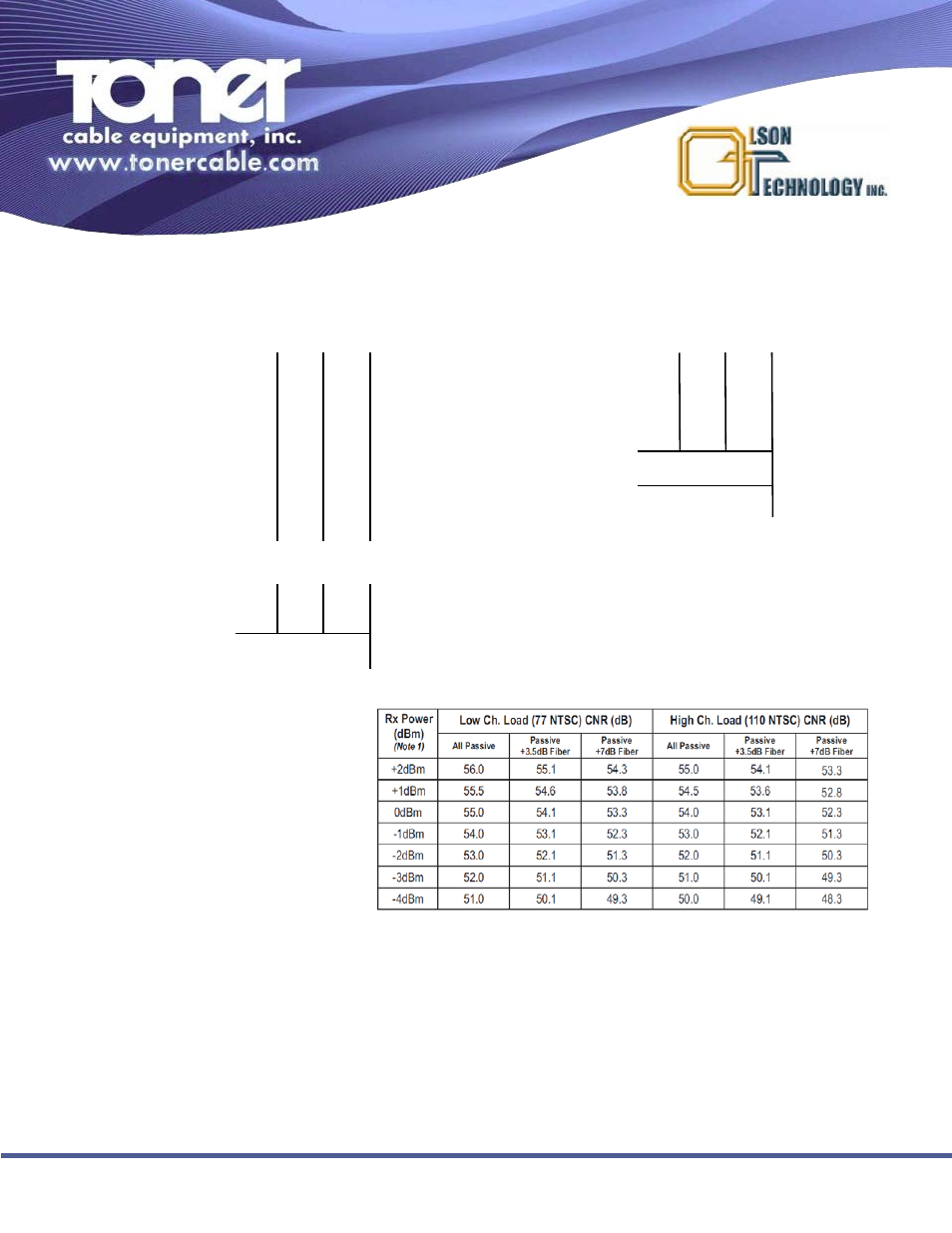

1) For example, a +8dBm transmitter thru 10

dB of passive optical loss with Low Ch. Load
would be looked up as “-2dBm” in the first
column in this case yielding 53.0 dB typical
CNR.

2) Loading refers to total modulated analog

channels loading. Power levels are per
channel peak envelope power.

3) All CNR is measured at +18dBmV/carrier.

Ordering Information
OTOT-1000C-3-XX

Optical Transmitter, 1310 nm, +3 dBm Optical Output

OTOT-1000C-6-XX

Optical Transmitter, 1310 nm, +6 dBm Optical Output

OTOT-1000C-8-XX

Optical Transmitter, 1310 nm, +8 dBm Optical Output

OTOT-1000C-9-XX

Optical Transmitter, 1310 nm, +9 dBm Optical Output

OTOT-1000C-10-XX

Optical Transmitter, 1310 nm, +10 dBm Optical Output

OTOT-1000C-12-XX

Optical Transmitter, 1310 nm, +12 dBm Optical Output

OTOT-1000C-13-XX

Optical Transmitter, 1310 nm, +13 dBm Optical Output

OTOT-1000C-14-XX

Optical Transmitter, 1310 nm, +14 dBm Optical Output

OTOT-1000C-15-XX

Optical Transmitter, 1310 nm, +15 dBm Optical Output

RF and System Characteristics

Physical Characteristics

RF and System Characteristics

NOTE: The “XX” in the part
numbers specifies the optical
connector type.

SA=SC/APC; FA + FC/APC
