F Connectors

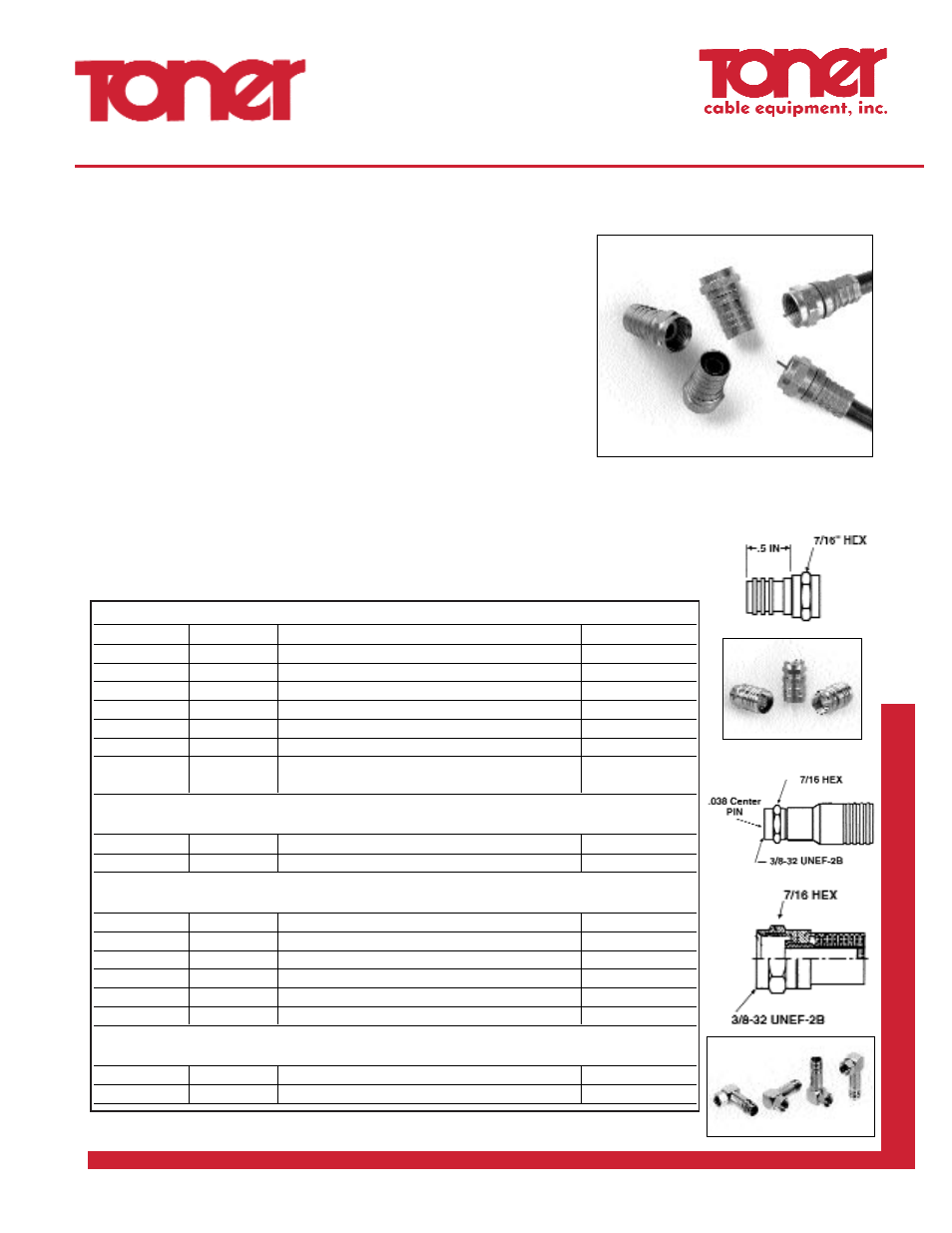

Standard Hex Crimp One Piece F Connectors
Model
Cable size
Application
Hex Crimp size
F59-290
RG-59
Standard up to 67% braid
0.324''
F59-312
RG-59
90% braid, Trishield and Quadshield
0.324''
F59-342
RG-59
Double 90% headend cable
0.324''
F56-324
RG-6
Standard up to 67% braid
0.324''
F56-342
RG-6
90% braid, Trishield and Quadshield
0.324''
F7-413
RG-7
Standard up to 67% braid
0.410''
F11-ALM
RG-11
Standard up to 67% braid. One piece
0.475''
connector with .038'' Integral Center Pin
Universal Type F Connectors
F59-UV
RG-59
Any Cable Braid
0.360''
F56-UV
RG-6
Any Cable Braid
0.360''
Plenum Cable F Connectors
PL59CS
RG-59
CommScope 2020, 2020K, 2020V
0.260''
PL59TQ
RG-59
CommScope 2022, 2022K, 2022V
0.260''
PL56CS
RG-6
CommScope 2275, 2275K, 2275V
0.260''
PL56QS
RG-6
CommScope 2227, 2227K
0.324''
PL11CS
RG-11
CommScope 2285K
0.470''
PL11QS
RG-11
CommScope 2287K
0.470''
90° Universal Type F Connectors
F59-90-UV
RG-59
Any Cable Braid
0.360''
F56-90-UV
RG-6
Any Cable Braid
0.360''
• Quality Plating
Provides maximum corrosion protection
• Annealed ring
Provides easy crimp with maximum holding power without
rupturing
• Hex crimp design
One-half inch crimp ring with mandrel provides secure grip
and maximum pull strength
• Uses standard .324 hex crimp tool
Uniform O.D. 9.55 mm (.375 inch) on all models, allows
single crimp tool with .324 inch hex dimension (flat to flat)
to be used (mandrel heights may vary with different models;
O.D. is constant)
• One piece attached ring
Ensures even distribution of pressure, thus eliminating shield fatigue
caused by flexing or tension cable. Attached ring construction provides
excellent shielding and prevents RF leakage
One-Piece F Connectors with Attached Rings for RG-59, RG-6, RG-7 & RG-11 Cables
