Features & Benefits
x
One-Way Operation 40 to 1000 MHz
x
Discrete Push-Pull Amplifier Stages
x
Built-in Variable Gain Control
x
Surface Mount Technology

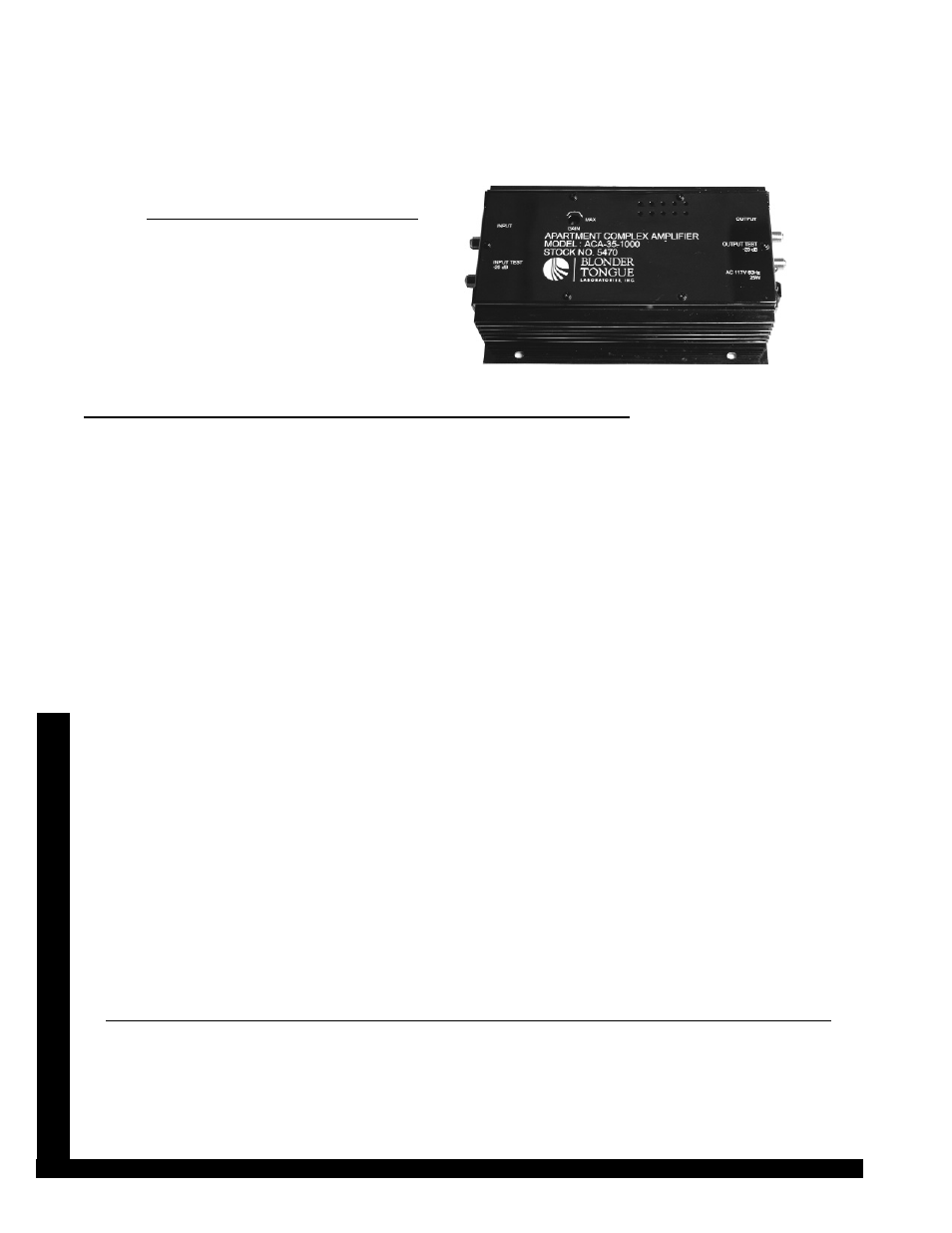

The ACA-35-1000 is an eco-
nomical 1 GHZ indoor CATV RF
distribution amplifier, designed
for RF distribution systems,
such as apartment complexes,
hospitals, schools, prisons, and
hotels. The ACA-35-1000
amplifier has 35 dB of opera-
tional gain and has a gain con-
trol range of 16 dB. These
amplifiers employ push-pull dis-
crete amplifier stages with sur-
face mount technology. The
ACA -35-1000 is housed in a
compact, aluminum chassis
that provides excellent heat dis-
sipation. The amplifier is pow-
ered via an internal 117 VAC
power supply.
Ordering Information
Model Stock
No.
Description
ACA-35-1000
5470
Apartment Complex Amplifier, 35 dB, 40-1000 MHz, Push-Pull Discrete
ACA 35-1000 Broadband CATV Distribution Amplifier
Specifications
RF
Frequency Range:
40-1000 MHz
Channel Loading:
70
Flatness: ±1.00
dB
Gain: 35
dB
Noise Figure (a):
11 dB
Output Level:
+30/+40 dBmV
Input Test Port Level:
-20, ±2 dB
Output Test Port Level:
-20, ±2 dB
Gain Control Range:
18 dB
Composite Triple Beat - CTB (b):
-66 dB
Cross Modulation - XMOD (b):
-65 dB
Second Order (b):
-66 dB
Hum Modulation:
-65 dB
Number Of Hybrids:
discrete
Hybrid Technology:
Push-Pull
Impedance - All Ports:
75 Ohm
Return Loss
Input: 12
dB
Output: 10
dB
Controls (Top Panel)
Gain: Control
Indicators
Power ON:
Red LED
General
Power Requirements
Voltage (c):
117, ±10% VAC
16 VAC
Frequency: 60
Hz
Power: 15
W
Temperature Range:
0 to +50 °C
Mechanical
Dimensions (LxWxD):7.25 x 6.00 x 1.75 in.
184 x 152 x 44 mm
Weight:
3.63 lbs (1.65 kg)
Connectors (Top Panel)
Power DIN, 5 Pin
RF Input:
Type "F", female
RF Output:
Type "F", female
Output Test Port:
Type "F", female
(a) Measured at full gain with 0 dB slope.
(b) At rated output capability and channel
loading.
