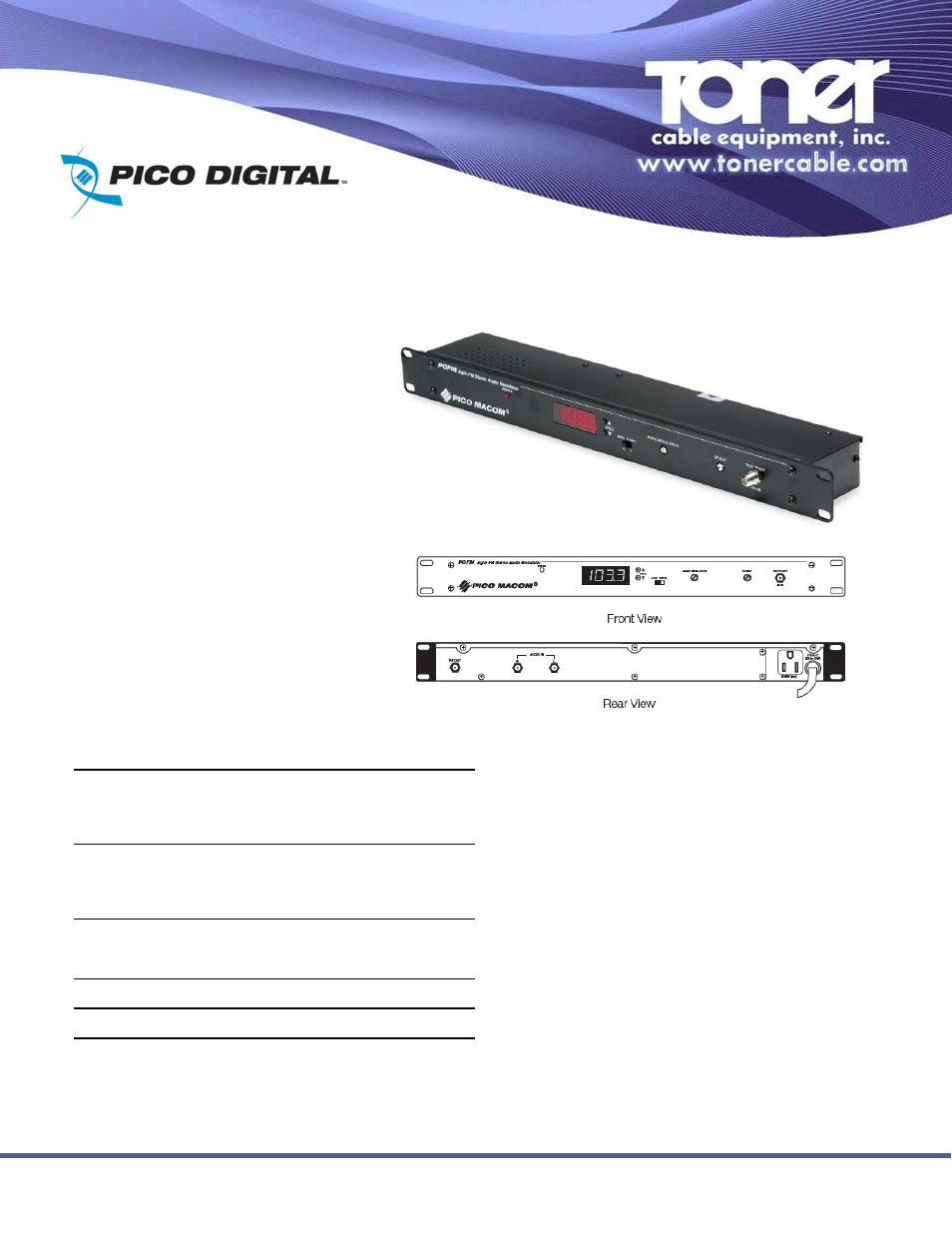

PCFM
Agile FM Stereo Audio Modulator
Features
•
35dBmV minimum adjustable output for
optimum carrier to noise performance
•
Frequency range 88~108MHz (FM
Band)
•
Agile push-button tuning and digital dis-
play for easy frequency selection
•
Non-volatile memory for last channel
recall in the event of power failure
•
Switch-selectable between stereo and
monaural operation
•
Signal to noise ratio >60dB provides
superior sound quality
•
Front panel test point for easy RF level
system monitoring
•
Auxiliary AC outlet for convenience
•
UL Approved
Output Frequency Range
88~108MHz
Tuning
Agile
RF Output Level (min)
35dBmV
Spurious Output
>65dB
Audio Input Type
Monaural/Stereo
AUDIO FREQUENCY
Response
50~15,000Hz
Audio Input Connection
600Ω F-Female Unbalanced
RF Output Connection
75Ω F-Female
Voltage Input 115VAC
POWER OUTPUT
Receptacle
Yes
Dimensions
19˝ (W) x 3˝ (D) x 1.75˝ (H)
Weight
3.6 lbs.
Ordering Information
PCFM
Agile FM Stereo Audio Modulator
SPECIFICATIONS
