Toner Cable IPQT-12 GbE IP-Input Edge QAM Modulation System User Manual
Ipqt-12, Gbe ip-input edge qam modulation system
IPQT-12
GbE IP-Input Edge QAM Modulation System
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
GbE INPUTS
Input Connector Type
2 x RJ-45
Layer 1 Ethernet
GbE (1000Base-T)
Layer 2 Addressing/Protocols
Unicast (IP address
and Port), Multicast
Packetized data types
SPTS/MPTS (ITU13818-1)
ETHERNET COMMUNICATION MANAGEMENT PORT
Input Connector Type
1 x RJ-45
Layer 2 Ethernet
10/100Base-T
Layer 4 Protocol
TCP/IP
QAM-RF OUTPUTS
Output Frequency Range
50-1002 MHz
Channels
Twelve (6 or 8MHz)
QAM Modulation Modes
16, 32, 64,128, 256
QAM Types
ITU-A (DISH/DVB), ITU-B (USA/DCII)
QAM Symbol Rates
2.24~2.98, 4.85 to 7.0 Msps
PCR Re-Stamping
Auto
Channel Plans/Frequencies EIA, HRC, IRC, custom
Output Level (effective, per channel)
>45 dBmV
(combined, 12 channels)
>32 dBmV
Output Attenuation
0-10 dB (0.5 dB step)
Output Level Flatness (50-1002 MHz)
± 0.75 dB
Spurious
> 60 dBc
Output Connector
1 x 75Ω, F-Female
Output Return Loss
>15 dB
GENERAL
INTERNAL AC POWER SUPPLY
Line Voltage
93-254 VAC, 47-63 Hz
Power Consumption
60 W
EXTERNAL DC POWER BACKUP
Voltage 12VDC±5%
Current
< 4 A.
Ordering Information
IPQT-12 GbE IP-Input Edge QAM Modulation System
X-PS
External Redundant Power Supply
Features
•
Accepts a GbE IP input from
Technicolor COM100 systems
and other clear or pre-
encrypted sources
•
Two RJ45 inputs support
redundant IP input, dual
sourcing, or loop through
•
Supports up to 12 QAM-RF
channels form 50 to 1002MHz
organized as 3 independent groups of 4 channels
•
Provides a 10/100Base-T Ethernet port for configuration, control and monitoring
•
Integrated web server allows local or remote access using standard PC internet browser and provides simple,
easy navigation of all IPQT-12 status and setup parameters
•
Highly integrated 1RU rack mount chassis with support for external DC redundant power
•
Includes EAS override support for clear QAM programming (with third party EAS receivers.)
Specifications

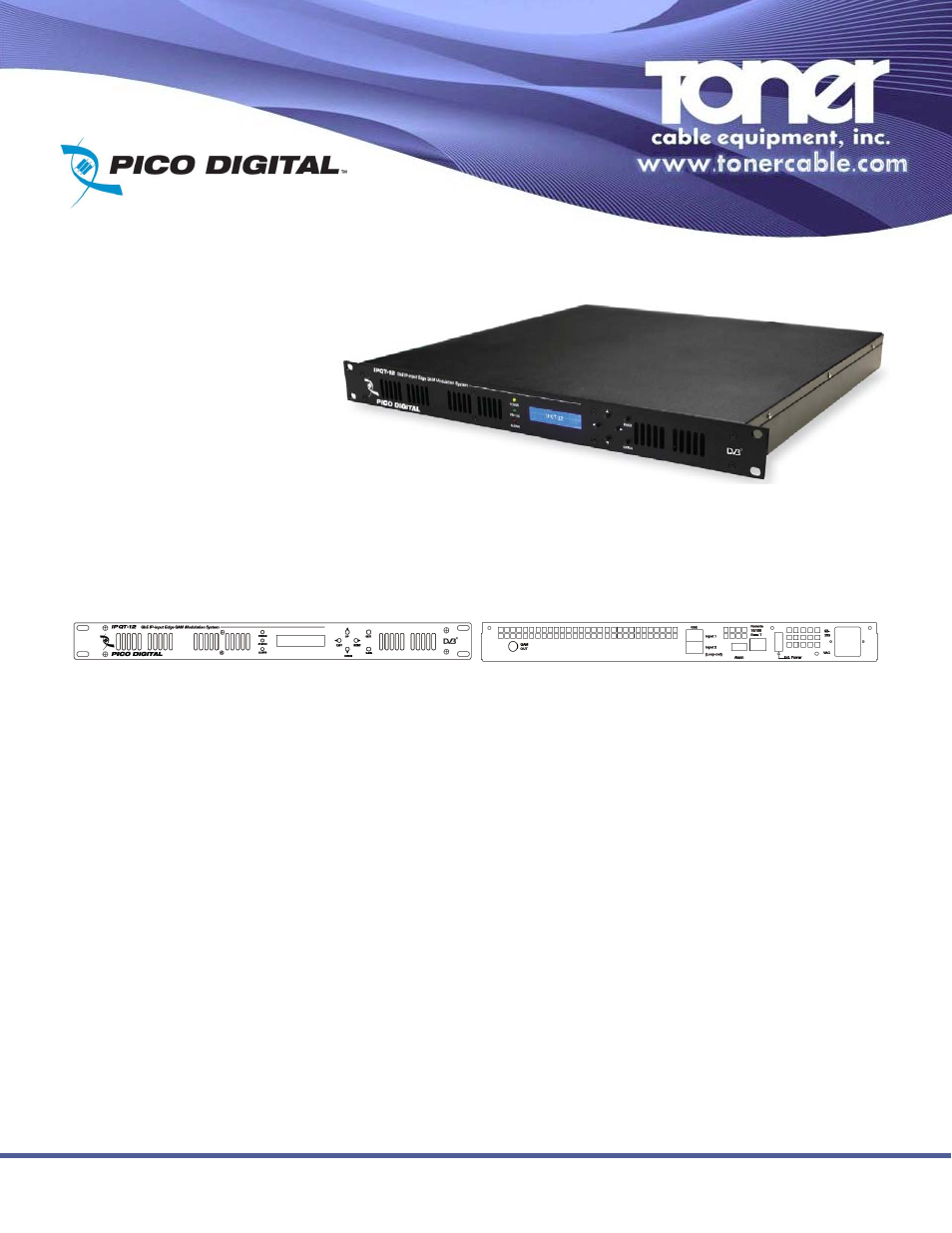

Front View
Rear View
