Toner Cable ACC-18015EXT 180° Adapters - Manual (Page 2)

 Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.
Telephone: Nationwide: Fax: E-mail: Internet:
Ampenol Connector
s & Ada
pter
s
215-675-2053 800-523-5947 215-675-7543 [email protected] http://www.tonercable.com

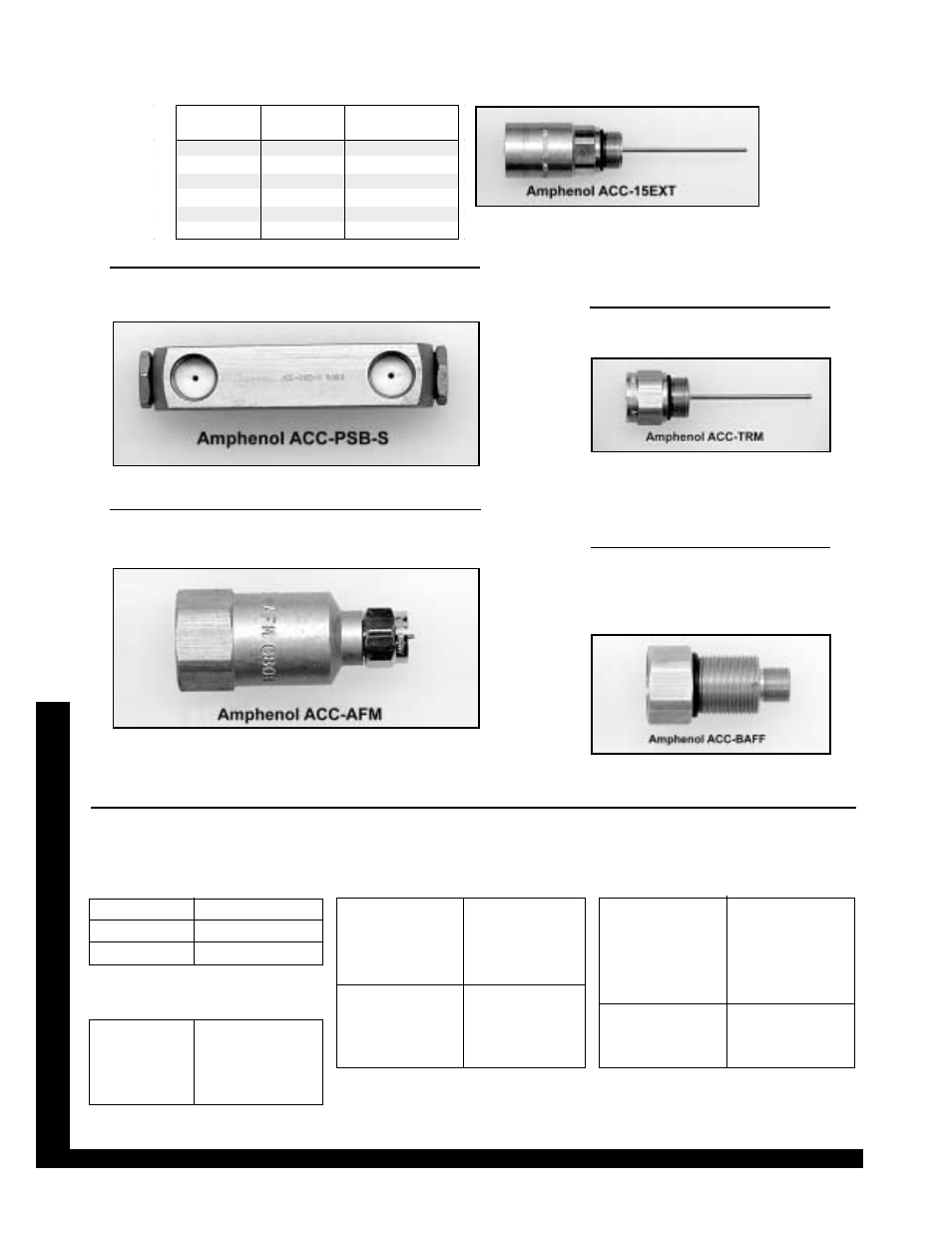

Extension Adapters
Pedestal Splice
KS Female to Female Adapter
Specifications Common to all Connectors & Adapters
Port Terminator
KS Female to
“F” Female Adapter
ACC-TRM
F Female to Pin Connector
ACC-BAFF
Dimensions, inches (mm)
Description A
Straight Extension 1.5 (38)
Straight Extension 3.0 (76)
Straight Extension 4.5 (114)
Straight Extension 6.0 (152)
Straight Extension 9.0 (229)
Straight Extension 12.0 (305)
mm) Amphenol
Number
ACC-15EXT
ACC-30EXT
ACC-45EXT
ACC-60EXT
ACC-90EXT
ACC-120EXT
Straight Extension Adapter
ACC-XXEXT
F Male to Pin Connector
ACC-AFM
ELECTRICAL
Impedance 75 Ohm
Return Loss ≥ 40 dB @ 1.0 GHz
Insertion Loss ≤ 0.2 dB @ 1.0 GHz
MECHANICAL
Mating Pin type has standard
5/8-24 UNEF thread.
Full cable retention over
temperature range.
ENVIRONMENTAL
Temperature Range -40°F (-40°C) to
+140°F (+60°C)
Copolymer of Styrene:
-55°C to +85°C
Corrosion Designed to meet
ASTM 368 CASS
corrosion test when
assembled into cable.
MATERIALS & FINISH
Materials
Aluminum 6262 type
Brass Alloys to QQQ-B-626
Plastics To various specifications
O-Rings Ethylene propylene
Finishes
Aluminum Chromate conversion
Brass Nickel plate
