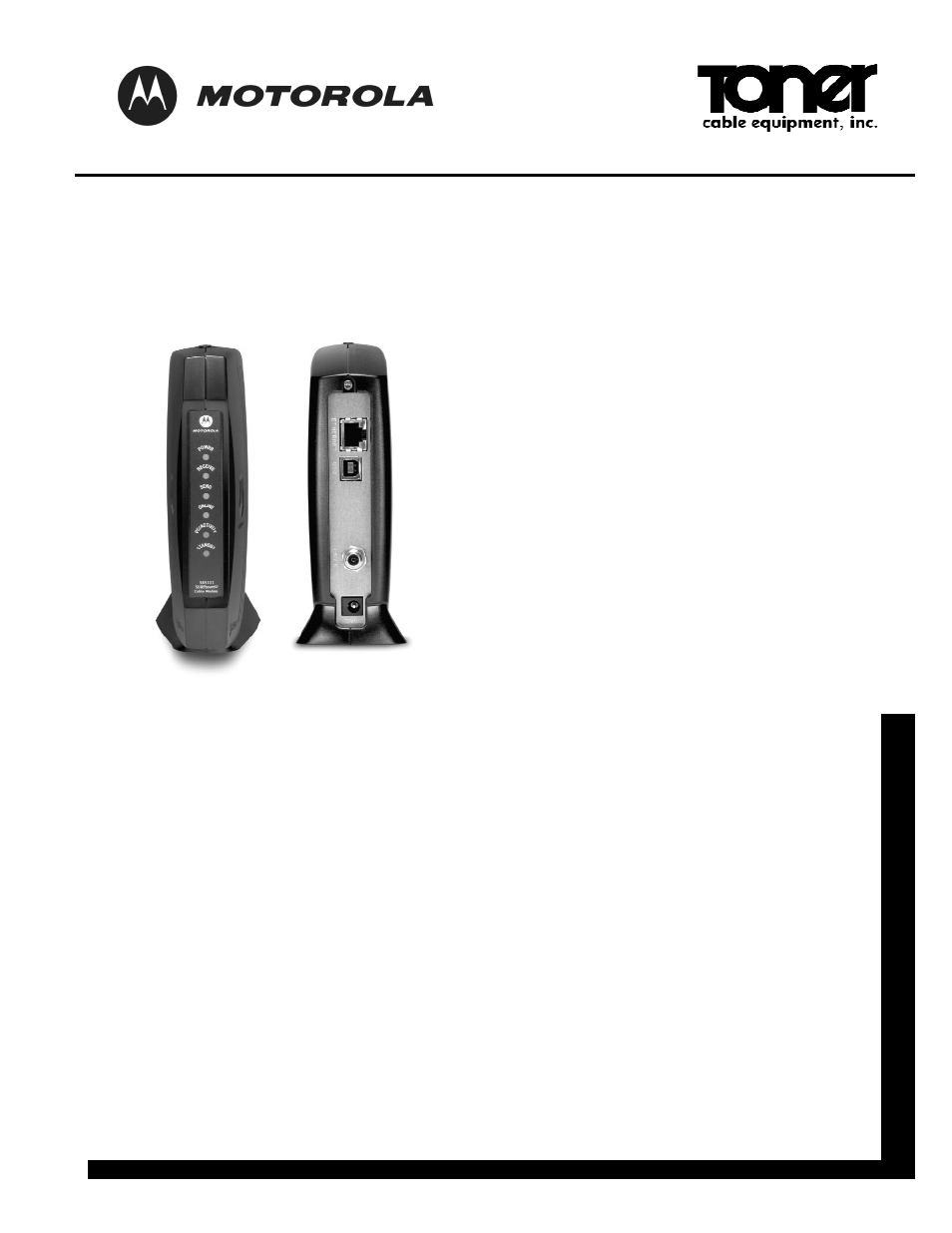

Motorola’s next-generation SB5101 cable modem is powerful, convenient, flexible, simple to install, and easy to use. It
incorporates DOCSIS® 2.0 technology, providing up to three times the upstream capacity of DOCSIS 1.0 or 1.1 — allow-
ing consumers to surf the Internet at as much as 30 Mbps. For a smooth transition, the SB5101 is backwards compatible
with DOCSIS 1.0 and 1.1. Operators can deploy the SB5101 without service interruption, maximizing their current infra-
structure investment while simultaneously offering new value-added services.
©Toner Cable Equipment, Inc.
Specifications Subject To Change Without Notice.
Telephone:
Nationwide:
Fax:
E-mail:
Internet:
09/07
Motor
ola SB5101 Ca
ble Modem
215-675-2053
800-523-5947
215-675-7543
http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA
SB5101 Cable Modem
GENERAL SPECIFICATIONS
Cable Interface
F-Connector, female, 75
Ω
CPE Network Interface
USB, Ethernet 10/100Base-T
Data Protocol
TCP/IP
Dimensions
6.2”H x 2.3”W x 6.0”L
Power
9 W (nominal)
Input Power
North America 105 – 125 VAC, 60 Hz
International 100 – 240 VAC, 50 – 60 Hz
DOWNSTREAM
Modulation
64 or 256 QAM
Maximum Data Rate*
38 Mbps
(256 QAM at 5.361 Msym/s)
Bandwidth 6
MHzp
Symbol Rate
64 QAM 5.057 Msym/s,
256 QAM 5.361 Msym/s
Operating Level Range
–15 to +15 dBmV
Input Impedance
75
Ω (nominal)
Frequency Range
88 to 860 MHz
UPSTREAM
Modulation
8***, 16, 32***, 64***, 128****
QAM or QPSK
Maximum Channel Rate
** 30 Mbps
(64 QAM at 5.120 Msym/s)
Bandwidth
200 kHz, 400 kHz, 800 kHz,
1.6 MHz, 3.2 MHz, 6.4*** MHz
Symbol Rates
160, 320, 640,
1280 and 2560 and 5120*** ksym/s
Operating Level Range
A-TDMA
+8 to +54 dBmV (32 QAM, 64 QAM)
+8 to +55 dBmV (8 QAM, 16 QAM)
+8 to +58 dBmV (QPSK)
S-CDMA
+8 to +53 dBmV (all modulations)
Output Impedance
75
Ω (nominal)
Frequency Range
5 to 42 MHz (edge to edge)
ENVIRONMENTAL
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature –30 °C to 80 °C (–22 °F to 176 °F)
Operating Humidity
5 to 95% R.H. (non-condensing)
*
Actual speeds will vary, and are often less than the maximum possible. Data trans-
mission speed is approximate and depends on the configuration and capacity of your
network, as well as the amount of traffic on the network.
**
Actual data throughput will be less due to physical layer overhead (error correction
coding, burst preamble, and guard interval).
*** With A-TDMA or S-CDMA enabled CMTS.
**** With S-CDMA enabled CMTS.
Prepare yourself to experience the Internet without limits and put all the power of
broadband to work for you with a Motorola cable modem!
HIGHLIGHTS INCLUDE:
Compatible with Windows®, Macintosh®, and
Unix® computers
DOCSIS® 1.1 and 2.0 Certified
10/100Base-T Ethernet (RJ-45) and USB highspeed
data ports
Ethernet and USB cables included
Installation Assistant program on CD-ROM guides
you through installation on the PC
Top-mounted Standby switch for increased security
Front-panel LEDs indicate status and simplify trou-
bleshooting
User-friendly online diagnostics page
Supports standard Internet software
Supports up to 63 computers on a single Internet
connection (additional networking hardware
required)
Remote configuration and monitoring from the head-
end using SNMP and TFTP
Stylish and space-saving enclosure
Multi-language User Guide on CD-ROM
