Inputs
Transport Stream Inputs (Standard)
Dual port Gigabit Ethernet input with two
Electrical Ethernet ports (RJ45)
ASI transport stream, two input ports
Reference Inputs
HSYNC: two redundant input ports
Outputs
Transport Stream Outputs (Standard)
Gigabit Ethernet: two Electrical Ethernet ports
ASI transport stream, four output ports
Reference Outputs
HSYNC, two redundant output ports
Control
Two 10/100 BaseT Ethernet ports for Control
and additional two 10/100 BaseT ports for CA
interfacing
Control and set-up via nCompass Control
Multiplexing
From one to eight independent multiplexed
outputs from a single unit
Multiple input and output data ports
Transport stream rates up to 250 Mbps
Up to 8192 PIDs supported per output TS
Full PID remapping
Input component tracking
PID monitoring
MPTS and SPTS support
Removal of ±60 mS of IP network jitter for
each incoming TS
Support for IGMP v3 protocol
Reflex Statistical Multiplexing of MPEG-2 SD
and HD
Reflex statistical multiplexing of MPEG-4 AVC
SD and HD
Supports up to 24 different Simulcrypt DVBCA Diagnostics
Monitoring and redundancy via nCompass
Control by Ericsson
Remote monitoring and diagnostics via SNMP
Physical and Power
Dimensions (W x D x H)
440 x 543 x 89 mm (17.5” x 21.5” x 2RU)
Approximate Weight
9 kg (20 lbs)
Power Input
AC wide ranging 100 VAC to 120 VAC or 220
to 240 VAC
50 Hz to 60 Hz nominal
Power Consumption
80 Watt nominal (without any options fitted)
Environmental Conditions
Operating Temperature
0°C to 45°C (32°F to 113°F)
Relative Humidity
5% to 90%
Specifications Subject To Change Without Notice Rev 10-11 ©Toner Cable Equipment, Inc.
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
SOFTWARE OPTIONS
Additional Multiplexed Output
(MX8400/SWO/MUX, FAZ 101 0114/8)
• Software license to enable each additional independent multiplexed
output transport stream
DVB CA Simulcrypt Base and Additional TS Options
(MX8400/SWO/DVBCA (FAZ 101 0114/6),
MX8400/SWO/DVBCA/EXT (FAZ 101 0114/7))
• Software licenses to enable the DVBCA Simulcrypt support
BISS Base and Additional TS Scrambling Options
(MX8400/SWO/BISS (FAZ 101 0114/16),
MX8400/SWO/BISS/EXT (FAZ 101 0114/33))
• Software licenses to enable BISS Scrambling
SFN Adaptation (MX8400/SWO/SFN, FAZ 101 0114/10)
• Software license to allow each output transport streams configured as
ETSI TS 101 191 v1.4.1 compliant SFN adaptor
SMPTE 2022 Pro-MPEG FEC Option Card
(MX8400/SWO/PROFEC/EXT, FAZ 101 0114/9)
• Software license to insert SMPTE 2022-1 and SMPTE 2022-2 Pro-
MPEG FEC on each output stream support
MX8400
Multiplexer
HARDWARE OPTIONS
ASI Option Cards (MX8400/HWO/4ASI (FAZ 101 0114/2) or
MX8400/HWO/8ASI (FAZ 101 0114/3))
• Provides four or eight ASI option ports respectively. Each option card
can be configured as either input or output
SMPTE 2022 Pro-MPEG FEC Option Card
(MX8400/HWO/PROFEC, FAZ 101 0114/5)
• Provides SMPTE 2022-1 and SMPTE 2022-2 Pro-MPEG FEC compli-
ant receiver for error correction on up to 32 input transport streams
GPS Option Card (MX8400/HWO/GPS, FAZ 101 0114/4)
• For multiplexer clock synchronization with an external GPS reference
and providing of 1 PPS reference to SFN adapter
Additional Power Supply (MX8400/HWO/DPS, FAZ 101 0114/34)
• Additional power supply for MX8400/BAS/DPS
SPECIFICATIONS

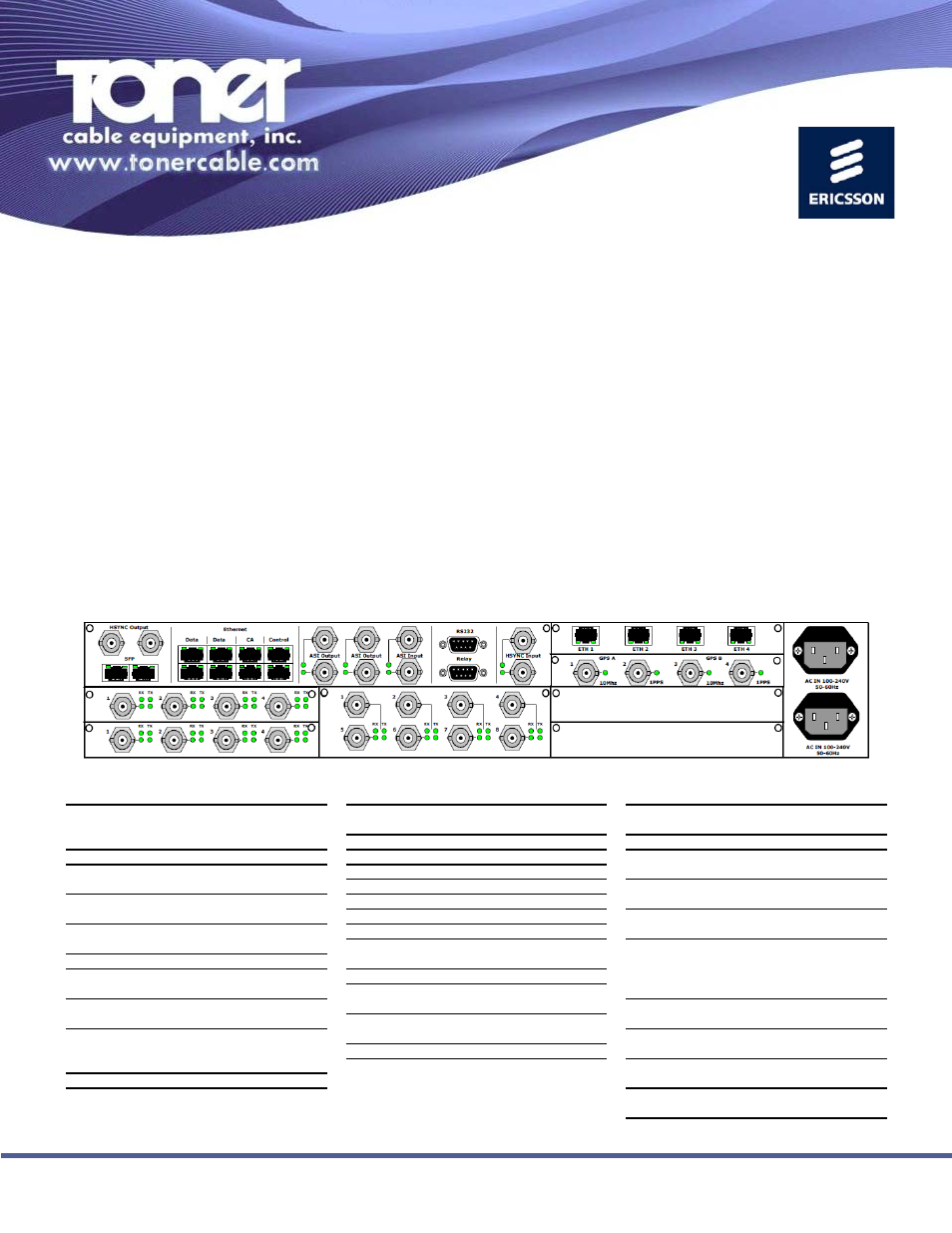

SAMPLE CONFIGURATION
