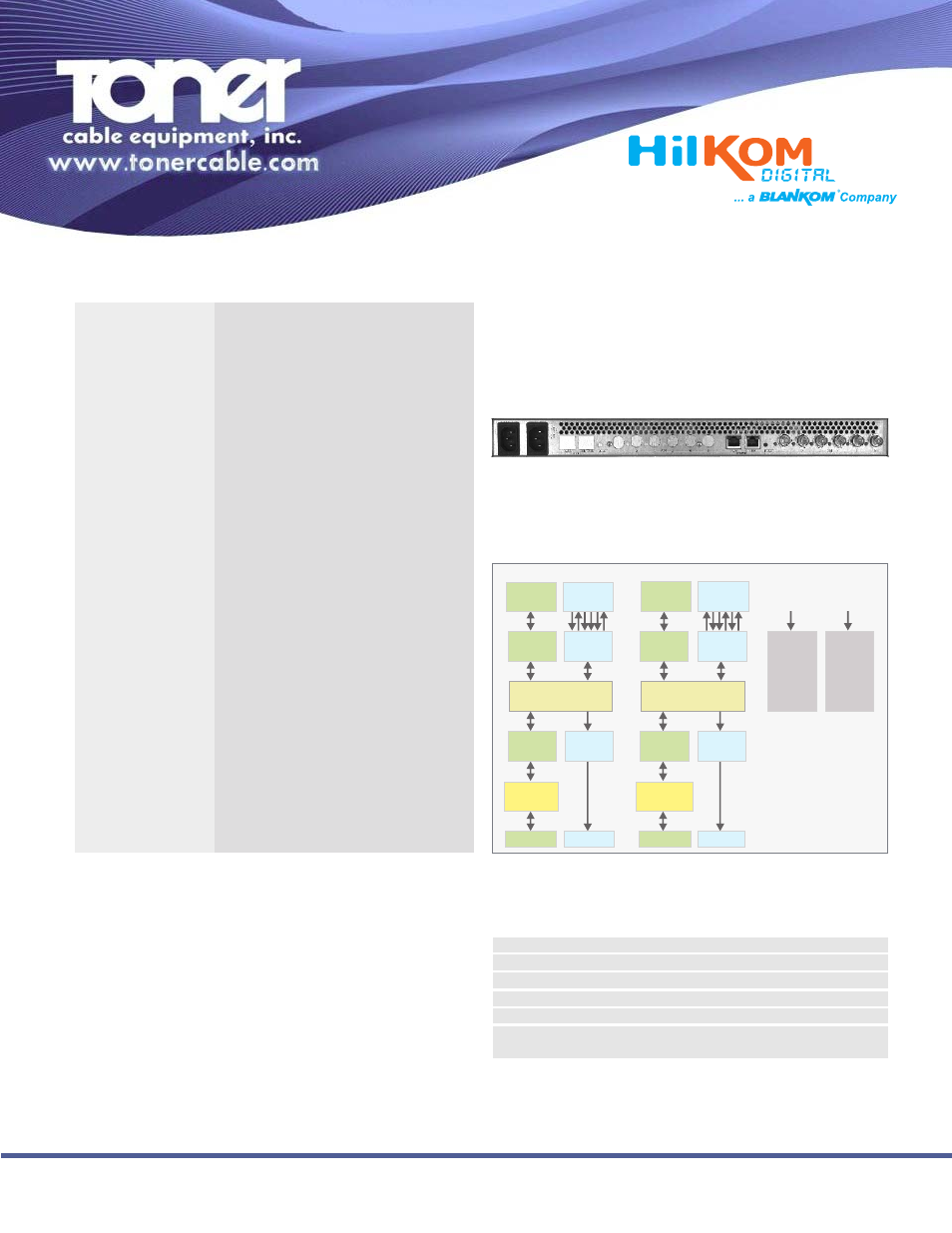

Specifications
',3[[
,3 ⇔ $6,*DWHZD\
Rear View
IP-Input/Output DIP 206:
1 x GigEthernet 1000Base-T
DIP 212:
2 x GigEthernet 1000Base-T
RJ45-Connector
Status-LED for IP-Connection
ASI-Input/Output DIP 206: 1 x 6 ASI-Ports
DIP 212: 2 x 6 ASI-Ports
(according to EN 50083-9)
- Impedance: Connector 75 
- Return loss: > 18 dB
Each ASI-Ports is adjustable
as Input or Output
Status-LEDs for each ASI-Port
License key for each Port
Configuration DIP 206: 1 x 10/100 Mbit Ethernet
DIP 212: 2 x 10/100 Mbit Ethernet
RJ45-Connector
Web server, SNMP agent
Monitoring DIP 206:
1 x ASI-test output for each GbE-Port
DIP 212:
2 x ASI-test outputs for each GbE-Port
Logbook
General Data
Power consumption < 35 W
Mains Voltage 100 to 240 V
AC AC
Redundant Power Supply
Cooling system Stackable devices
EMC EN 50083-2
Safety EN 60950-1
Environmental ETSI EN 300019-1-3 Class 3.1
Weight DIP 206: 2.6 kg
DIP 212: 5.2 kg
Ordering Code
Type: DIP 206 DIP 212
Ordering code: D154.01 D155.01
Number of GbE in-/ outputs: 1 2
Number of ASI in-/ outputs: 6 12
Number of ASI Testports: 1 2
Number of WEB/SNMP ports,
10/100 MBit :
1 2
Block Diagram
MPEG MPEG MPEG MPEG
over IP over ASI over IP over ASI
ASI ASI Power Power
GbE GbE
1-6 1-6 Supply Supply
Processing Unit Processing Unit
GbE  ASI Converter GbE  ASI Co nverter
Redundant
Config.- ASI Config.- ASI
Port Testport Port Testport
Web Server Web Server
SNMP-Agent SNMP-Agent
Configuration Monitoring Configuration Monitoring
