MUX-2A-QAM
ASI Multiplexer 2x ASI/QAM ► QAM
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]

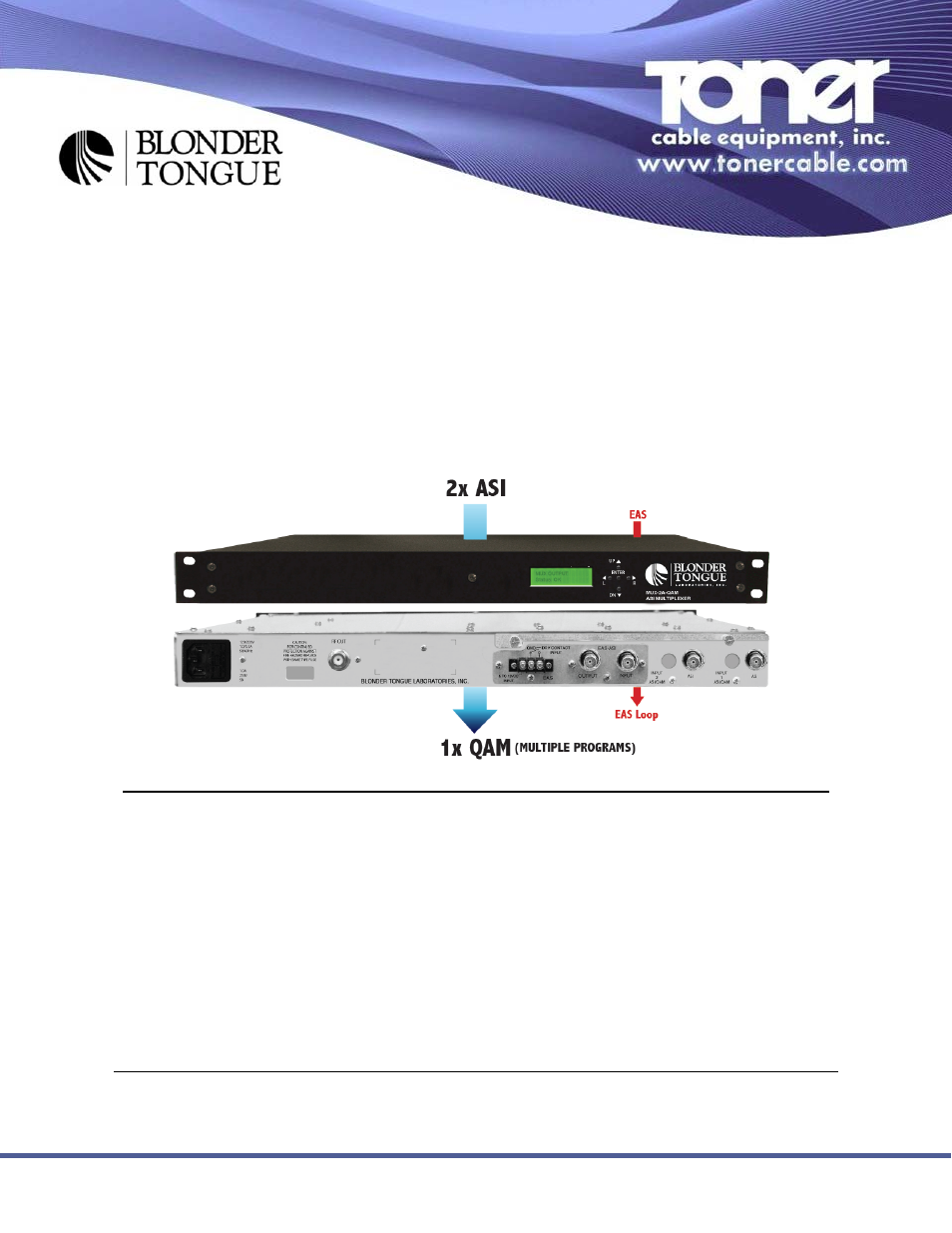

The MUX-2A-QAM is designed to allow CATV operators to multiplex two input sources in ASI format to a
single QAM output channel for delivery over a standard coaxial distribution network.
The MUX-2A-QAM accepts up to two (2) ASI inputs and aggregates them onto one QAM RF output in the
54-864 MHz range. The MUX-2A-QAM provides the capability to filter program streams and to assign
major/minor or a single 4 digit channel number to each.
The MUX-2A-QAM also provides Emergency Alert System (EAS) program switching through a third ASI
input and terminal block contacts. The EAS input source can be shared among multiple MUX-2A-QAM
units by looping it from one to another unit without the need for external splitting and amplification.
Features
• Supports MPEG-2 Transport Stream Tables: PAT, PMT, MGT, RRT, STT, & VCT
• Re-maps duplicate PIDs, Program Numbers, and Minor Channel Numbers
• Allows sharing of the EAS input source among multiple units
• User-defined major/minor or 4-digit CATV virtual channels
• User-defined channel names
• EAS input replaces up to 12 program streams
• Supports PID filtering & PSIP re-assignment
• Provides QAM 256 Output at 38.8 Mbps
• Accepts ASI input as EAS input source
• User-defined QAM Output Parameters
Ordering Information
Model Stock # Description
MUX-2A-QAM 6505 Multiplexer, 2x ASI Inputs, Agile 54-860 MHz QAM output, EAS capable
