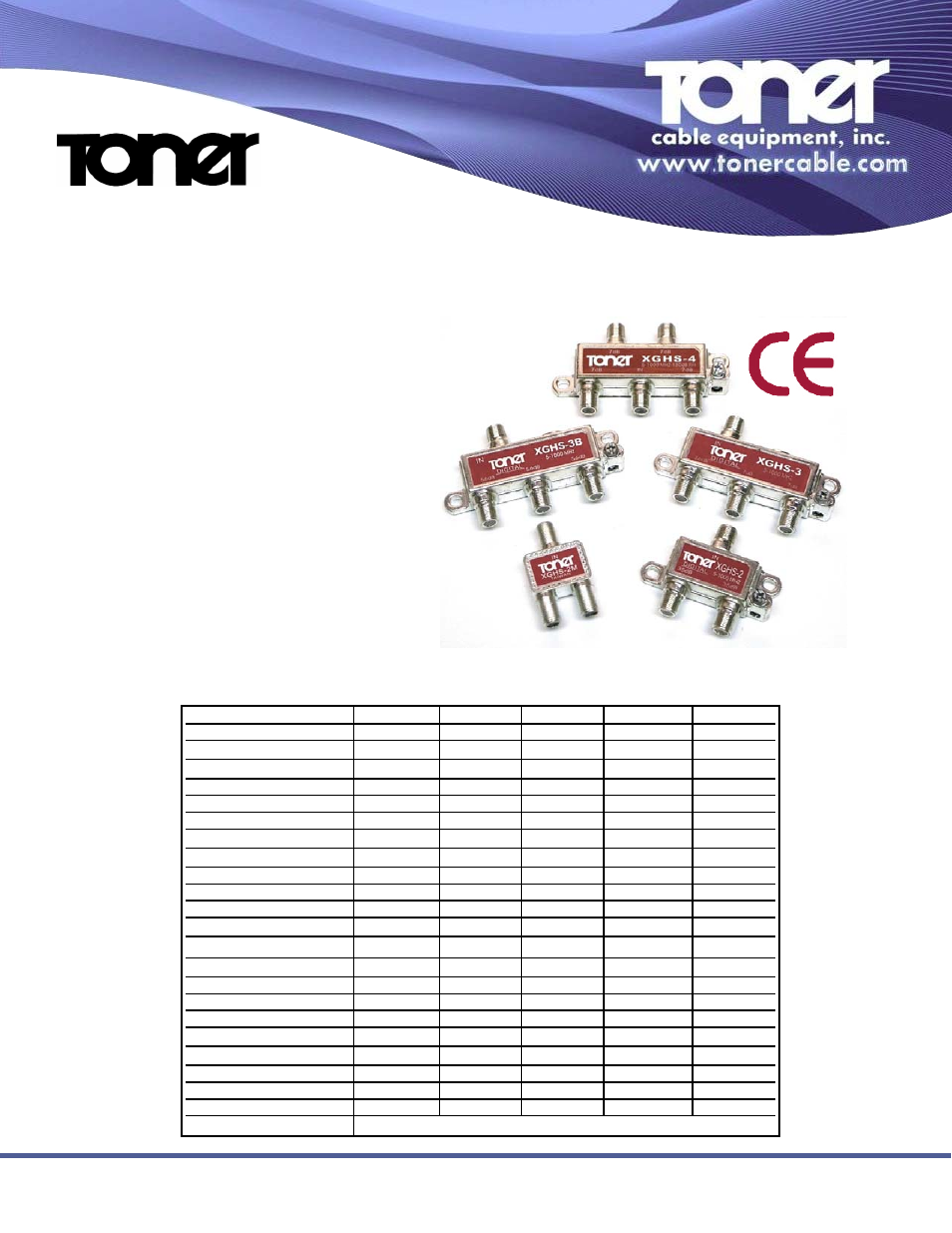

Toner Cable XGHS-2M 1 GHz 2 Way Digital Mini Drop Splitter - Manual

XG Series
1 GHz Digital Splitters
2, 3, 4, 6, 8, and 12 Way 1 GHz Drop Splitters
Horizontal Model Specifications
XGHS-2M XGHS-2 XGHS-3 XGHS-3B XGHS-4
Bandwidth 5 MHz-1 GHz 5 MHz-1 GHz 5 MHz-1 GHz 5 MHz-1 GHz 5 MHz-1 GHz
INSERTION LOSS (Max)
5-15 MHz 3.6 3.6 3.6 / 7.0 5.5 7.0
15-40 MHz 3.6 3.6 3.6 / 7.0 5.5 7.0
40-550 MHz 3.6 3.6 3.6 / 7.2 5.9 7.2
550-1000 MHz 3.9 3.9 3.9 / 7.9 6.5 7.9
ISOLATION (Min)
5-15 MHz 35 40 40 40 40
15-40 MHz 35 40 40 40 40
40-550 MHz 30 35 30 28 30
550-1000 MHz 30 30 30 28 30
RETURN LOSS (Min)
INPUT
5-15 MHz 22 25 25 30 24
15-40 MHz 25 25 25 30 24
40-550 MHz 22 22 22 22 22
550-1000 MHz 22 22 22 22 22
OUTPUT
5-15 MHz 22 30 25 30 25
15-40 MHz 30 30 30 30 30
40-550 MHz 22 22 22 22 22
550-1000 MHz 22 22 22 22 22
INTERMOD DISTORTION -60 dBmV
Digital Drop Splitters
Features
– Digital Ready
– Low Intermod
– Meets or Exceeds SCTE
– Greater than 120 dB RFI
– PCB for Consistent Performance
– Solder Back Design
– Round F Connector, Center
Conductor Contact
