/RXGQHVV/RJJHUV
Specifications
Timecode
Input . . . . . . . . . . . . . . . . . . . . . . LTC via back-panel connector
Communication Interfaces
Ethernet . . . . . . . . . . . . . . . . . . . 1 Ethernet port RJ-45 10/100Base-T connector
USB . . . . . . . . . . . . . . . . . . . . . . 1 USB 2.0 host port
LTC/GPIO . . . . . . . . . . . . . . . . . . . 1 LTC/GPIO connector 15-pin female D-sub
ethernet
Standard . . . . . . . . . . . . . . . . . . . 10/100Base-T conforms to IEEE802.3
Connector . . . . . . . . . . . . . . . . . . RJ-45
Power requirements
Power Connector . . . . . . . . . . . . . 15 VDC, nominal; 11 VDC, minimum;
17 VDC, maximum
Power Consumption . . . . . . . . . . . 25 W, nominal
Over-Voltage Protection . . . . . . . . ±50 VDC, nominal
Mechanical
Dimensions (H x W x D) . . . . . . . . 5.22 x 8.46 x 5.8 in. (13.26 x 21.49 x 14. 73 cm)
Weight . . . . . . . . . . . . . . . . . . . . 5 lbs (2.27 kg)
environmental
Operating Temperature . . . . . . . . . 32° to 122° F (0° to 50° C)
Storage Temperature . . . . . . . . . . -22° to 149° F (-30° to 65° C)
Humidity (non condensing) . . . . . . Operating: 20% to 80%
Non-operating: 5% to 90%
Transportation . . . . . . . . . . . . . . . 24 in. (9.5 cm) impact drop survivable in original
factory packaging
Altitude (Operating) . . . . . . . . . . . 6562 ft (2000 m)
Pollution Degree . . . . . . . . . . . . . 2
Standard Accewwssories . . Installation and operation handbook on CD
Breakout connector for LTC/GPI
1 power cord
1 power supply assembly
orDerinG inForMation
OPTIOnS
LLM-1770 . . . . . . . . . . . . . . . . . Loudness logger and monitor with 4 AES inputs,
headphone output
LLM-OPT-SDI . . . . . . . . . . . . . . . SD-SDI input option for the LLM-1770; adds
embedded audio from SD, HD or 3 Gb/s SDI
sources
LLM-OPT-SDI-F . . . . . . . . . . . . . SD-SDI input option for the LLM-1770; adds
embedded audio from SD, HD or 3 Gb/s SDI
sources, field upgrade
DRT-4 . . . . . . . . . . . . . . . . . . . . Dual rackmount adapter; mount 1 or 2 LLM-
1770, CMN-41, CMN-MV in a 19 in. (48.2 cm)
equipment rack, 1RU high
BLK-4 . . . . . . . . . . . . . . . . . . . . Blank panel for unused side of a DRT-4
PTC-4 . . . . . . . . . . . . . . . . . . . . Desktop case with tilt bail
ETHERNET
POWER 11 - 17 VDC
LTC/GPI
SDI AES IN
OUT IN 4 3 2 1

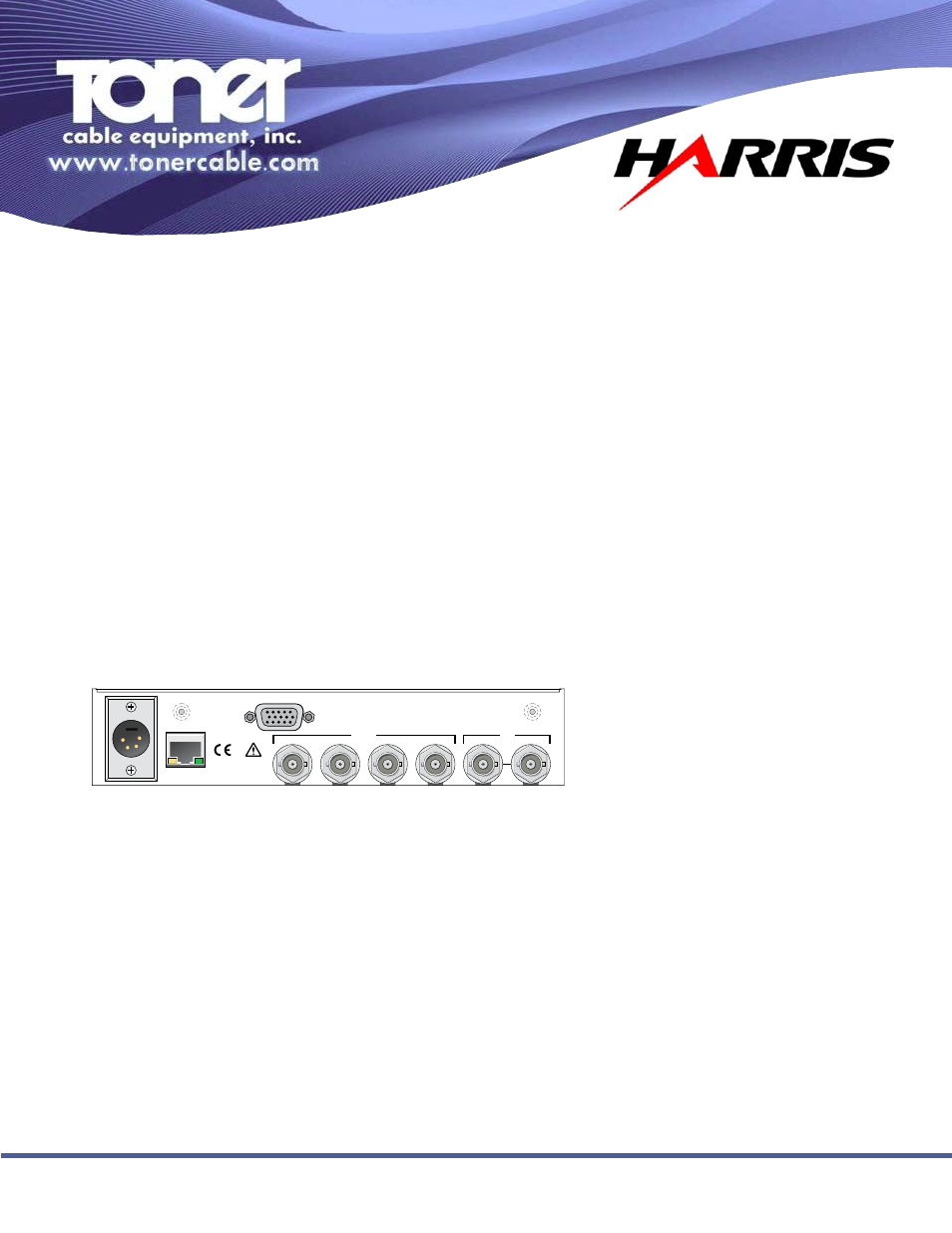

iMaGes/DiaGraMs
Back Panel
