Toner Cable 065-* Media Converter Systems User Manual
Signamax media con ve rter systems

SPECIFICATIONS
Telephone:
Nationwide:
Fax:
E-mail:
Internet:
11/05
Signamax Media Con
ve
rter Systems
215-675-2053
800-523-5947
215-675-7543
http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA

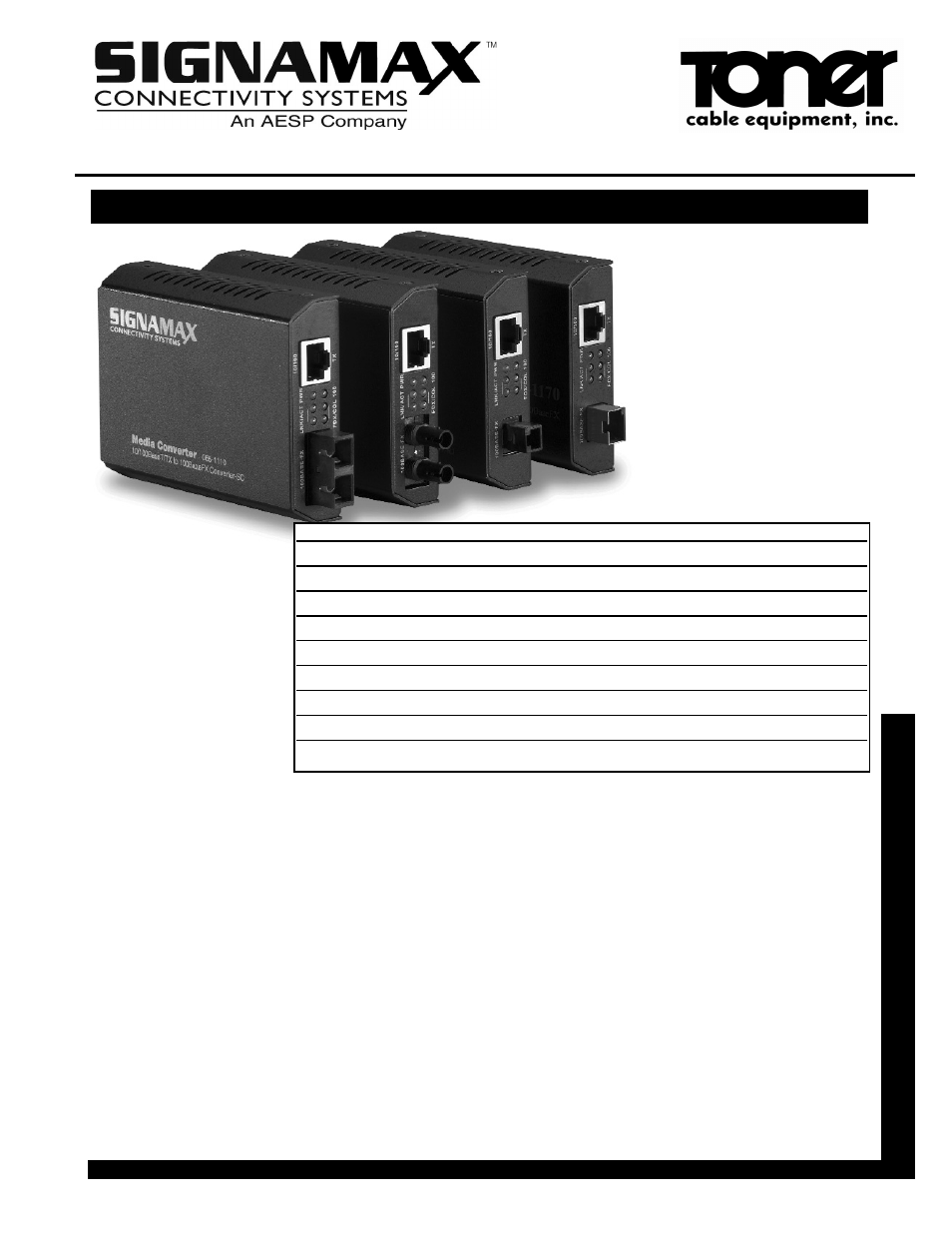

Switching Converters with Link Fault Signaling
Media Converter Systems
PART NO.
DESCRIPTION
FIBER TYPE
065-1100
10/100BaseT/TX to 100BaseFX Converter
ST Multimode
065-1110
10/100BaseT/TX to 100BaseFX Converter
SC Multimode
065-1170
10/100BaseT/TX to 100BaseFX Converter
VF-45 Multimode
065-1172
10/100BaseT/TX to 100BaseFX Converter
MT-RJ Multimode
065-1174
10/100BaseT/TX to 100BaseFX Converter
LC Multimode
065-1120
10/100BaseT/TX to 100BaseFX Converter
SC Singlemode (15km span)
065-1120ED
10/100BaseT/TX to 100BaseFX Converter
SC Singlemode (40km span)
065-1120XLD
10/100BaseT/TX to 100BaseFX Converter
SC Singlemode (75km span)
065-11DINMT
DIN rail mounting bracket for 065-11xx series media converters
APPLICABLE STANDARDS
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3u 100BaseFX
FIXED PORTS
1 Auto-MDIX twisted-pair port meeting
IEEE 802.3
10BaseT & IEEE 802.3u 100BaseTX
standard specifications; Category 5 or bet-
ter cable, 100 meters maximum distance
for 100BaseTX, Category 3 or better
cable, 100 meters maximum distance for
10BaseT
plus
1 fiber optic port meeting IEEE 802.3u
100BaseFX standard specification;
62.5/125 or 50/125 micron multimode fiber
optic cable, 2,000 meters maximum dis-
tance
or
1 fiber optic port meeting IEEE 802.3u
100BaseFx standard specification; 9/125
micron singlemode fiber optic cable, span-
ning: 15 kilometers maximum distance
(Model 065-1120)
or
40 kilometers maximum distance (Model
065-1120ED)
or
75 kilometers maximum distance (Model
065-1120XLD)
PERFORMANCE
Latency: < 4.2
µs (LIFO)
Throughput @ 100Base: 148,809 pps (64-
byte packets)
LED INDICATORS
Per Unit - Power status, RJ-45 port speed
Per Port - LNK/ACT, FDX/COL
Six LEDs total
PHYSICAL CHARACTERISTICS
Case dimensions: 4.33”L x 3.19”W x 0.9”H
(110mm x 81mm x 23mm)
Fiber connector protrusion varies with
model.
Weight: 0.33 pounds (150 grams)
USB power connector on the rear panel
optionally powers converter from comput-
er’s USB port.
SAFETY UL Listed
