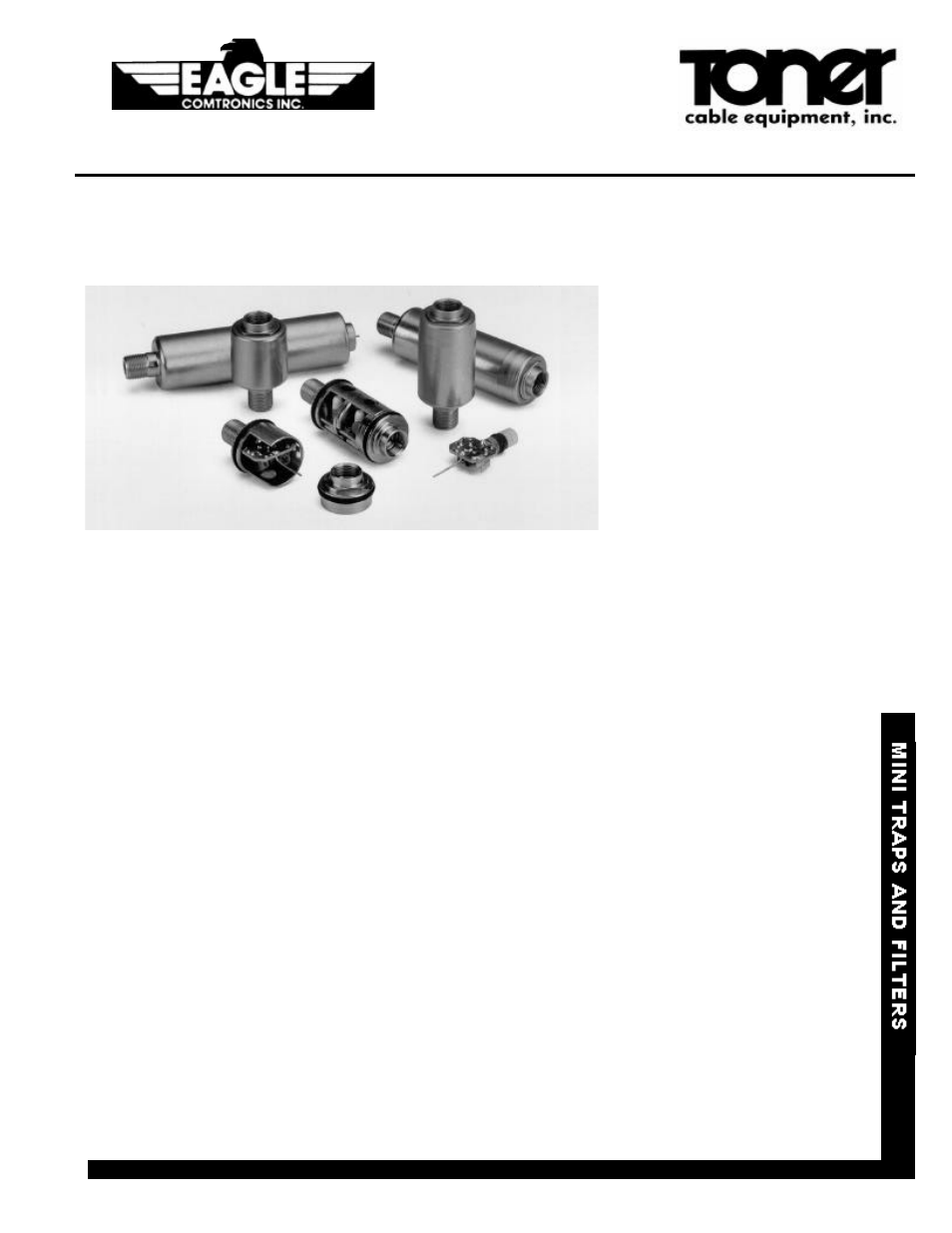

MINI TRAPS and FILTERS

EAGLEelite

 SERIES

Notch Filters, Tier Traps, and Noise Suppression Filters

Pay Television Single Channel

Notch Filters

EMN Negative Traps

EMD Positive Traps

Negative traps block the video sig-
nal from entering the subscriber's
home. Positive traps decode a
scrambled channel. Negative and
positive traps are the world's most
widely accepted method for pay
television security.

Single Channel Notch Features
- Small size (1.965") for easier

installation in small lockboxes
and distribution panels

- Wide range of frequencies avail-

able with performance levels up
to 1 GHz

- Very low adjacent channel

insertion loss

- Special, patented circuits pro-

vide superior selectivity for nar-
row bandwidth

- Extraordinary environmental

stability due to patented dome
seal, patented double "D" outer
shield, and technically superior
dual O-ring seals

- Cost effective, economical chan-

nel security with Eagle reliability

Pay Television Multi Channel

Tier Traps

8 Pole: 8MLP, 8MNF, 8MHP

10 Pole: 10MLP,10MNF, 10MHP

Multi-channel tier traps are becom-
ing increasingly more popular to
selectively control, block or access
groups (tiers) of pay television
channels. Traps are designed to
meet a cable operator's specific
requirements and are available in
band reject (NF), lowpass (LP), and
highpass (HP) styles.

Multi Channel Tier Trap Features
- Small size (2.965" for 8 pole

traps, 3.465" for 10 pole traps)
for easier installation in small
lockboxes and distribution panels

- Wide range of frequencies avail-

able with performance levels up
to 1 GHz

- Sharper band selectivity for

reduced filter guardband, espe-
cially at higher frequencies (for
many applications the filters can
attenuate a pay tier without los-
ing any channels in the guard
band)

- Improved attenuation across

wider reject bands permitting

wider pay tier channel groupings

- 10M models offer lifeline combi-

nation of NF and LP filter style in
one package

Return Band Noise Suppression

Filters

EHP, EMHP Highpass Filters

EXSH Window Filters

EMSA Step Attenuators

Highpass Filters

Highpass filters offer a variety of
cut-off frequencies for all frequency
formats. The EHP surface mount is
the smallest highpass filter in the
industry (1.485"). EMHP filters are
available for specialized applica-
tions.

EXSH Window Filters
Window filters are designed for
return band noise suppression but
provide a "window" for addressable
converter pilot carriers.

EMSA Step Attenuators

Step attenuators are used to condi-
tion and balance return signals.
They are available in a variety of
attenuation steps for all frequency
formats. Custom designs for
unique system applications are also
available.

Highpass, Window Filter, and
Step Attenuator Features
- Small size (1.485" for EHP,

1.965" for EMHP) for easier
installation in small lockboxes
and distribution panels

- Wide range of frequencies avail-

able with performance levels up
to 1 GHz
